Chapter 8 Disk Array Configuration Setting (S100/S1100/S1200/S1300/S2100/S2200/S2300)
IV-150
(B) LD window

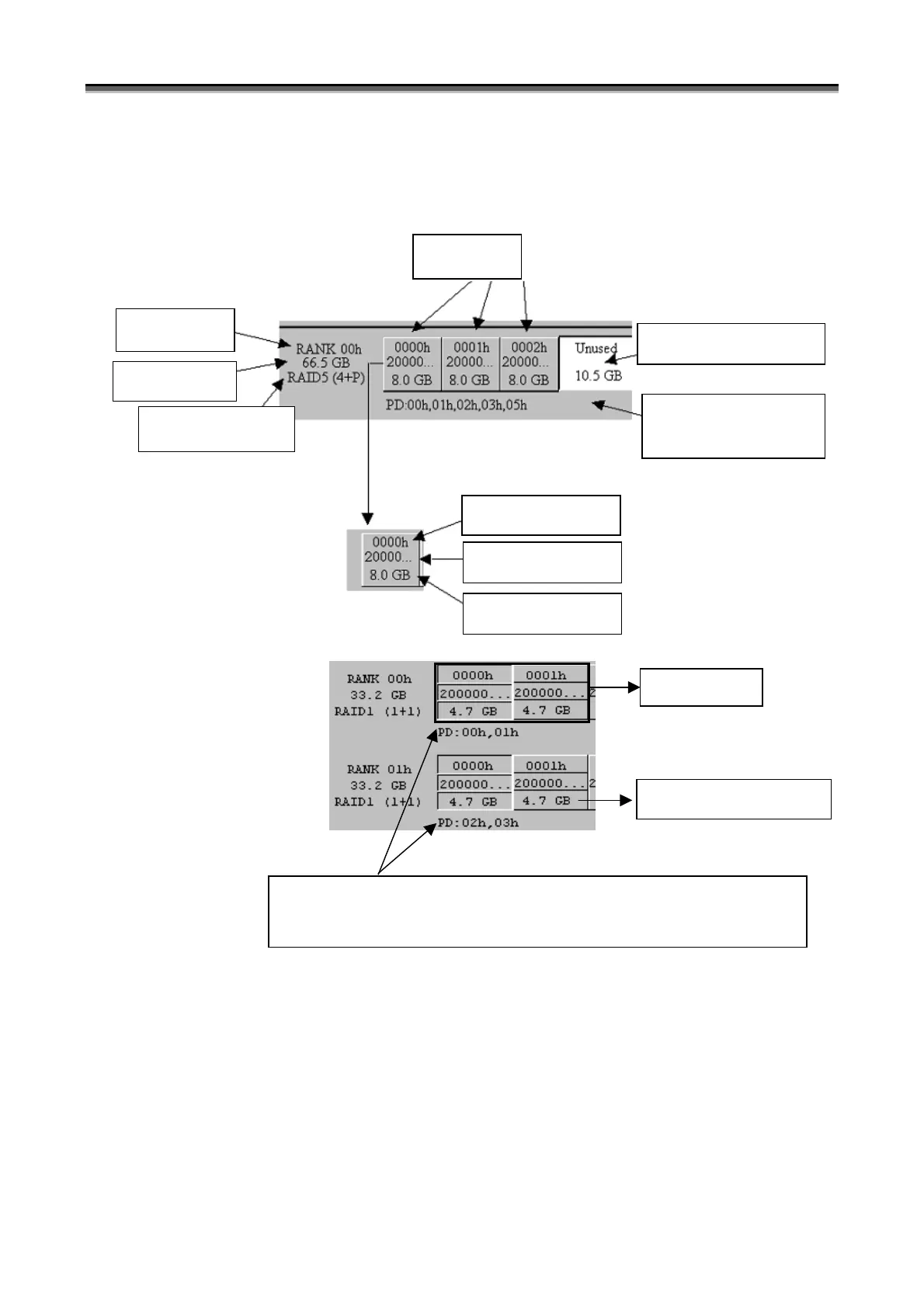

RANKs existing in the selected PD group and the LDs bound in the RANK are displayed. For details of the
display, refer to the diagram below.
Figure 8-46 LD Window
Selecting a logical disk and then displaying the properties will result in outputting the detailed information. For
details of the display, refer to (A) “Properties” of (2) “Operation”.
LD Number
LD Name
LD Capacity
RANK Number
RANK Capacity
RANK’s RAID Type
Logical Disks
Physical Disks
Configuring RANK
Unused Area in RANK
Multiple RANKs
Because LDs are spanning two or more PD groups, if any one of those is selected,
the RANK partitions which configure the LDs are simultaneously selected.
RANK Partition Capacity
To Next Page
