CHAPTER 8 USB FUNCTION

User’s Manual U12978EJ3V0UD

142

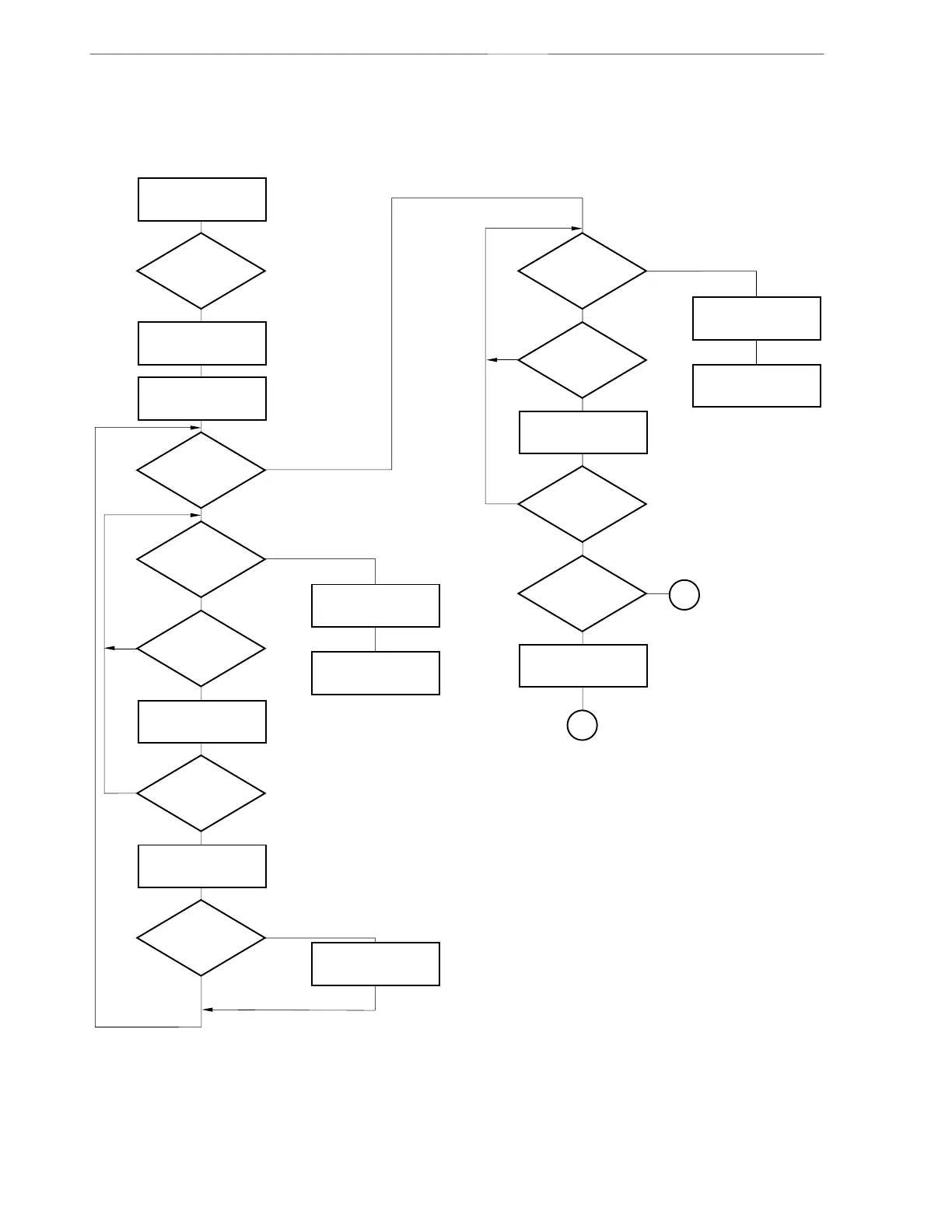

Figure 8-25. Flowchart of Transmit/Receive Pointer Operation (3/7)

(2) Data/Handshake packet reception (1/2)

EOP

Idle state

Set USBPOW to 10H

USBPOB increment

USBPOW increment

Set USBPOB to 00H

Transmit/receive

signal?

USBPOB

overflow?

USBPOW

= 11H?

Does bit stuffing

signal = 1?

USBPOB

overflow?

Does

USBPOW match

DRXCON?

USBPOB increment

Set USBPOW to 70H

Does bit stuffing

signal = 1?

Bit normal write?

HSSTAT = 1?

Data/handshake reception

Set DBYER flag

Set CRC16 execution

start signal

Idle state

Set DBYER flag

Idle state

DBYER: Bit 5 of data/handshake packet receive result store register (DRXRSL)

DRXCON: Data/handshake packet receive byte number counter
