CHAPTER 4 PORT FUNCTIONS

User’s Manual U12978EJ3V0UD

65

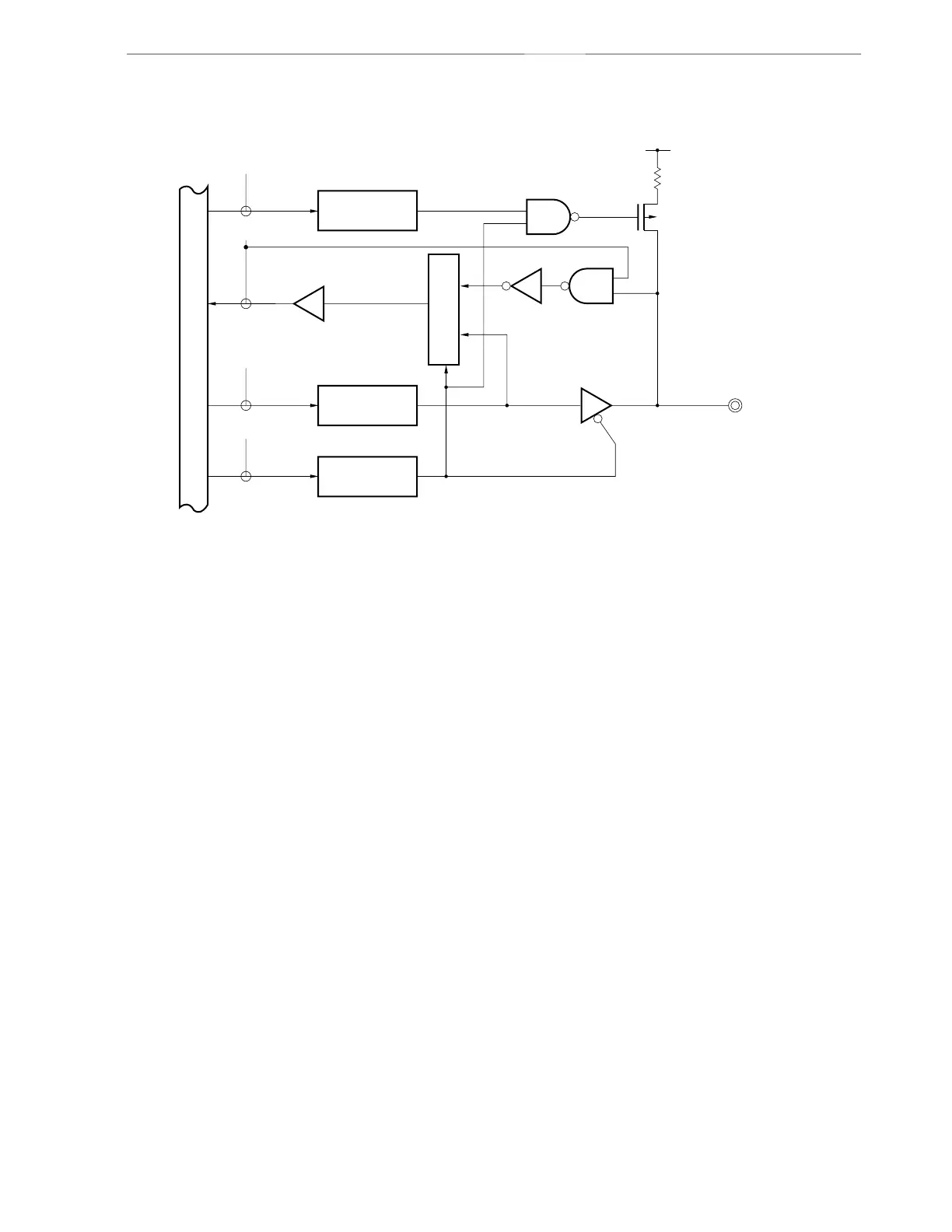

Figure 4-7. Block Diagram of P23 and P24

Internal bus

WRPU0

RD

WR

PORT

WRPM

PU02

Output latch

(P23, P24)

PM23, PM24

VDD0

P-ch

P23, P24

Selector

PU0: Pull-up resistor option register 0

PM: Port mode register

RD: Port 2 read signal

WR: Port 2 write signal
