CHAPTER 13 RESET FUNCTION

User’s Manual U12978EJ3V0UD

187

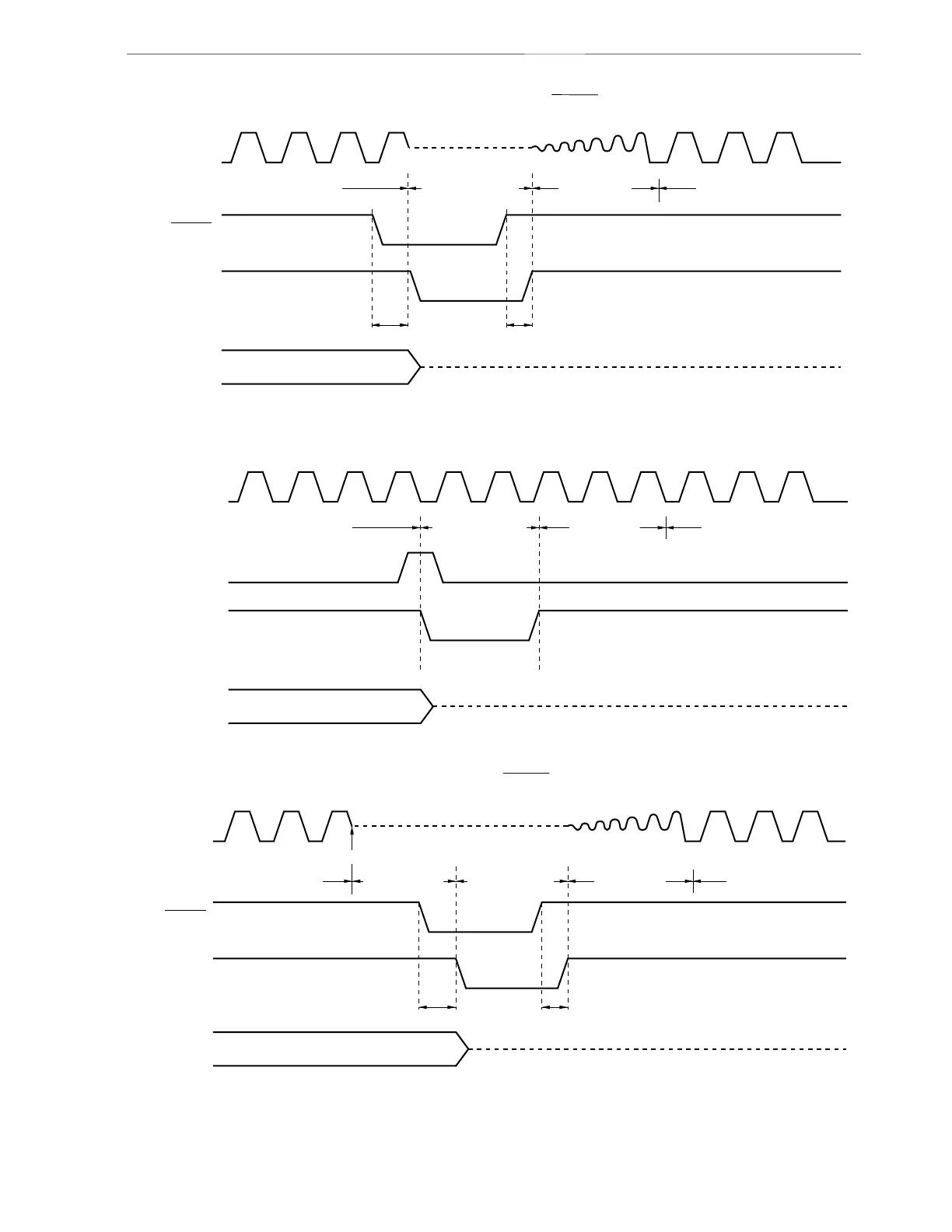

Figure 13-2. Reset Timing by RESET Input

RESET

Internal

reset signal

Port pin

During normal

operation

Delay Delay

Hi-Z

Reset period

(oscillation stops)

Normal operation

(reset processing)

Oscillation

stabilization

time wait

Figure 13-3. Reset Timing by Overflow in Watchdog Timer

Overflow in

watchdog timer

Internal

reset signal

Port pin

Hi-Z

During normal

operation

Reset period

(oscillation stops)

Normal operation

(reset processing)

Oscillation

stabilization

time wait

Figure 13-4. Reset Timing by RESET Input in STOP Mode

RESET

Internal

reset signal

Port pin

Delay Delay

Hi-Z

STOP instruction execution

During normal

operation

Reset period

(oscillation stops)

Stop status

(oscillation stops)

Normal operation

(reset processing)

Oscillation

stabilization

time wait
