CHAPTER 11 INTERRUPT FUNCTIONS

User’s Manual U12978EJ3V0UD

165

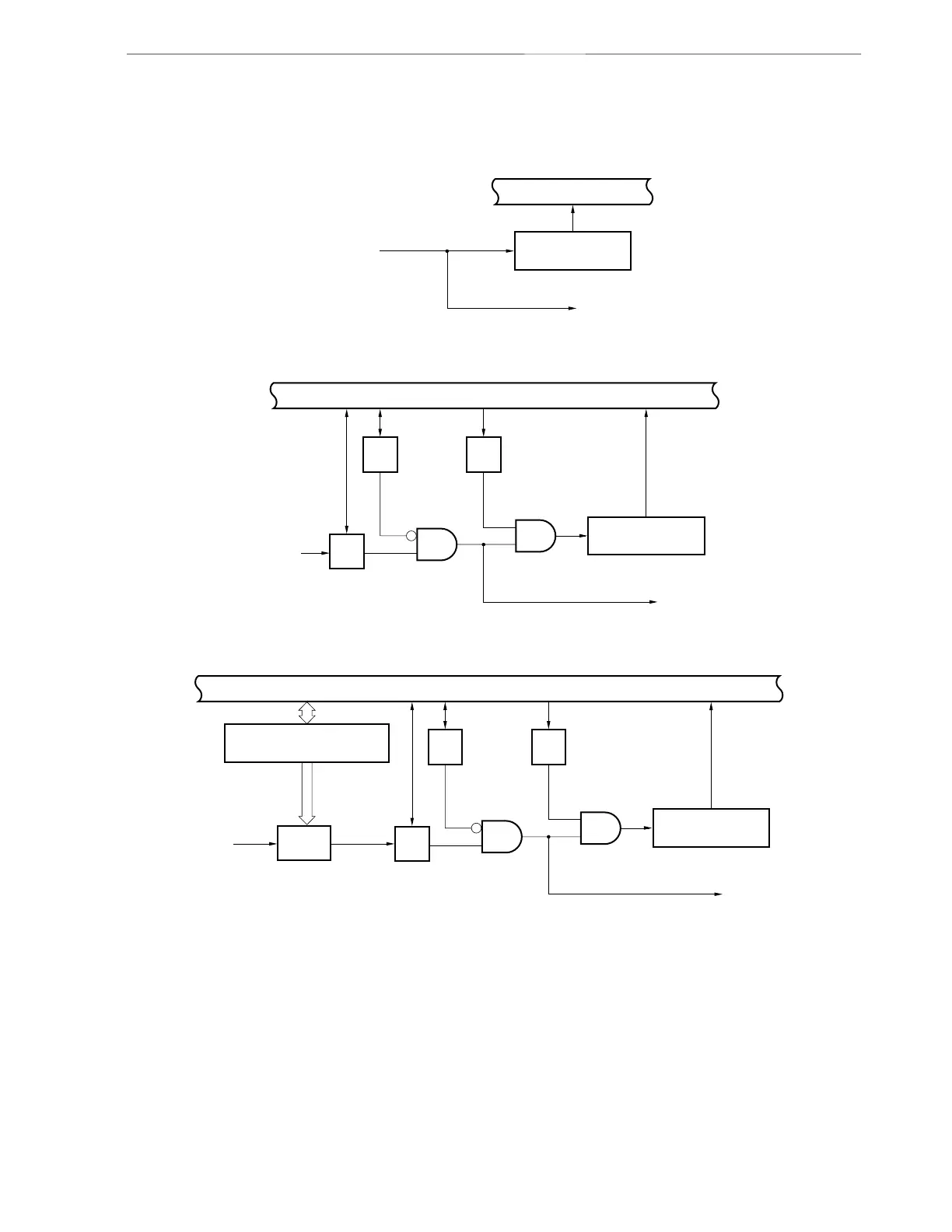

Figure 11-1. Basic Configuration of Interrupt Function

(A) Internal non-maskable interrupt

Internal bus

Interrupt request

Vector table

address generator

Standby release signal

(B) Internal maskable interrupt

Internal bus

Interrupt request

Vector table

address generator

Standby release signal

Internal bus

INTM0, KRM00

Interrupt

request

Edge

detector

Vector table

address generator

Standby

release signal

IF: Interrupt request flag

IE: Interrupt enable flag

MK: Interrupt mask flag

INTM0: External interrupt mode register 0

KRM00: Key return mode register 00
