10 E2600 Controller-Drive Tray Installation Guide

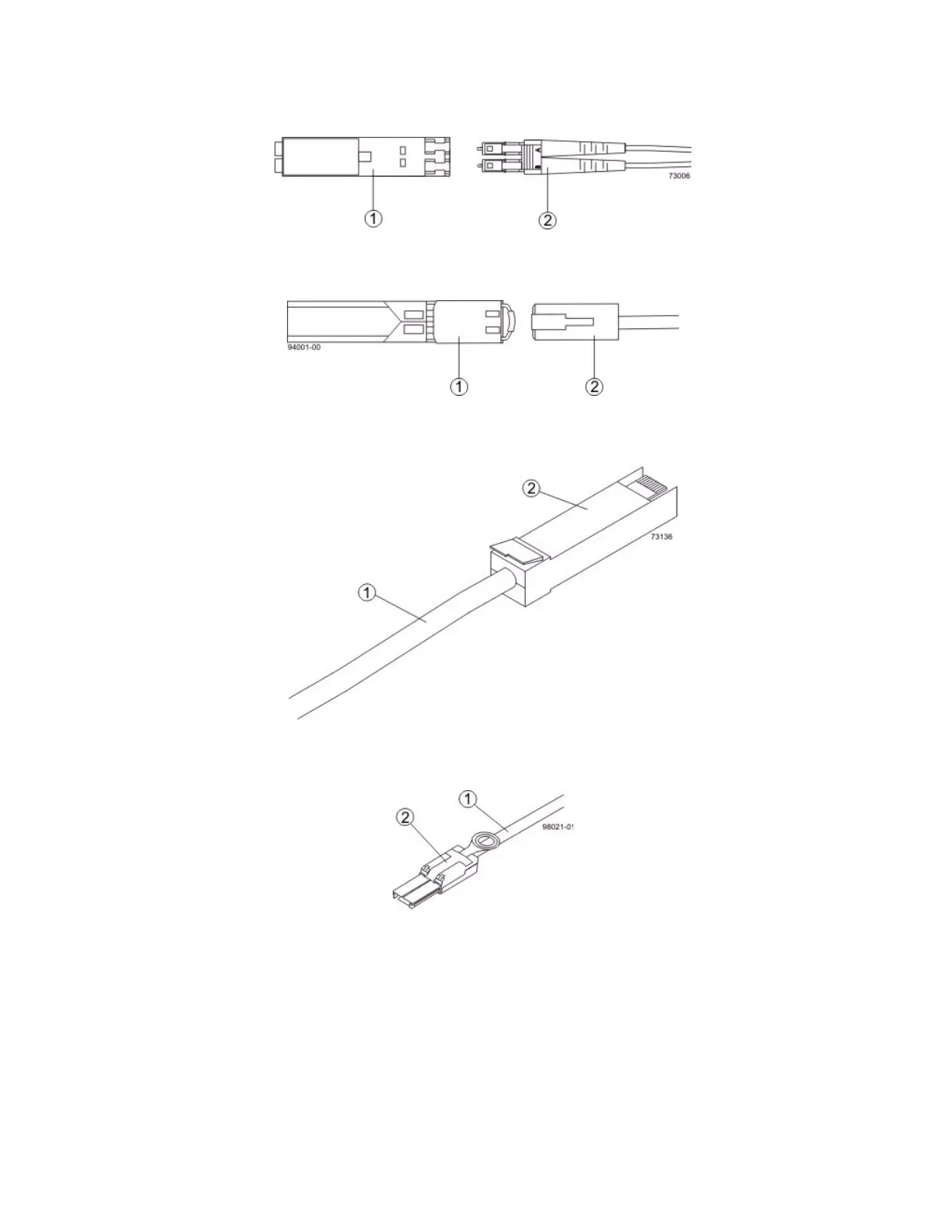

Figure 1 Fiber-Optic Cable Connection
1. Active SFP Transceiver
2. Fiber-Optic Cable
Figure 2 1-Gb/s iSCSI Cable Connection
1. Active SFP Transceiver
2. Copper Cable with RJ-45 Connector
Figure 3 Copper Fibre Channel Cable Connection
1. Copper Fibre Channel Cable
2. Passive SFP Transceiver
Figure 4 SAS Cable Connection
1. SAS Cable
2. SFF-8088 Connector
