82 E2600 Controller-Drive Tray Installation Guide
Things to Know – Drive Trays with the E2600 Controller-Drive Tray
Each DE1600 drive tray can contain a maximum of twelve 8.89-cm (3.5-in.) drives.
Each DE5600 drive tray can contain a maximum of twenty-four 6.35-cm (2.5-in.) drives.
The ESMs on the DE1600 drive tray and the DE5600 drive tray contain two sets of In connectors and one set
of Out connectors.

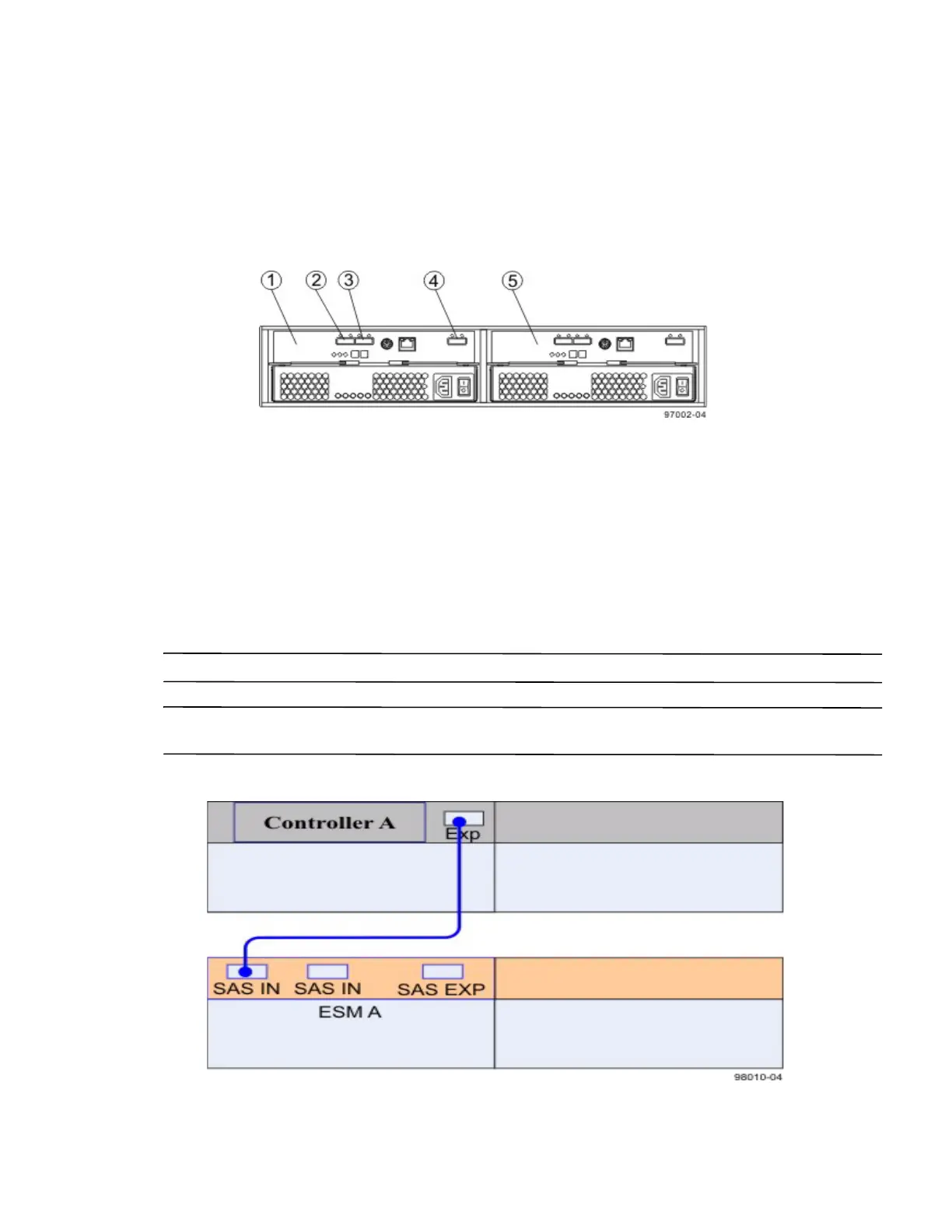

Figure 77 DE1600 Drive Tray and DE5600 Drive Tray – Rear View
1. ESM A
2. SAS Connector 1 (In)
3. SAS Connector 2 (In)
4. Expansion Connector (Out)
5. ESM B
Things to Know – Drive Tray Cabling Configurations – Simplex System
The following figure shows an example of cable configurations from the simplex E2600 controller-drive tray to
either a DE1600 drive tray or a DE5600 drive tray. Use this example as a guide to connect cables in your storage
array.
NOTE You can use either SAS IN connector on a drive tray for cabling.
NOTE Configurations for connecting cables in a simplex system do not provide for tray loss protection. Loss of a
drive tray that has a second drive tray connected to it means that you cannot access the second drive tray.
Figure 78 Controller-Drive Tray Above the Drive Tray
