66 E2600 Controller-Drive Tray Installation Guide

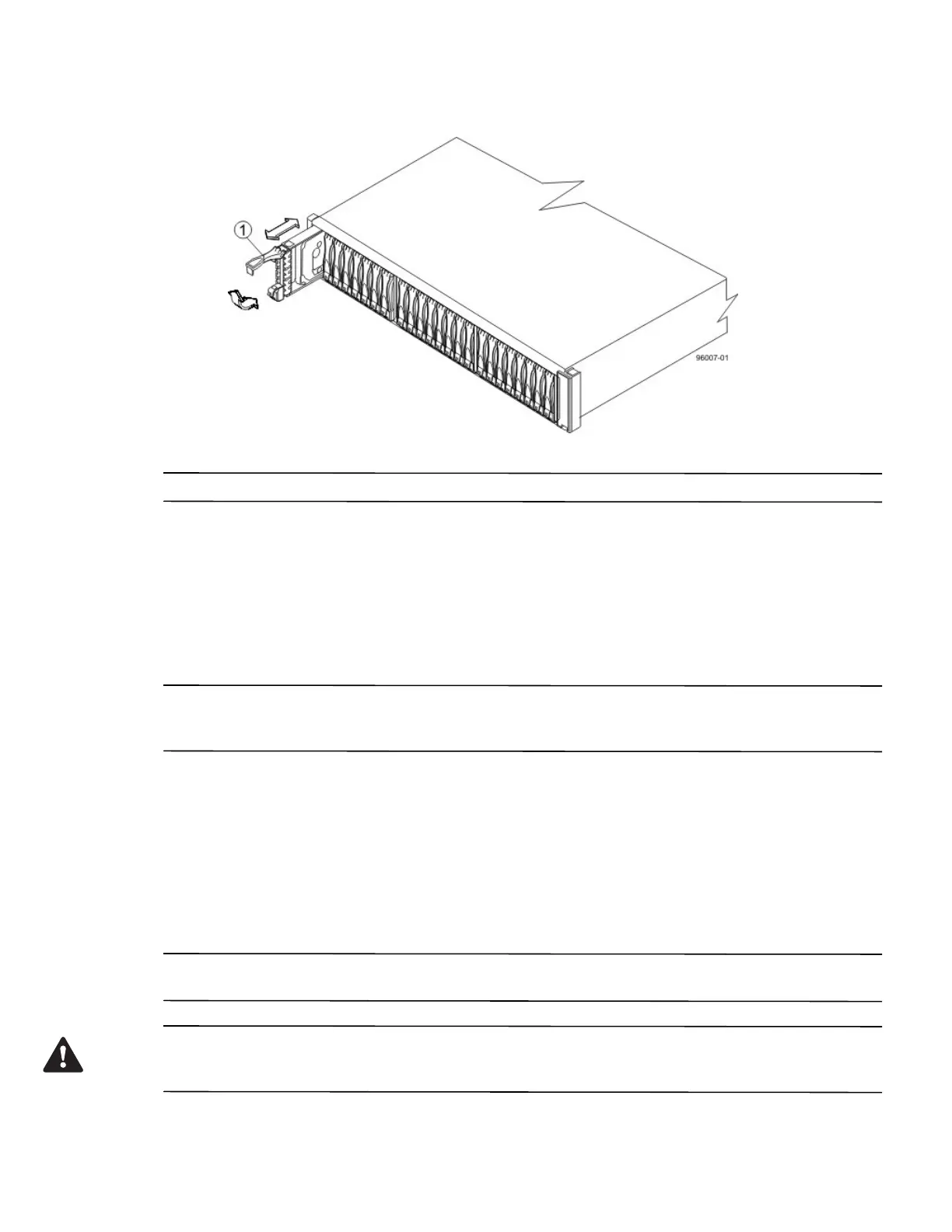

Figure 59 Installing a Drive in the DE5600 Drive Tray
1. Drive Handle
NOTE In some applications, the drive handle might have the hinge on the right.
3. Install the second drive beneath the first drive (DE1600 drive tray) or to the right of the first drive (DE5600
drive tray).
4. Install the other drives from top to bottom and then from left to right (DE1600 drive tray) or to the right
(DE5600 drive tray).
Things to Know – General Installation of Drive Trays with the E2660
Controller-Drive Tray
NOTE If you are installing the drive tray in a cabinet with other trays, make sure that the combined power
requirements of the drive tray and the other trays do not exceed the power capacity of your cabinet. For more
information, refer to the SANtricity ES Storage Manager Installation DVD.
Special site preparation is not required for any of these drive trays beyond what is normally found in a
computer lab environment.
The power supplies meet standard voltage requirements for both domestic and worldwide operation.
Take these precautions:
— Install the drive trays in locations within the cabinet that let you evenly distribute the drive trays around
the controller-drive tray.
— Keep as much weight as possible in the bottom half of the cabinet.
NOTE Refer to the Storage System Site Preparation Guide on the SANtricity ES Storage Manager Installation
DVD for important considerations about cabinet installation.
WARNING (W15) Risk of bodily injury – An empty tray weighs approximately 56.7 kg (125 lb). Three persons
are required to safely move an empty tray. If the tray is populated with components, a mechanized lift is required to
safely move the tray.
