E2600 Controller-Drive Tray Installation Guide 96
Things to Know – LEDs on the E2600 Controller-Drive Tray
The following topics provide details on the LEDs found on the E2600 controller-drive tray.
LEDs on the Left End Cap

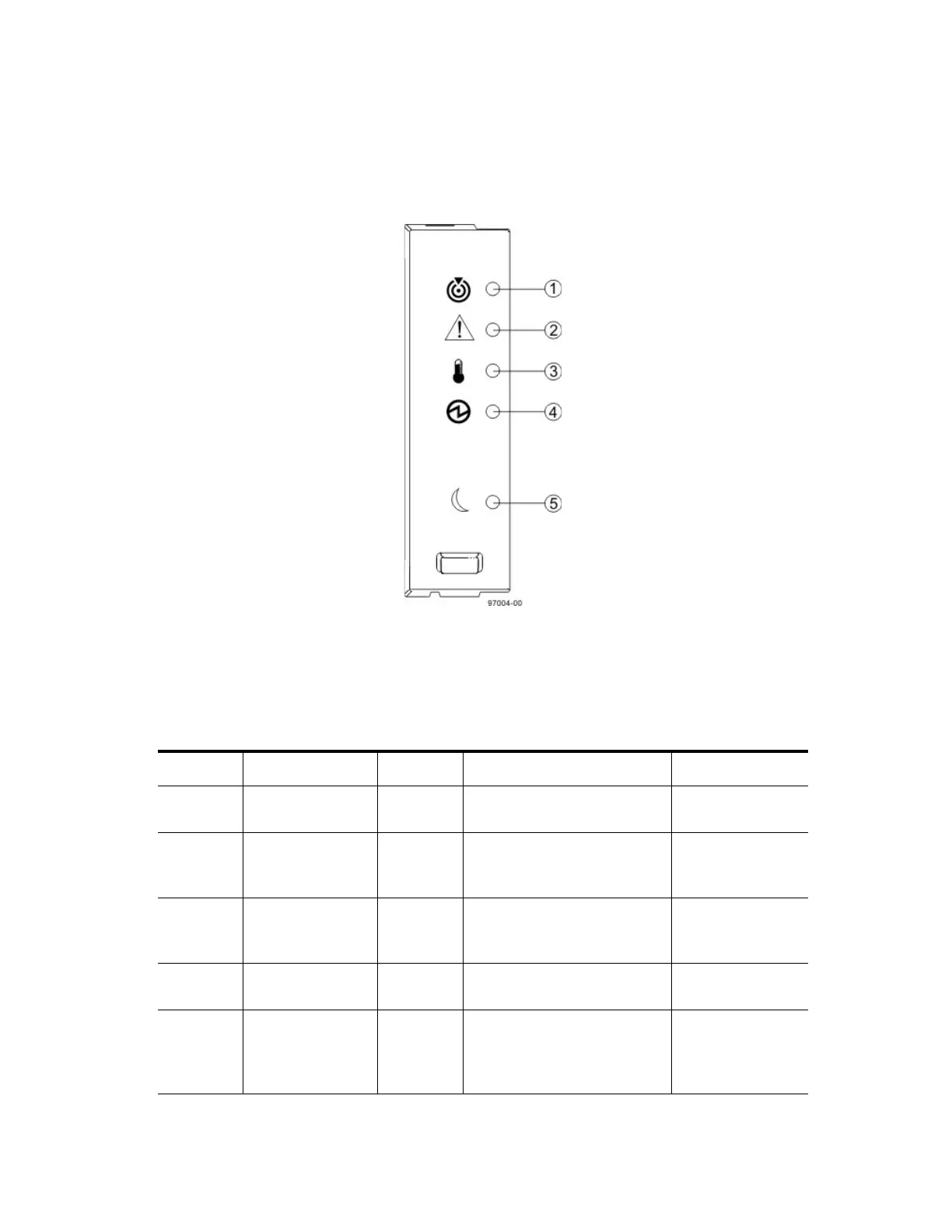

Figure 89 LEDs on the Left End Cap
1. Controller-Drive Tray Locate LED
2. Service Action Required LED
3. Controller-Drive Tray Over-Temperature LED
4. Power LED
5. Standby Power LED
Table 15 LEDs on the Left End Cap
Location LED Color On Off
1 Controller-Drive
Tray Locate
White Identifies a controller-drive
tray that you are trying to find.
Normal status.
2 Service Action
Required
Amber A component within the
controller-drive tray needs
attention.
Normal status.
3 Controller-Drive
Tray
Over-Temperature
Amber The temperature of the
controller-drive tray has
reached an unsafe level.
Normal status.
4 Power Green Power is present. Power is not
present.
5 Standby Power Green The controller-drive tray is in
Standby Power mode.
The controller-drive
tray is not in
Standby Power
mode.
