Step 4 - Installing the E2600 Controller-Drive Tray
Things to Know – General Installation
The power supplies meet standard voltage requirements for both domestic and worldwide operation.
NOTE Make sure that the combined power requirements of your trays do not exceed the power capacity of your
cabinet.
Procedure – Installing the E2600 Controller-Drive Tray

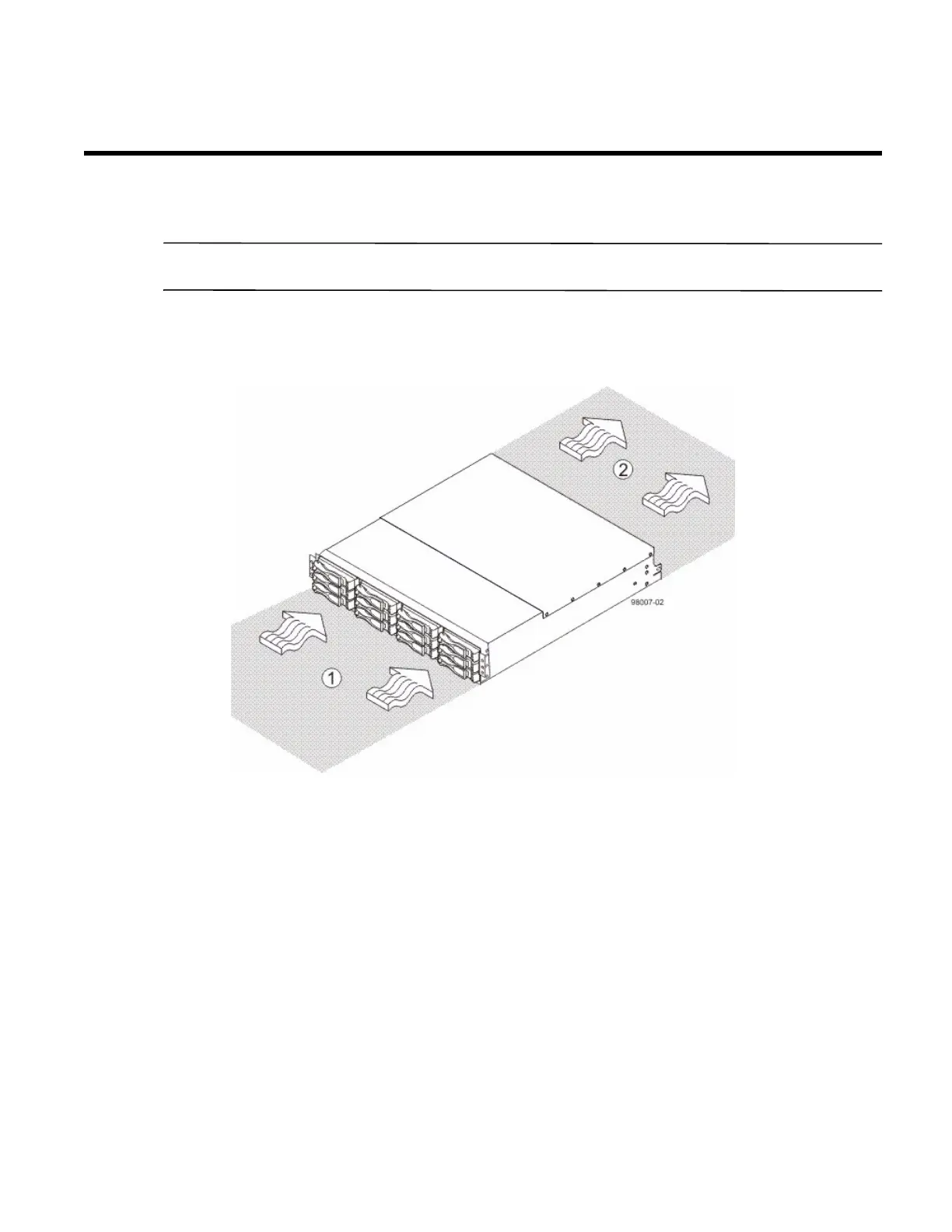

Figure 24 Airflow Direction Through and Clearance Requirements for the E2600 Controller-Drive Tray with 12
Drives
1. 76-cm (30-in.) clearance in front of the cabinet
2. 61-cm (24-in.) clearance behind the cabinet
