E2600 Controller-Drive Tray Installation Guide 116
Things to Know – LEDs on the DE6600 Drive Tray

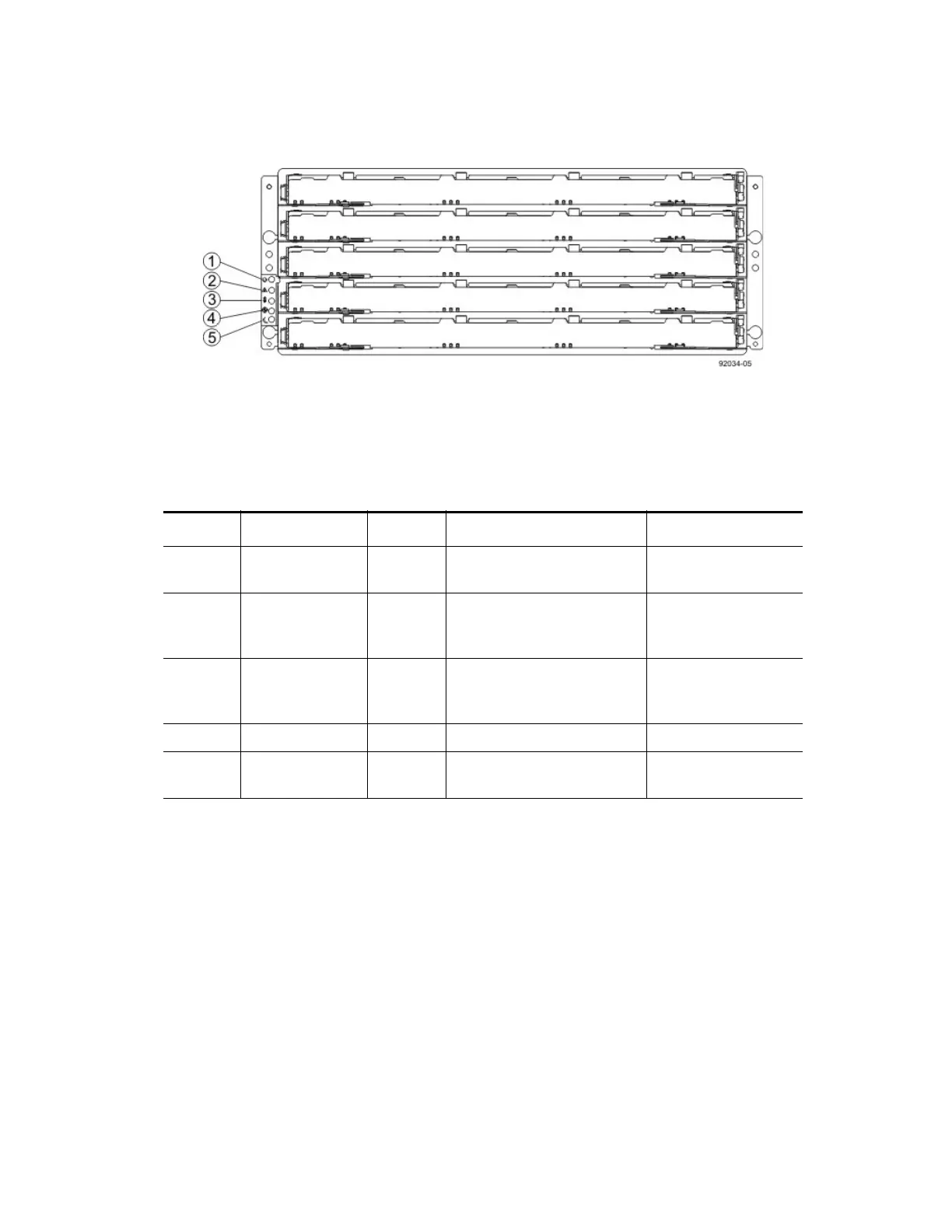

Figure 103 LEDs on the Left End Cap
1. Drive Tray Locate LED
2. Drive Tray Service Action Required LED
3. Drive Tray Over-Temperature LED
4. Drive Tray Power LED
5. Drive Tray Standby Power LED
Table 31 LEDs on the Left End Cap
Location LED Color On Off
1 Drive Tray Locate White Identifies a drive tray that you
are trying to find.
Normal status.
2Drive Tray
Service Action
Required
Amber A component within the drive
tray needs attention.
Normal status.
3Drive Tray
Over-Temperature
Amber The temperature of the drive
tray has reached an unsafe
level.
Normal status.
4 Drive Tray Power Green Power is present. Power is not present.
5Drive Tray
Standby Power
Green The drive tray is in Standby
Power mode.
The drive tray is not in
Standby Power mode.
