E2600 Controller-Drive Tray Installation Guide 111
NOTE If the Service Action Required (Fault) LED comes on but the Service Action Allowed LED is off for a
particular canister, you might need to service another canister first. Check your storage manag
ement software to
determine the action that you should take.
Things to Know – LEDs on the DE1600 Drive Tray and the DE5600 Drive Tray

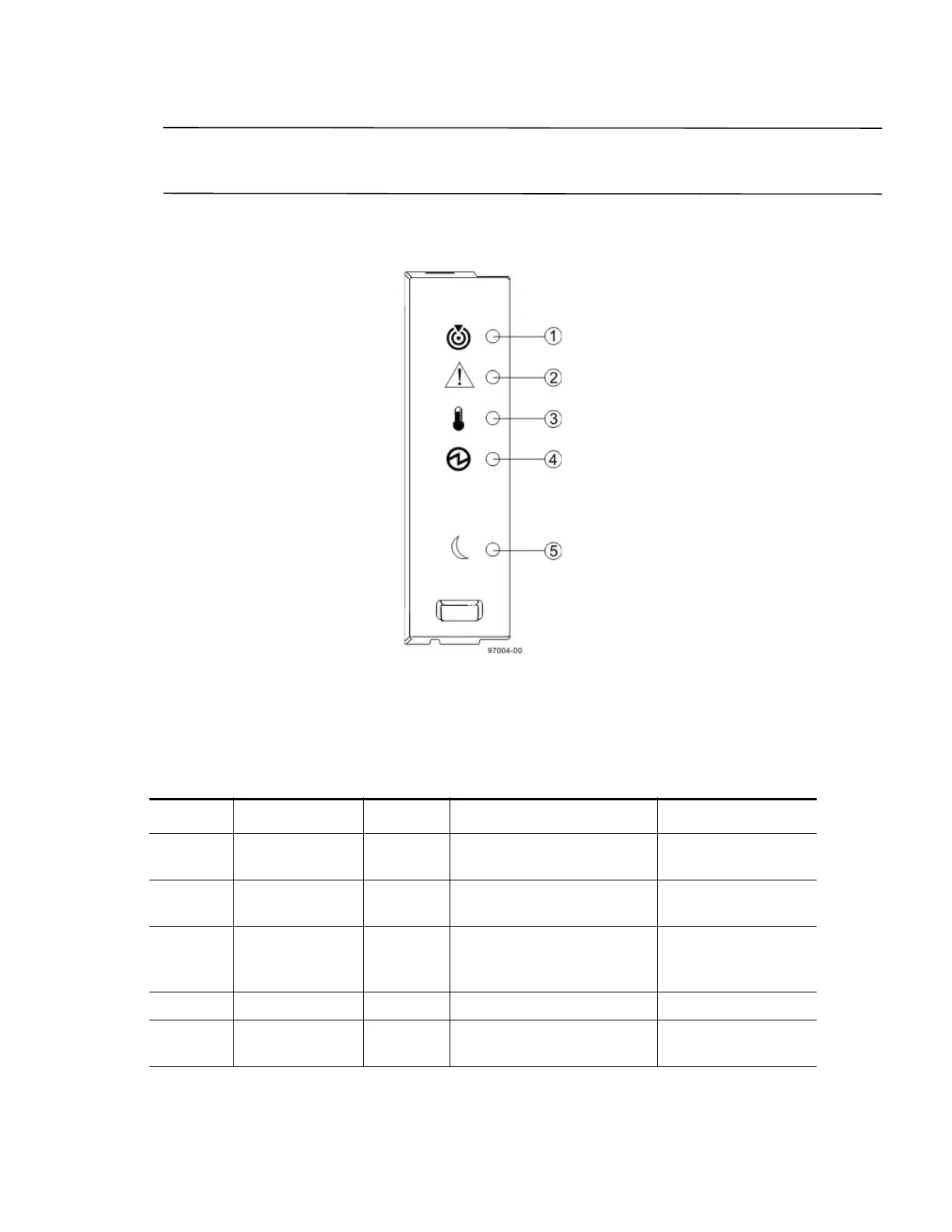

Figure 98 LEDs on the Left End Cap
1. Drive Tray Locate LED
2. Drive Tray Service Action Required LED
3. Drive Tray Over-Temperature LED
4. Drive Tray Power LED
5. Drive Tray Standby Power LED
Table 26 LEDs on the Left End Cap
Location LED Color On Off
1 Drive Tray Locate White Identifies a drive tray that you
are trying to find.
Normal status.
2 Drive Tray Service
Action Required
Amber A component within the drive
tray needs attention.
Normal status.
3Drive Tray
Over-Temperature
Amber The temperature of the drive
tray has reached an unsafe
level.
Normal status.
4 Drive Tray Power Green Power is present. Power is not present.
5Drive Tray
Standby Power
Green The drive tray is in Standby
Power mode.
The drive tray is not in
Standby Power mode.
