E2600 Controller-Drive Tray Installation Guide 112

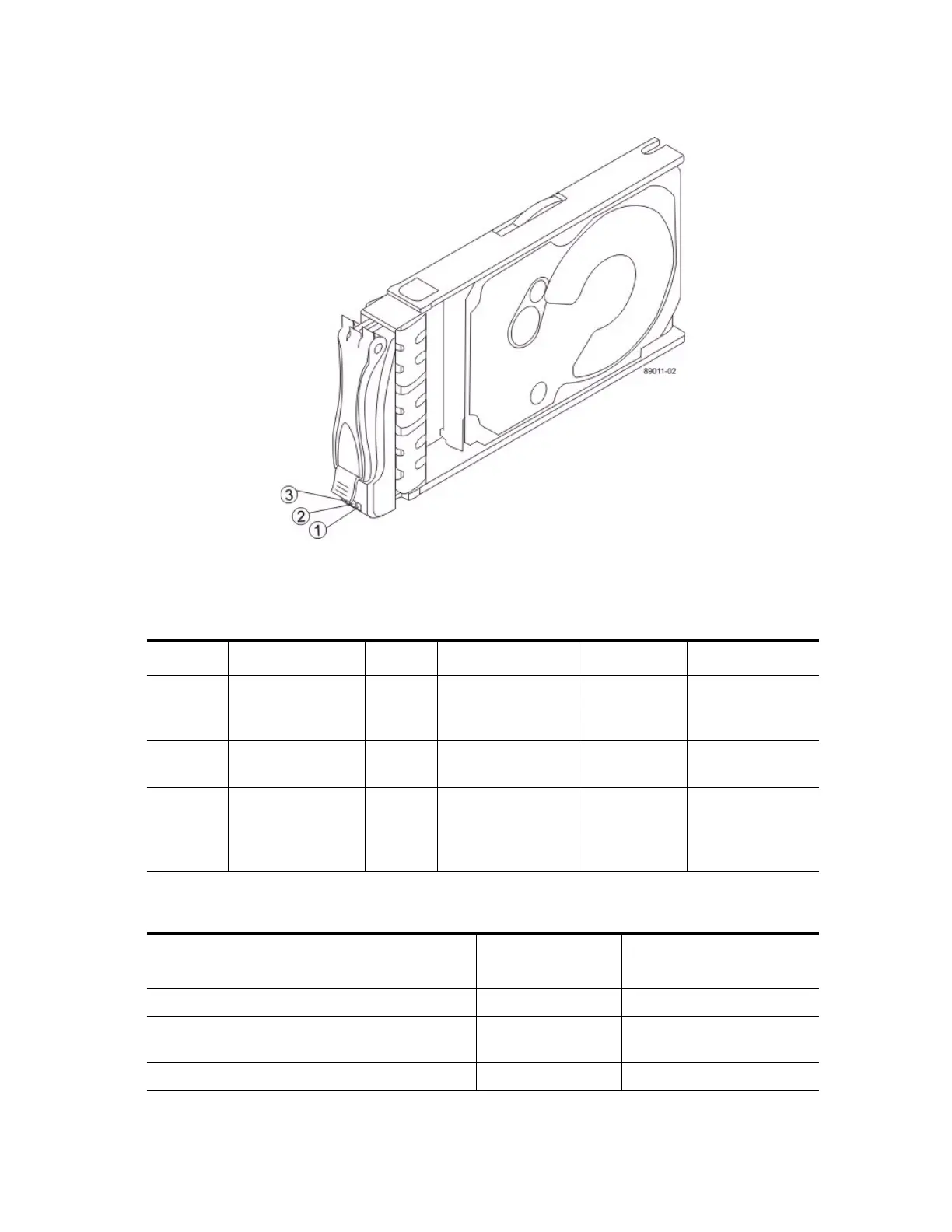

Figure 99 LEDs on the Drive
1. Drive Power LED
2. Drive Service Action Required LED
3. Drive Service Action Allowed LED
Table 27 LEDs on the Drive
Table 28 Drive State Represented by LEDs
Location LED Color On Blinking Off
1 Drive Power Green The power is turned
on, and the drive is
operating normally.
Drive I/O
activity is
taking place.
The power is
turned off.
2 Drive Service
Action Required
Amber An error has
occurred.
Normal status.
3 Drive Service
Action Allowed
Blue The drive canister
can be removed
safely from the drive
tray.
The drive canister
cannot be removed
safely from the
drive tray.
Drive State
Drive Power LED
(Green)
Drive Service Action
Required LED (Amber)
Power is not applied. Off Off
Normal operation – The power is turned on, but
drive I/O activity is not occurring.
On Off
Normal operation – Drive I/O activity is occurring. Blinking Off
