E2600 Controller-Drive Tray Installation Guide 113

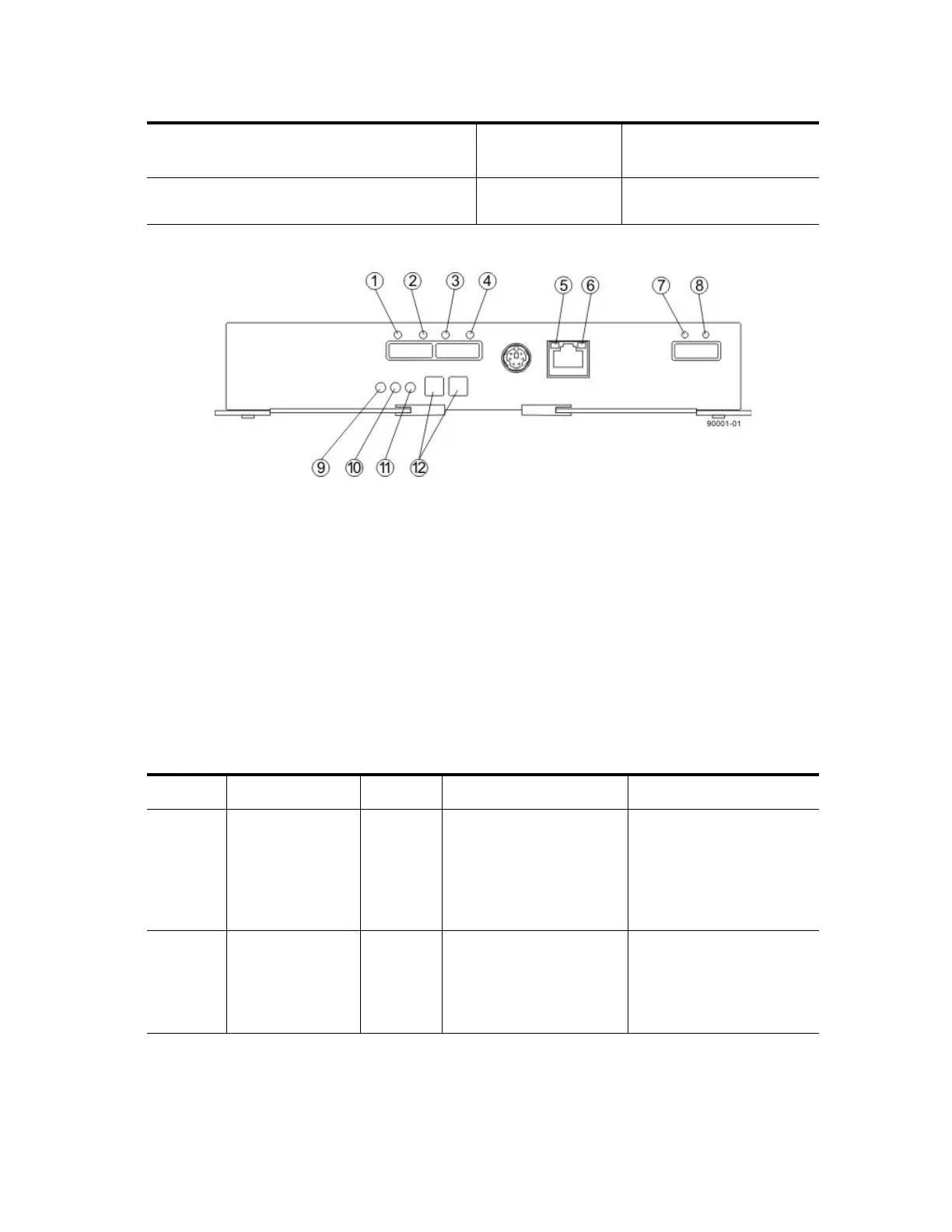

Figure 100 LEDs on the ESM Canister
1. Host Link 1 Fault LED
2. Host Link 1 Active LED
3. Host Link 2 Fault LED
4. Host Link 2 Active LED
5. Ethernet Link Active LED
6. Ethernet Link Rate LED
7. ESM Expansion Link Fault LED
8. ESM Expansion Link Active LED
9. ESM Service Action Allowed LED
10. ESM Service Action Required LED
11. ESM Power LED
12. Seven-Segment Tray ID
Table 29 LEDs on the ESM Canister
Service action required – A fault condition exists,
and the drive is offline.
On On
Location LED Color On Off
1 Host Link 1 Fault Amber At least one PHY of the
four connectors is working,
but another PHY cannot
establish the same link to
the device connected to the
Host IN port connector.
No link error has occurred.
2 Host Link 1 Active Green At least one of the four
PHYs in the In port is
working, and a link exists
to the device connected to
the Host In connector.
A link error has occurred.
Drive State
Drive Power LED
(Green)
Drive Service Action
Required LED (Amber)
