E2600 Controller-Drive Tray Installation Guide 47
NOTE If Synchronous Mirroring connections are required, do not connect a host to the highest numbered host
channel because this channel is used for the mirrored communications.

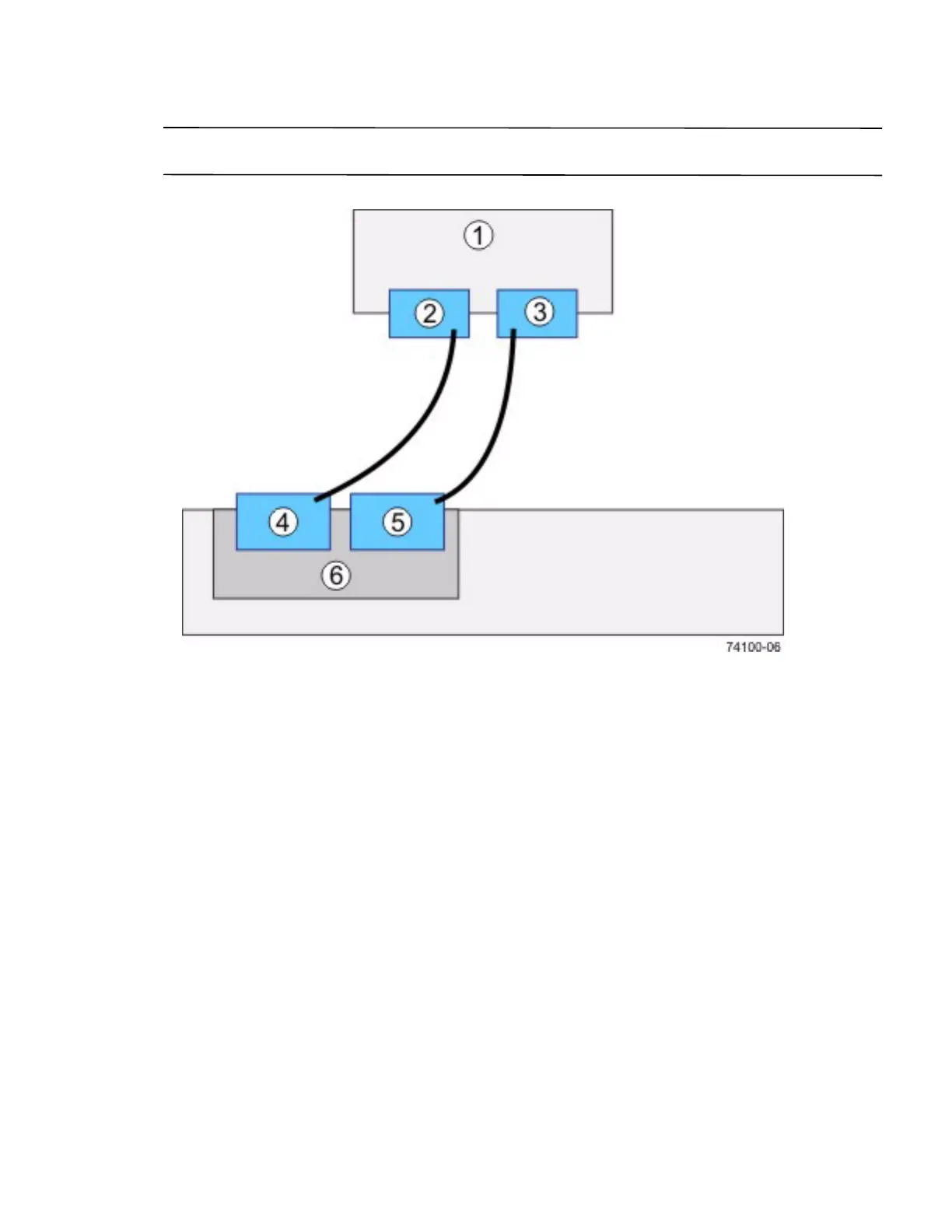

Figure 41 Direct Topology – One Host Connected to a Single Controller
1. Host
2. HBA 1 or NIC 1
3. HBA 2 or NIC 2
4. Host Port 1
5. Host Port 2
6. Controller A
