E2600 Controller-Drive Tray Installation Guide 49

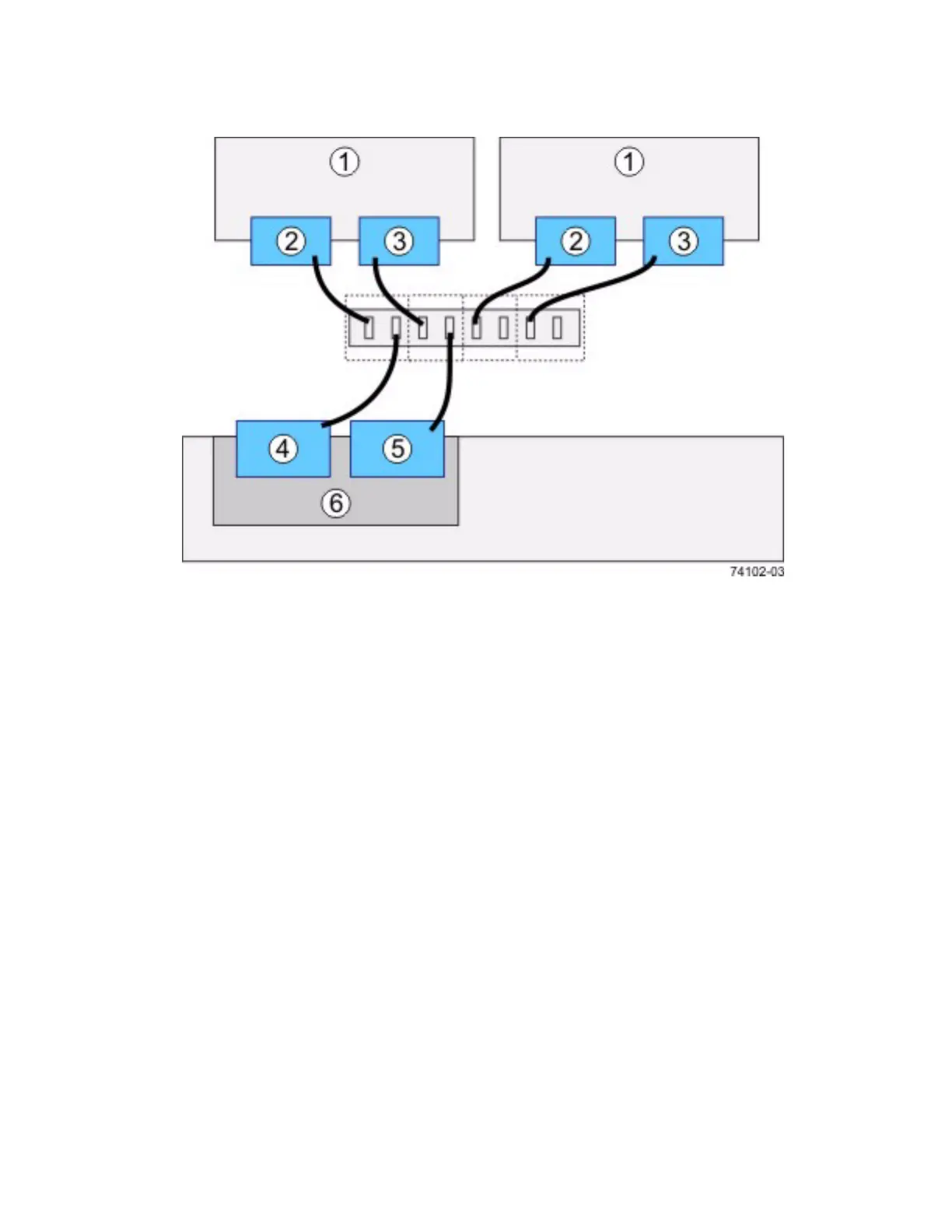

Figure 43 Switch Topology – Two Hosts Connected to a Single Controller Through a Switch
1. Host
2. HBA 1 or NIC 1
3. HBA 2 or NIC 2
4. Host Port 1
5. Host Port 2
6. Controller A
