E2600 Controller-Drive Tray Installation Guide 51

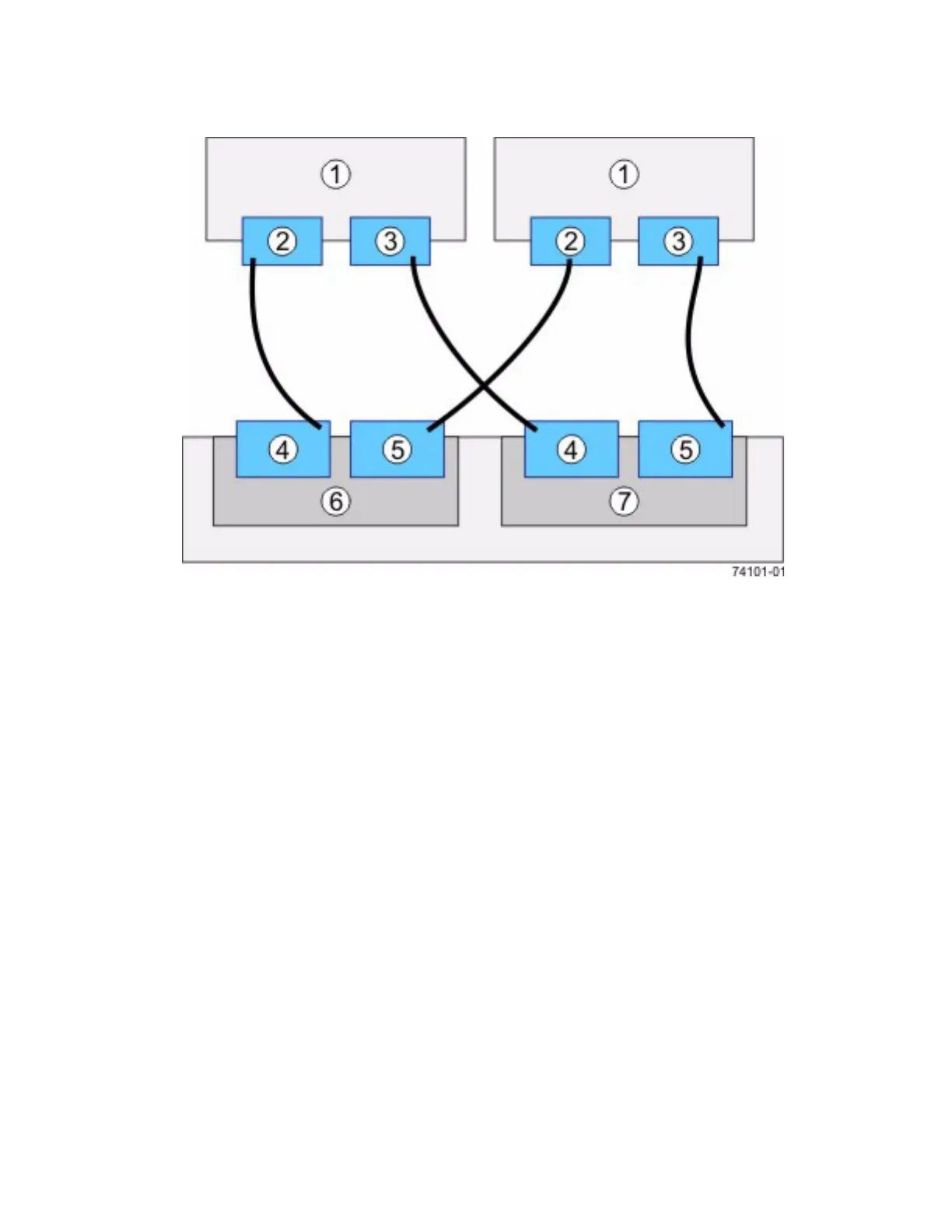

Figure 45 Direct Topology – Two Hosts and a Dual Controller-Drive Tray for Maximum Redundancy
1. Hosts
2. HBA 1 or NIC 1
3. HBA 2 or NIC 2
4. Host Port 1
5. Host Port 2
6. Controller A
7. Controller B
