1. Align the front of the rail with the holes on the front post of the rack.
2. Push the hooks on the front of the rail into the holes on the front post of the rack and then down, until the
spring-loaded pegs snap into the rack holes.
3. Attach the rail to the rack with screws. Here is an illustration of the left rail being attached to the front of the
rack:
4. Extend the rear section of the rail to the rear post of the rack.
5. Align the hooks on the rear of the rail with the appropriate holes on the rear post ensuring that the front and
the back of the rail are on the same level.
6. Mount the rear of the rail onto the rack, and secure the rail with screws.
7. Perform all the above steps for the other side of the rack.
H610C

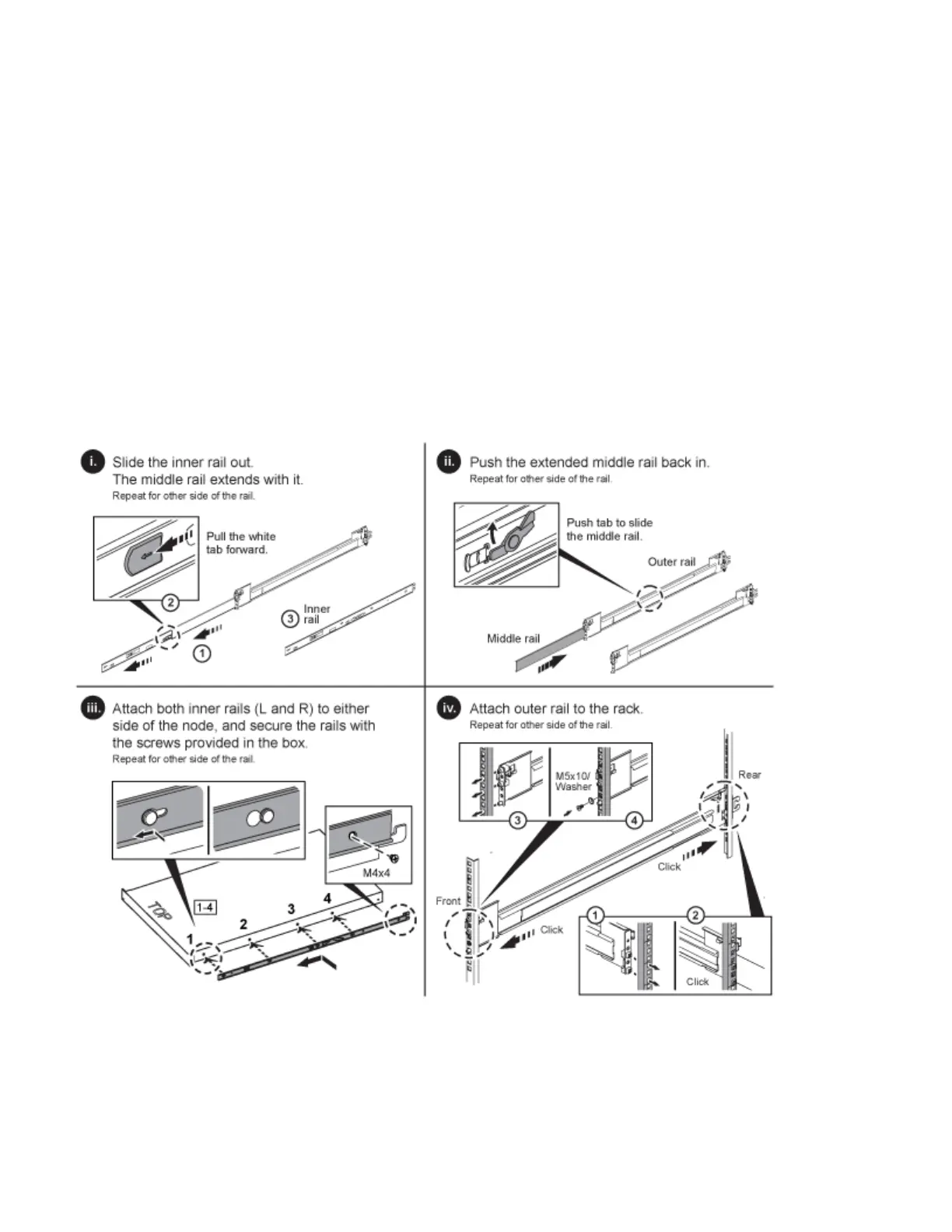

Here is an illustration for installing rails for an H61OC compute node:
H610S and H615C
Here is an illustration for installing rails for an H610S storage node or an H615C compute node:

NetApp HCI Specifications

General

Product Type	Hyperconverged Infrastructure (HCI)
Data Services	Data protection, encryption
Connectivity	10 GbE, 25 GbE, 40 GbE, 100 GbE
Hypervisor Support	VMware vSphere
Management Node	Included in the solution
Storage Media	SSD and HDD
Node Types	Compute nodes, storage nodes
Storage Protocols	iSCSI
Data Reduction	Deduplication, compression, thin provisioning
High Availability	Built-in redundancy
