H615C compute node

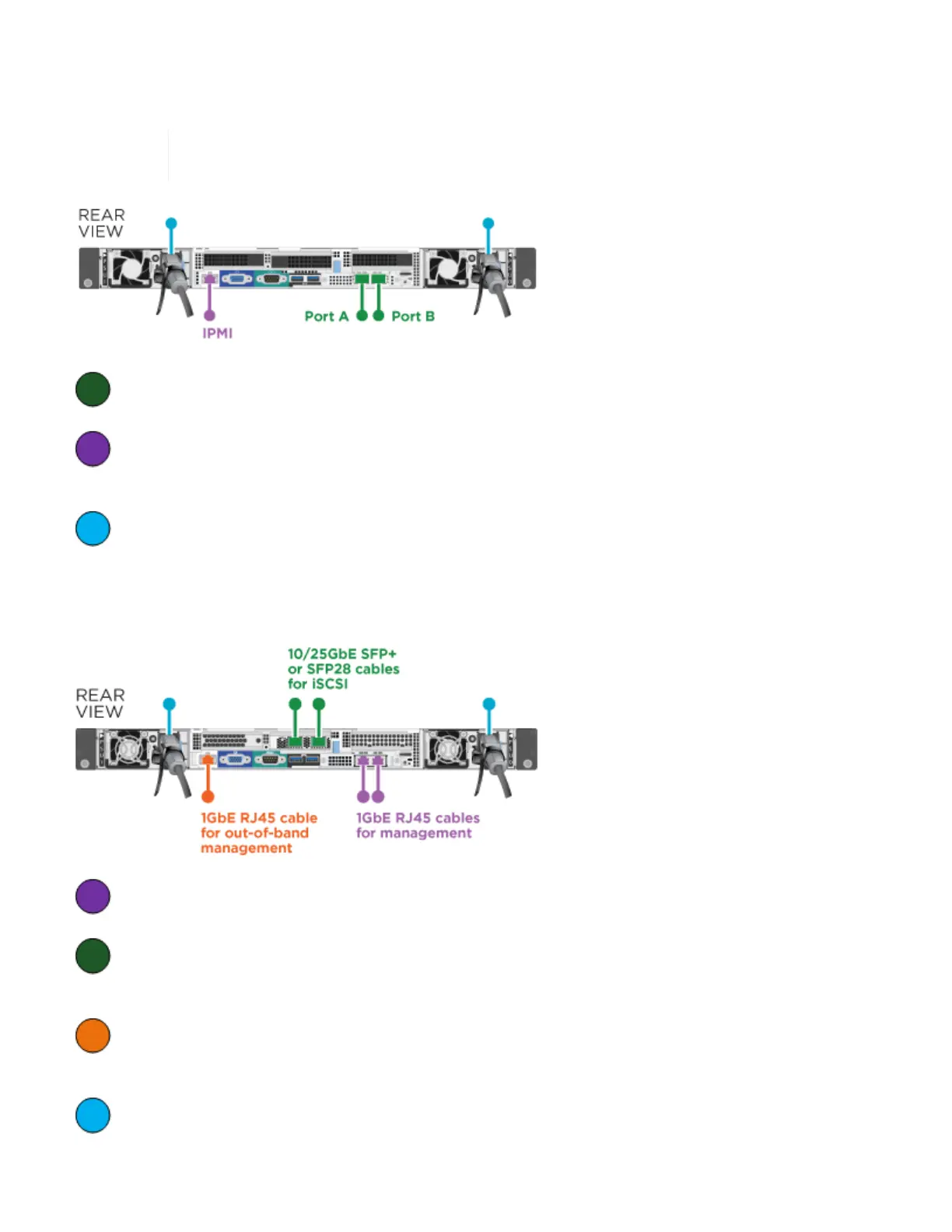

Here is the cabling for the H615C node:
H615C nodes are deployed only in the two-cable configuration. Ensure that all the VLANs
are present on ports A and B.
For ports A and B, connect the node to a 10/25GbE network using two SFP28/SFP+ cables.
(Optional, recommended) Connect the node to a 1GbE network using an RJ45 connector in the IPMI
port.
Connect both power cables to the node, and plug the power cables to a 110-140V power outlet.
H610S storage node
Here is the cabling for the H610S node:
Connect the node to a 1GbE network using two RJ45 connector in the IPMI port.
Connect the node to a 10/25GbE network using
two SFP28 or SFP+ cables.
Connect the node to a 1GbE network using
an RJ45 connector in the IPMI port.
Connect both power cables to the node.
