NETGEAR DGN2200v3 User Manual

Hardware Setup
14
N300 Wireless ADSL2+ Modem Router DGN2200v3

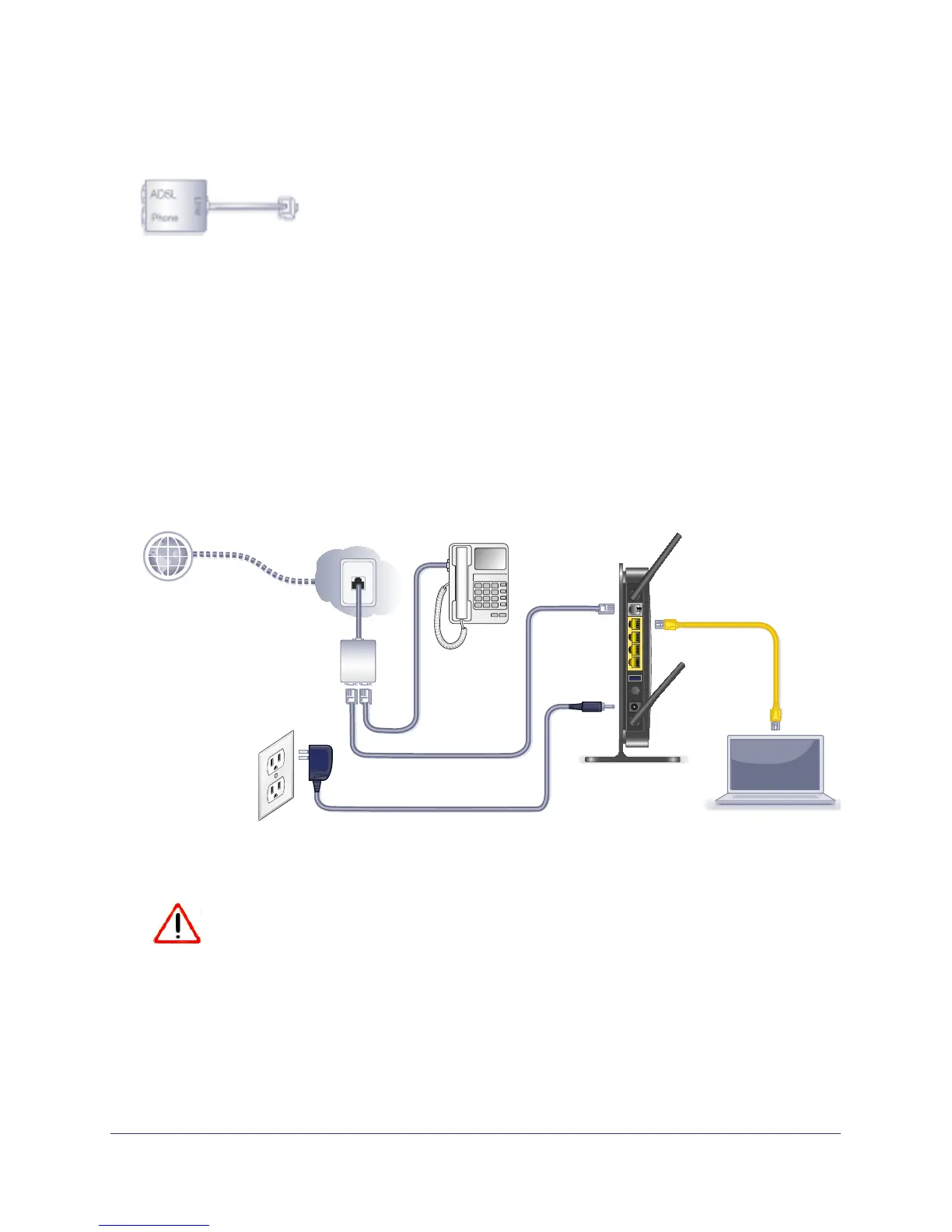

microfilter into the wall outlet, plug your phone equipment into the jack labeled Phone, and
plug the modem router into the jack labeled ADSL.
Plugs into the DSL line
Figure 5. Two-line ADSL microfilter with built-in splitter
Summary
• One-line ADSL microfilter. Use with a phone or fax machine.
• Splitter
. Use with a one-line ADSL microfilter to share an outlet with a phone and the
modem router.
• T
wo-line ADSL microfilter with built-in splitter. Use to share an outlet with a phone and the
modem router.
Cable Your Modem Router
Internet
ADSL
Phone
Line
Figure 6. Cable connections
CAUTION:
Incorrectly connecting a filter to your modem router blocks your DSL
connection.
This section includes the same information about the printed installation guide that came with
the modem router.
