Virtual Private Networking

129

N300 Wireless ADSL2+ Modem Router DGN2200v3

Example of Using Auto Policy

Gateway A

Gateway B

VPN Tunnel

Internet

22.23.24.25

14.15.16.17

IP: 192.168.0.1

IP:192.168.3.1

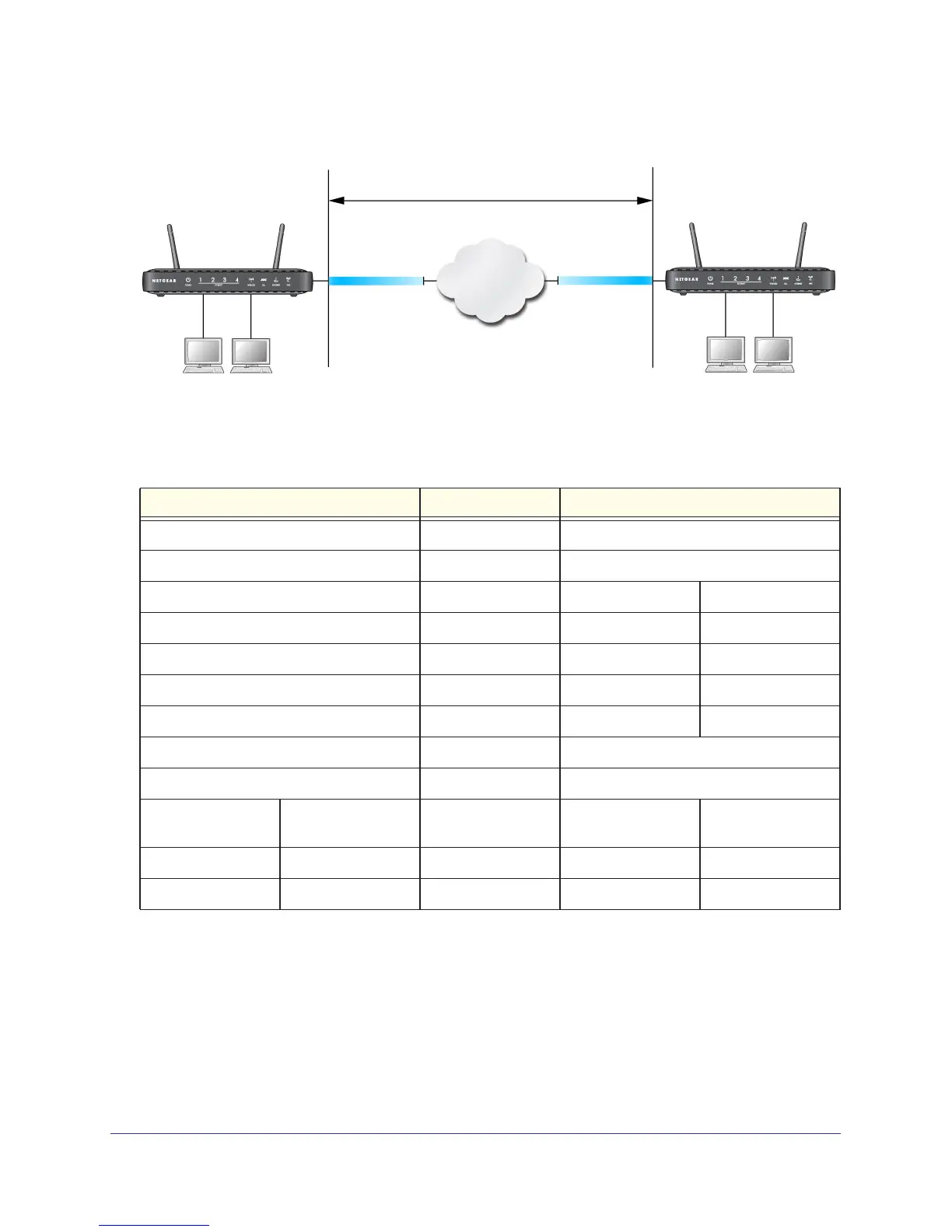

Figure 13. Auto Policy for a Gateway-to-Gateway tunnel

The following settings are assumed for this example:.

Table 8. Gateway-to-Gateway VPN Tunnel Configuration Worksheet

Parameter Value to Be Entered Field Selection

Connection Name GtoG N/A

Pre-Shared Key 12345678 N/A

Secure Association N/A Main Mode Manual Keys

Perfect Forward secrecy N/A Enabled Disabled

Encryption Protocol N/A DES 3DES

Authentication Protocol N/A MD5 SHA-1

Diffie-Hellman (DH) Group N/A Group 1 Group 2

Key Life in seconds 28800 (8 hours) N/A

IKE Life Time in seconds 3600 (1 hour) N/A

VPN Endpoint Local IPSecID LAN IP Address Subnet Mask FQDN or Gateway

IP (W

AN IP Address

Gateway_A GW_A 192.168.0.1 255.255.255.0 14.15.16.17

Gateway_B GW_B 192.168.3.1 255.255.255.0 22.23.24.25

 To use Auto Policy:

1. Set the LAN IPs on each modem router to dif

ferent subnets and configure each correctly

for the Internet.

2. Select Advanced - VPN > VPN Policies and click the Add Auto

Policy button.
