Administration
86
N300 Wireless ADSL2+ Modem Router DGN2200v3
Mode. The wireless communication mode: Up to 54 Mbps, Up to 217 Mbps (default), and Up
to 1300 Mbps.
Wireless AP. Indicates whether the radio feature of the modem router is enabled. If this
feature is not enabled, the Wireless LED on the front panel is off.
Broadcast Name. Indicates whether the modem router is broadcasting its SSID.
Wireless Isolation. Wireless isolation prevents wireless clients from communicating with
each other when they join the wireless network.
Wi-Fi Protected Setup. Indicates whether Wi-Fi Protected Setup is configured for this
network.
View Logs of Web Access or Attempted Web Access
The log is a detailed record of the websites you have accessed or attempted to access. Up to
256 entries are stored in the log. Log entries appear only when keyword blocking is enabled
and no log entries are made for the trusted user
.

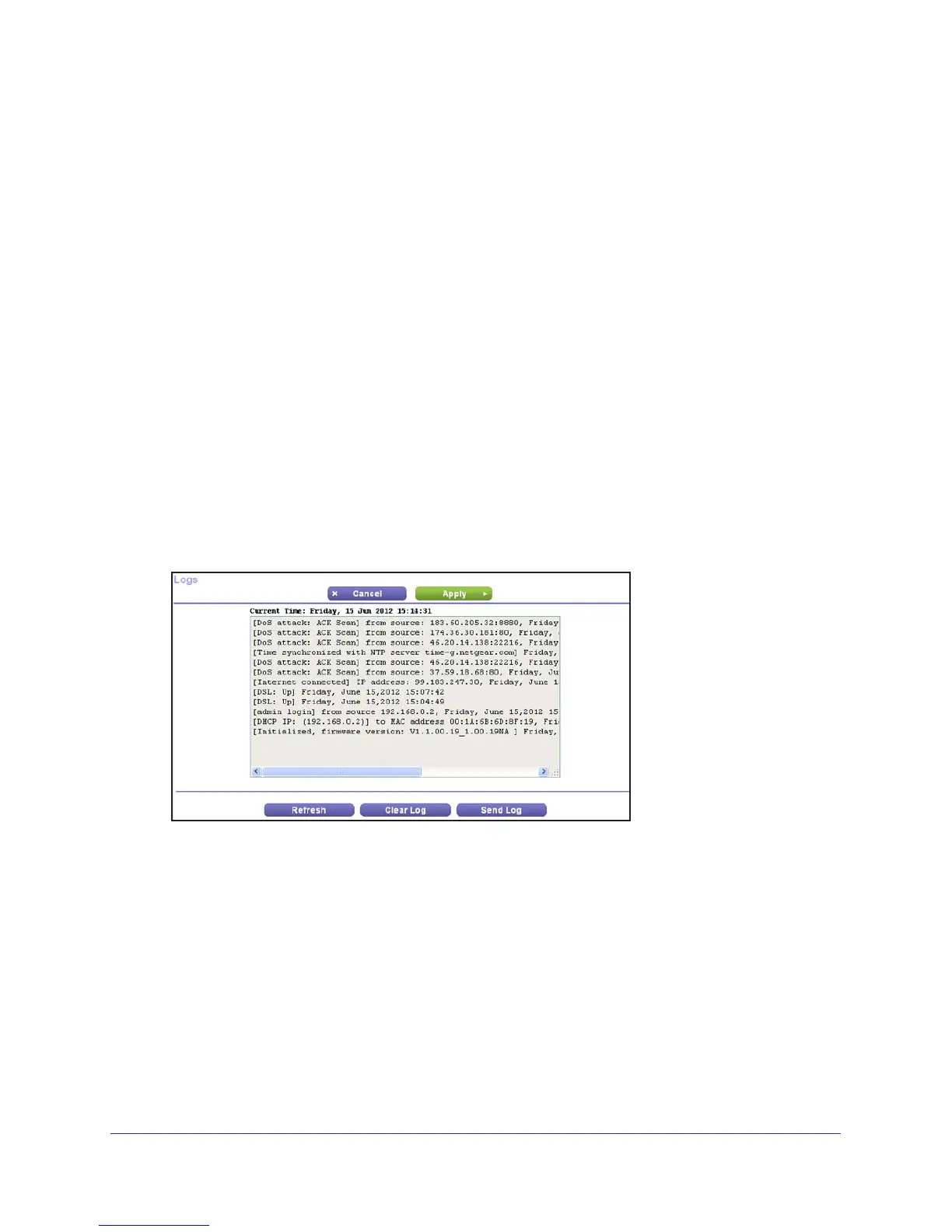

To view logs:
Select Advanced >
Administration > Logs. The Logs screen displays.
The log screen shows the following information:
• Date and time.
The date and time the log entry was recorded.
• Source IP.
The IP address of the initiating device for this log entry.
• T
arget address. The name or IP address of the website or news group visited or to which
access was attempted.
• Action. Whether the access was blocked or allowed.
To refresh the log screen, click the Refresh button.
To clear the log entries, click the Clear Log button.
To email the log immediately, click the Send Log button.
