VPN Configuration
148
N300 Wireless
ADSL2+ Modem Router DGN2200v3
4.

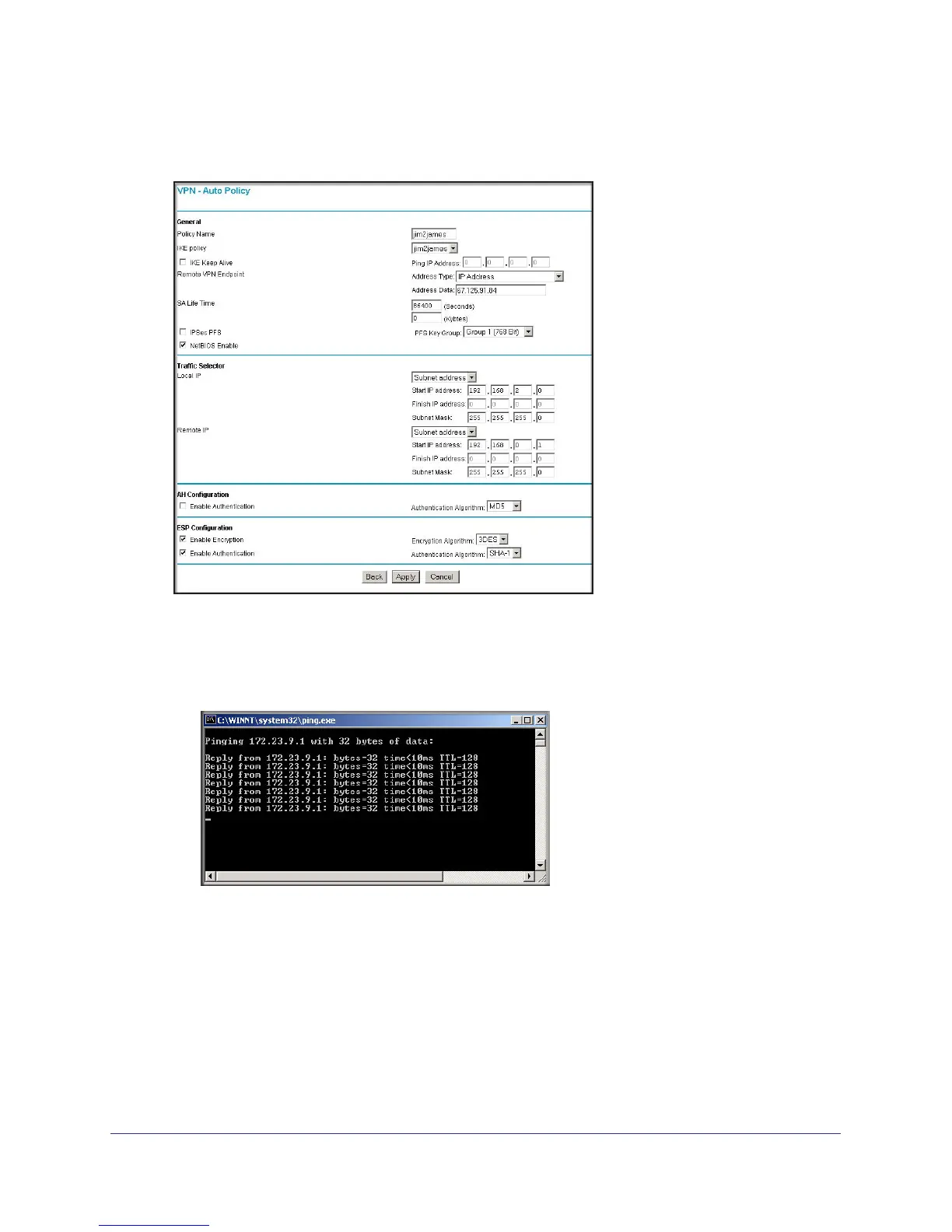

On Gateway B router menu, under VPN, select VPN Policies, and click the
Edit
button to
display the VPN
Auto Policy screen:
5.
T
est the VPN tunnel by pinging the remote network from a PC attached to Gateway
A
(modem router).
a.
Open the command prompt (Start > Run > cmd).
b.
T
ype
ping 172.23.9
.
If the pings fail the first time, try the pings a second time.
147
149
