NETGEAR FVS318 - ProSafe VPN Firewall Router User Manual

Reference Manual for the ProSafe VPN Firewall FVS318v3
6-18 Advanced Virtual Private Networking
January 2005
c.
From the main menu Advanced section, click the LAN IP Setup link. The following
menu appears

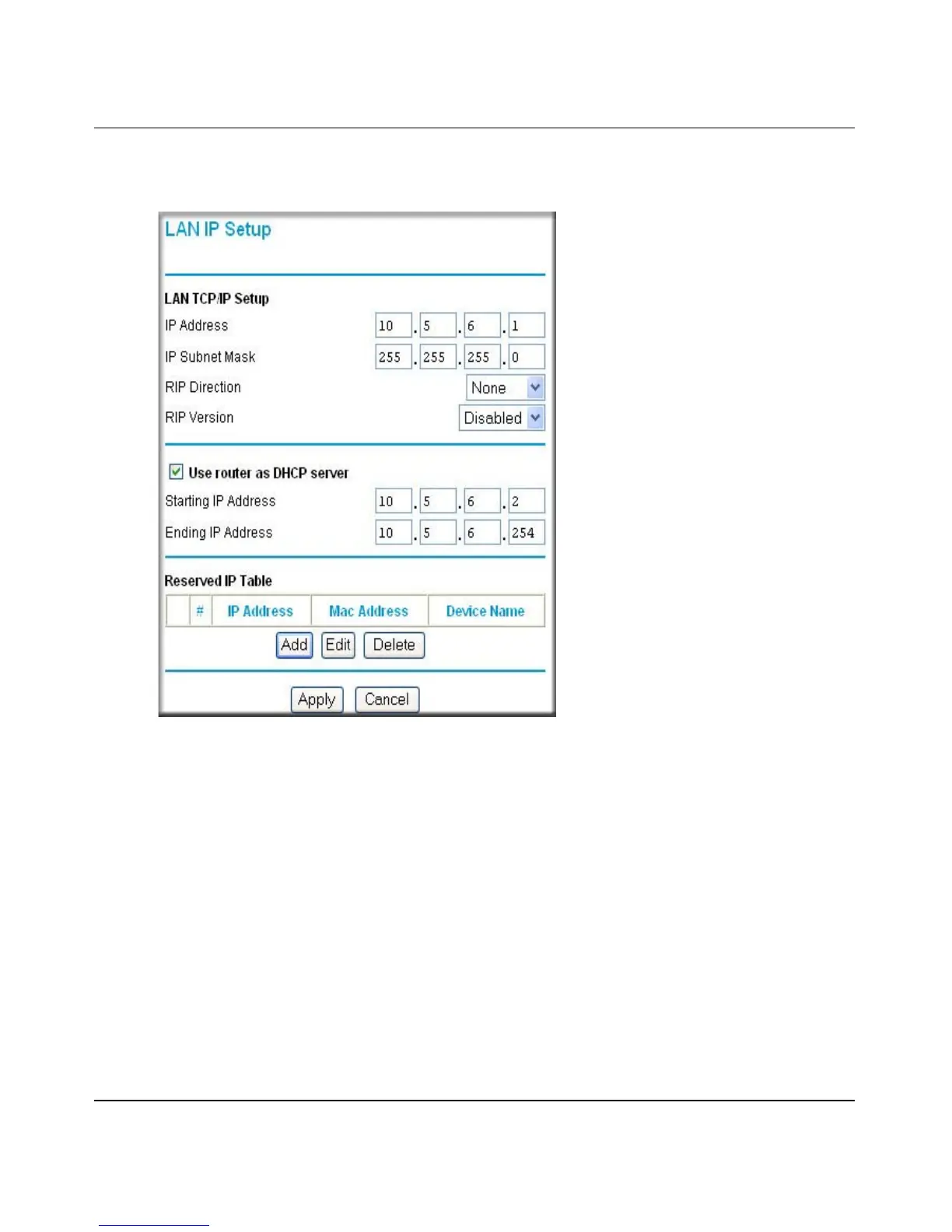

Figure 6-8: LAN IP Setup menu
d.
Configure the LAN IP address according to the settings above and click Apply to save
your settings. For more information on LAN TCP/IP setup topics, please see “Configuring
LAN TCP/IP Setup Parameters” on page 8-3.
Note: After you click Apply to change the LAN IP address settings, your workstation will
be disconnected from the FVS318v3. You will have to log on with http://10.5.6.1 which is
now the address you use to connect to the built-in Web-based configuration manager of
the FVS318v3.

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
