Reference Manual for the ProSafe VPN Firewall FVS318v3
E-28 VPN Configuration of NETGEAR FVS318v3
January 2005
Configuring the VPN Tunnel
Note: This scenario assumes all ports are open on the FVS318v3.

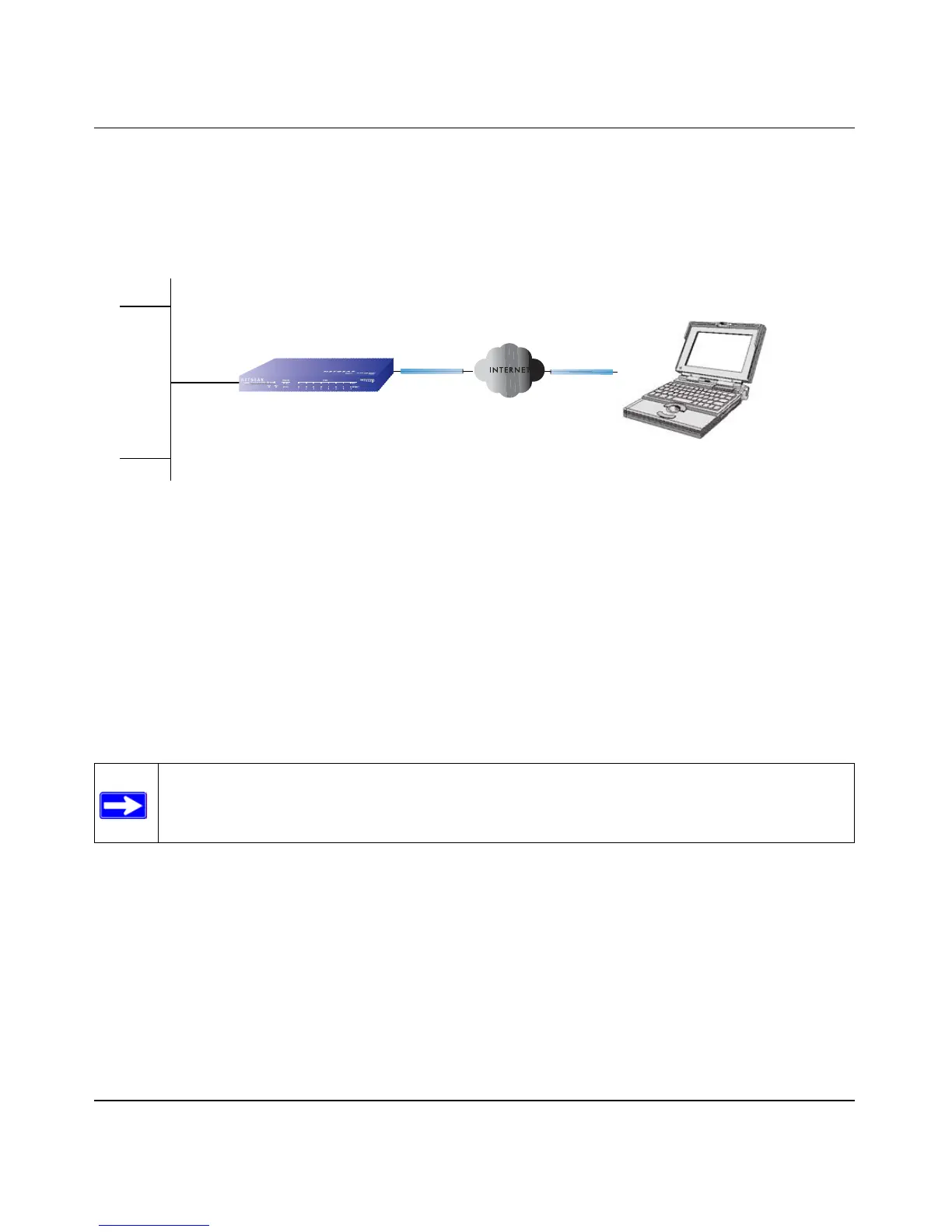

Figure E-19: LAN to PC VPN access from an FVS318v3 to a VPN Client
Use this scenario illustration and configuration screens as a model to build your configuration.
1. Log in to the FVS318v3 labeled Gateway A as in the illustration (Figure E-19).
Log in at the default address of http://192.168.0.1 with the default user name of admin and
default password of password (or using whatever password and LAN address you have
chosen).
2. Use the VPN Wizard to configure the FVS318v3 at Gateway A.
Follow the steps illustrated in Figure E-19 (the resulting parameter screens are shown in
Figure E-20):
• Connection Name: Scenario_1 (in this example)
• Pre-Shared Key: 12345678 (in this example), must be the same at both VPN tunnel
endpoints
• Connection Type: A Remote VPN Client
Note: Based on the network addresses used in this example, you would log in to the
LAN IP address of http://10.5.6.1 at Gateway A.
Gateway A
14.15.16.17
10.5.6.0/24
10.5.6.1
WAN IP
WAN IP
LAN IP
Client B
0.0.0.0
Router
Scenario 1
PC
(running NETGEAR
ProSafe VPN Client)

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
