Reference Manual for the ProSafe VPN Firewall FVS318v3
E-2 VPN Configuration of NETGEAR FVS318v3
January 2005

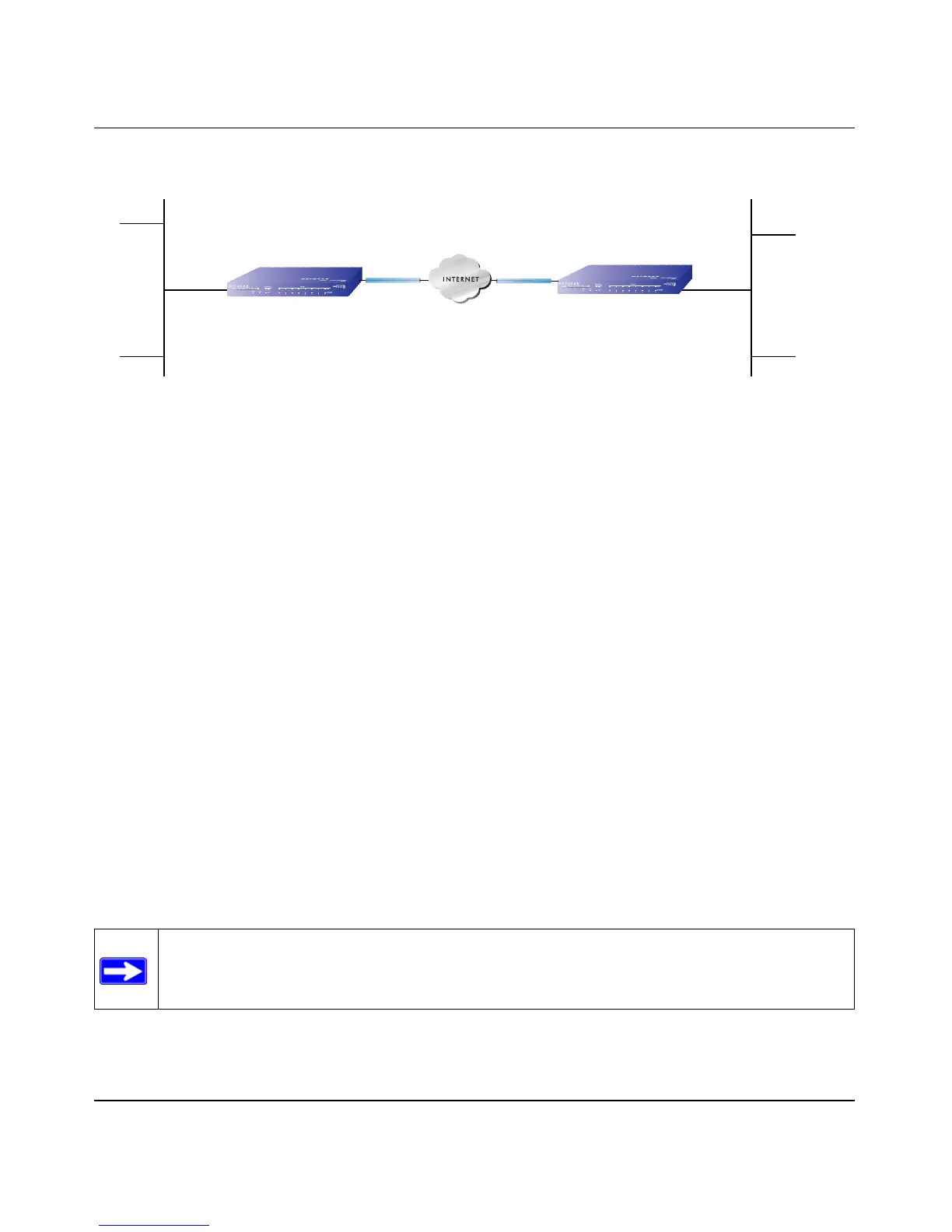

Figure E-1: Addressing and subnets used for this case study
Configuring the Gateways
Configure each gateway as summarized in Figure E-2 and Figure E-3:
1. Configure Gate A.
a. Log in to the router at Gateway A.
b. Use the VPN Wizard to configure this router.
Enter the requested information as prompted by the VPN Wizard:
• Connection Name and Pre-Shared Key
• Remote WAN IP address
• Remote LAN IP Subnet: IP Address and Subnet Mask:
2. Repeat the above steps for Gateway B.
a. Log in to the router at Gateway B.
b. Use the VPN Wizard to configure this router.
Enter the requested information as prompted by the VPN Wizard.
Note: The WAN and LAN IP addresses must be unique at each end of the VPN tunnel.
Gateway A
22.23.24.25
14.15.16.17
10.5.6.0/24 172.23.9.0/24
172.23.9.110.5.6.1
WAN IP
WAN IP
LAN IPLAN IP
Gateway B
VPN Consortium Example
Network Interface Addressing

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
