NETGEAR FVS318 - ProSafe VPN Firewall Router User Manual

Reference Manual for the ProSafe VPN Firewall FVS318v3
Basic Virtual Private Networking 5-27
January 2005

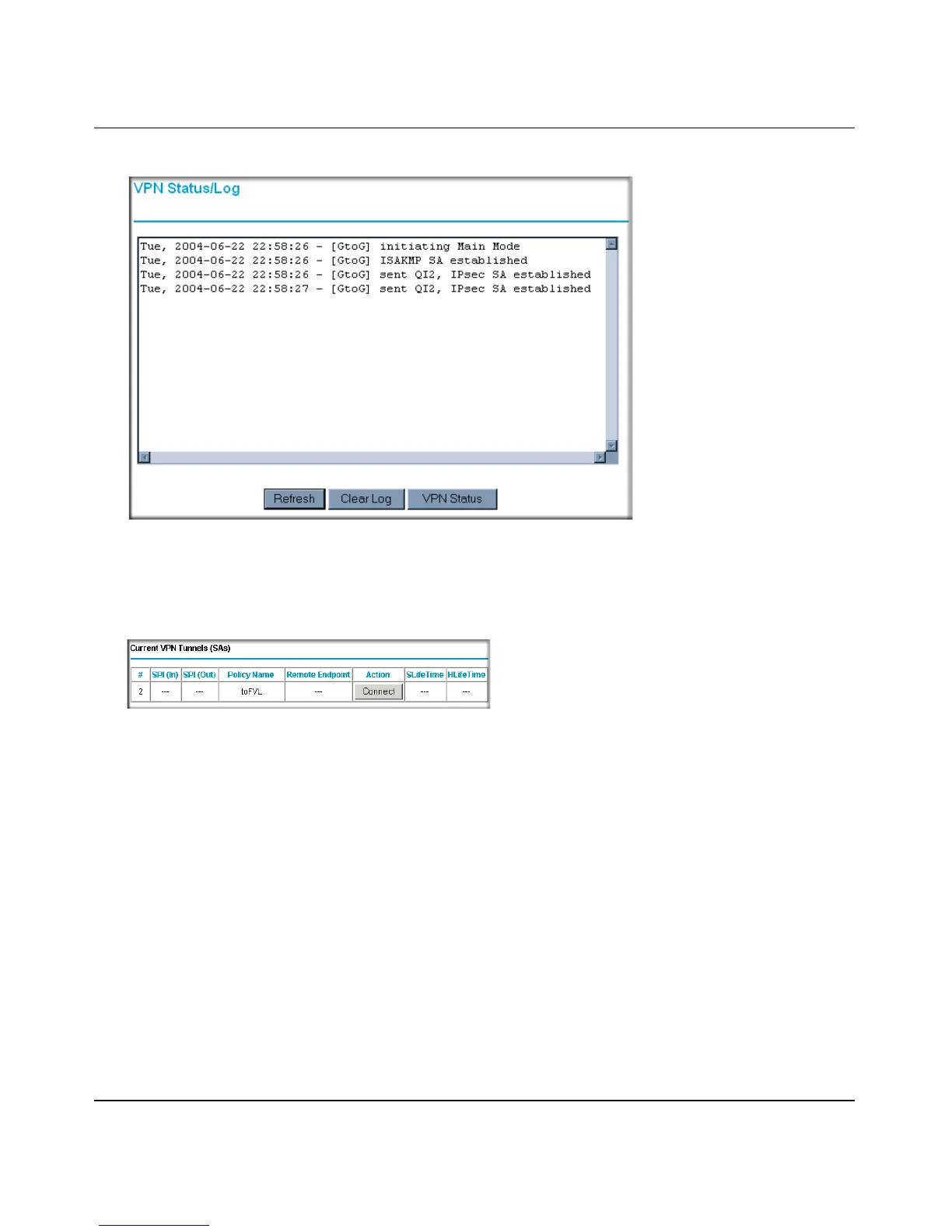

Figure 5-32: VPN Status/Log screen
3.
Click VPN Status (Figure 5-32) to get the Current VPN Tunnels (SAs) screen (Figure 5-33).
Click Connect for the VPN tunnel you want to activate.
Figure 5-33: Current VPN Tunnels (SAs) screen
Activate the VPN Tunnel by Pinging the Remote Endpoint
Note: This section uses 192.168.3.1 for an example remote endpoint LAN IP address.
To activate the VPN tunnel by pinging the remote endpoint (192.168.3.1), do the following steps
depending on whether your configuration is client-to-gateway or gateway-to-gateway:
• Client-to-Gateway Configuration—to check the VPN Connection, you can initiate a request
from the remote PC to the FVS318v3’s network by using the “Connect” option in the
NETGEAR ProSafe menu bar. The NETGEAR ProSafe client will report the results of the
attempt to connect. Since the remote PC has a dynamically assigned WAN IP address, it must
initiate the request.
To perform a ping test using our example, start from the remote PC:

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
