Reference Manual for the ProSafe VPN Firewall FVS318v3
Preparing Your Network D-17
January 2005
2. If not already selected, select Built-in Ethernet in the Configure list.
3. If not already selected, Select Using DHCP in the TCP/IP tab.
4. Click Save.

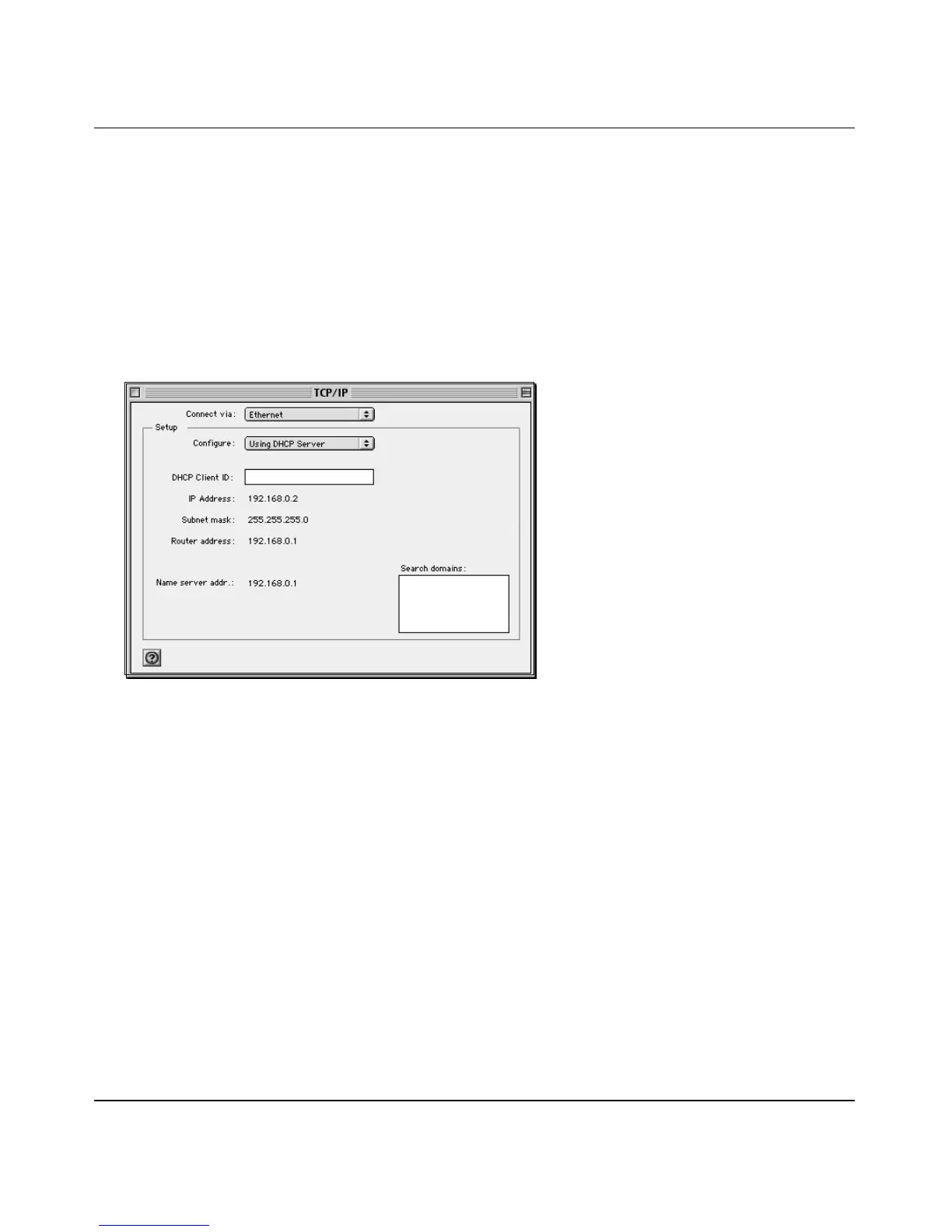

Verifying TCP/IP Properties for Macintosh Computers
After your Macintosh is configured and has rebooted, you can check the TCP/IP configuration by
returning to the TCP/IP Control Panel. From the Apple menu, select Control Panels, then TCP/IP.
The panel is updated to show your settings, which should match the values below if you are using
the default TCP/IP settings that NETGEAR recommends:
• The IP Address is between 192.168.0.2 and 192.168.0.254
• The Subnet mask is 255.255.255.0
• The Router address is 192.168.0.1
If you do not see these values, you may need to restart your Macintosh or you may need to switch
the “Configure” setting to a different option, then back again to “Using DHCP Server”.

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
