NETGEAR FVS318 - ProSafe VPN Firewall Router User Manual

Reference Manual for the ProSafe VPN Firewall FVS318v3
VPN Configuration of NETGEAR FVS318v3 E-13
January 2005
The FVS318v3-to-FVS318v2 Case
Configuring the VPN Tunnel
Note: This scenario assumes all ports are open on the FVS318v3 and FVS318v2.

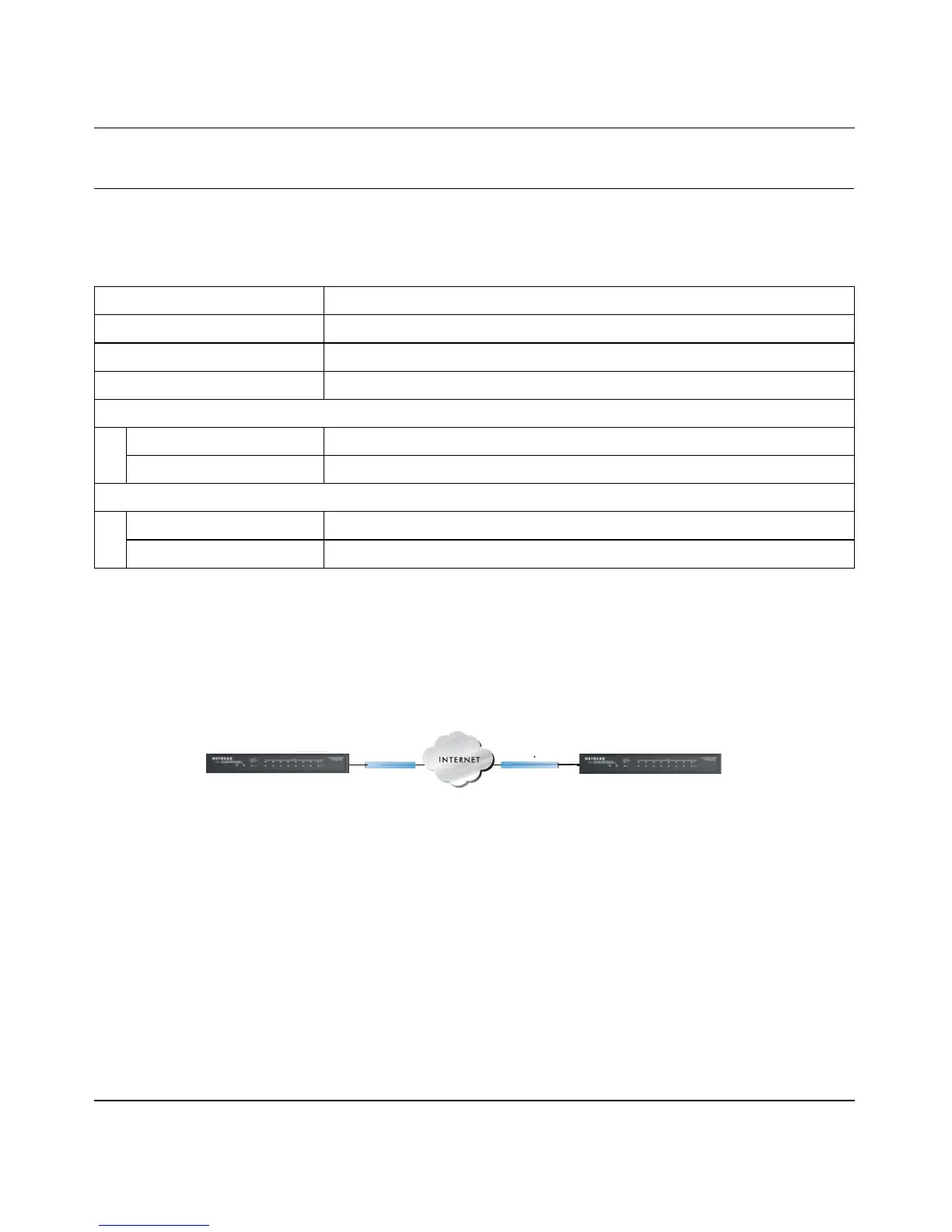

Figure E-10: LAN to LAN VPN access from an FVS318v3 to an FVS318v2
Use this scenario illustration and configuration screens as a model to build your configuration.
1. Log in to the FVS318v3 labeled Gateway A as in the illustration (Figure E-10).
Log in at the default address of http://192.168.0.1 with the default user name of admin and
default password of password (or using whatever password and LAN address you have
chosen).
Table E-2. Policy Summary
VPN Consortium Scenario: Scenario 1
Type of VPN LAN-to-LAN or Gateway-to-Gateway
Security Scheme: IKE with Preshared Secret/Key
Date Tested: November 2004
Model/Firmware Tested:
NETGEAR-Gateway A FVS318v3 with firmware version v3.0_14
NETGEAR-Gateway B FVS318v2 with firmware version V2.4
IP Addressing:
NETGEAR-Gateway A Static IP address
NETGEAR-Gateway B Static IP address
FVS318v2
Gateway B
Scenario 1
14.15.16.17 22.23.24.25
WAN IP
WAN IP
172.23.9.1/2410.5.6.1/24
LAN IP
LAN IP
Gateway A
FVS318v3

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
