Reference Manual for the ProSafe VPN Firewall FVS318v3
E-12 VPN Configuration of NETGEAR FVS318v3
January 2005

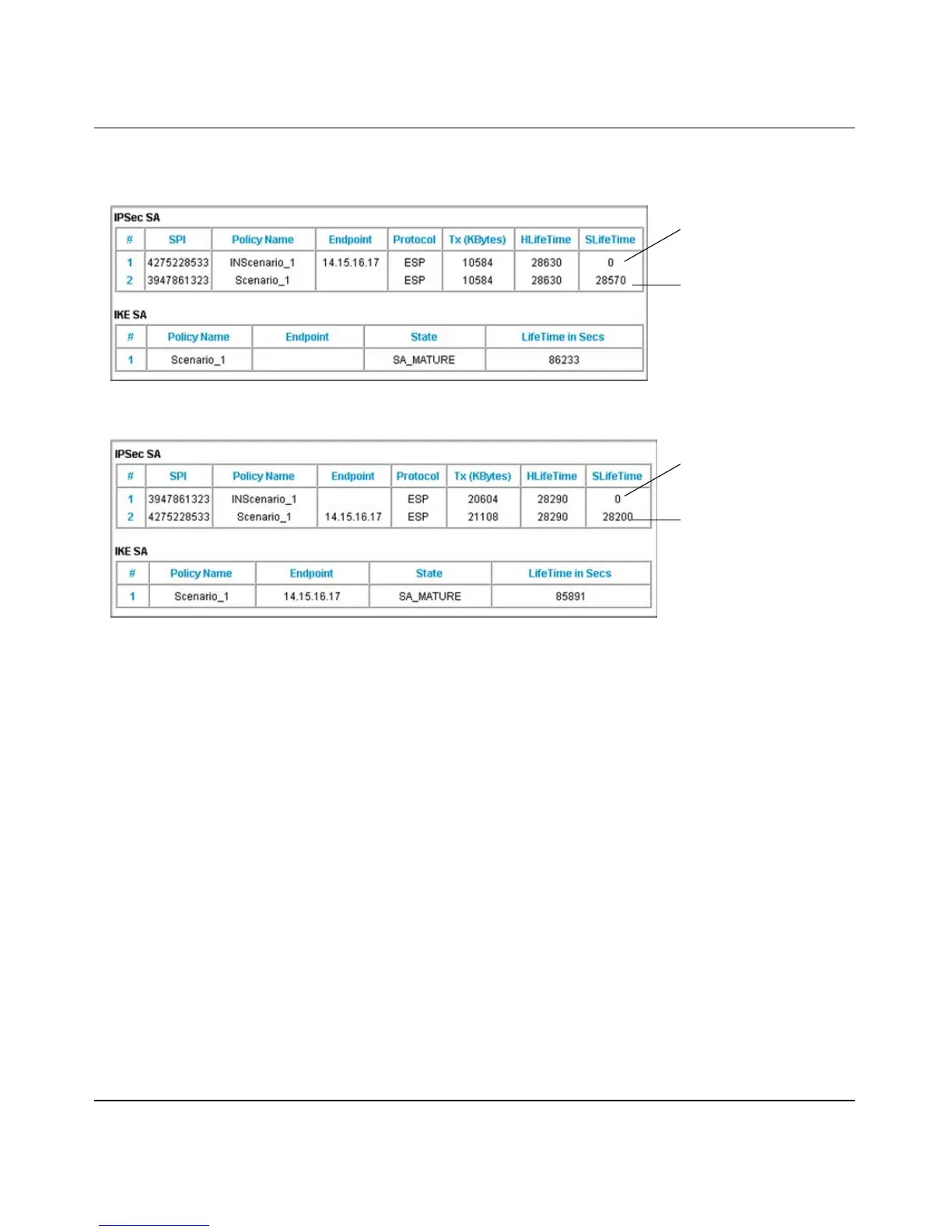

Figure E-9: VPN Status for the FVS318v3 routers at Gateway A and Gateway B
22.23.24.25
22.23.24.25
Status of VPN tunnel
from Gateway B
Status of VPN tunnel
to Gateway B
VPN Status at Gateway A (FVS318v3)
VPN Status at Gateway B (FVS318v3)
Status of VPN tunnel
from Gateway A
Status of VPN tunnel
to Gateway A
22.23.24.25
