NETGEAR FVS318 - ProSafe VPN Firewall Router User Manual

Reference Manual for the ProSafe VPN Firewall FVS318v3
Maintenance 7-7
January 2005
Configuration File Management
The configuration settings of the FVS318v3 VPN Firewall are stored within the firewall in a
configuration file. This file can be saved (backed up) to a user’s PC, retrieved (restored) from the
user’s PC, or cleared to factory default settings.
From the main menu of the browser interface, under the Maintenance heading, select the Settings
Backup heading to bring up the menu shown below.

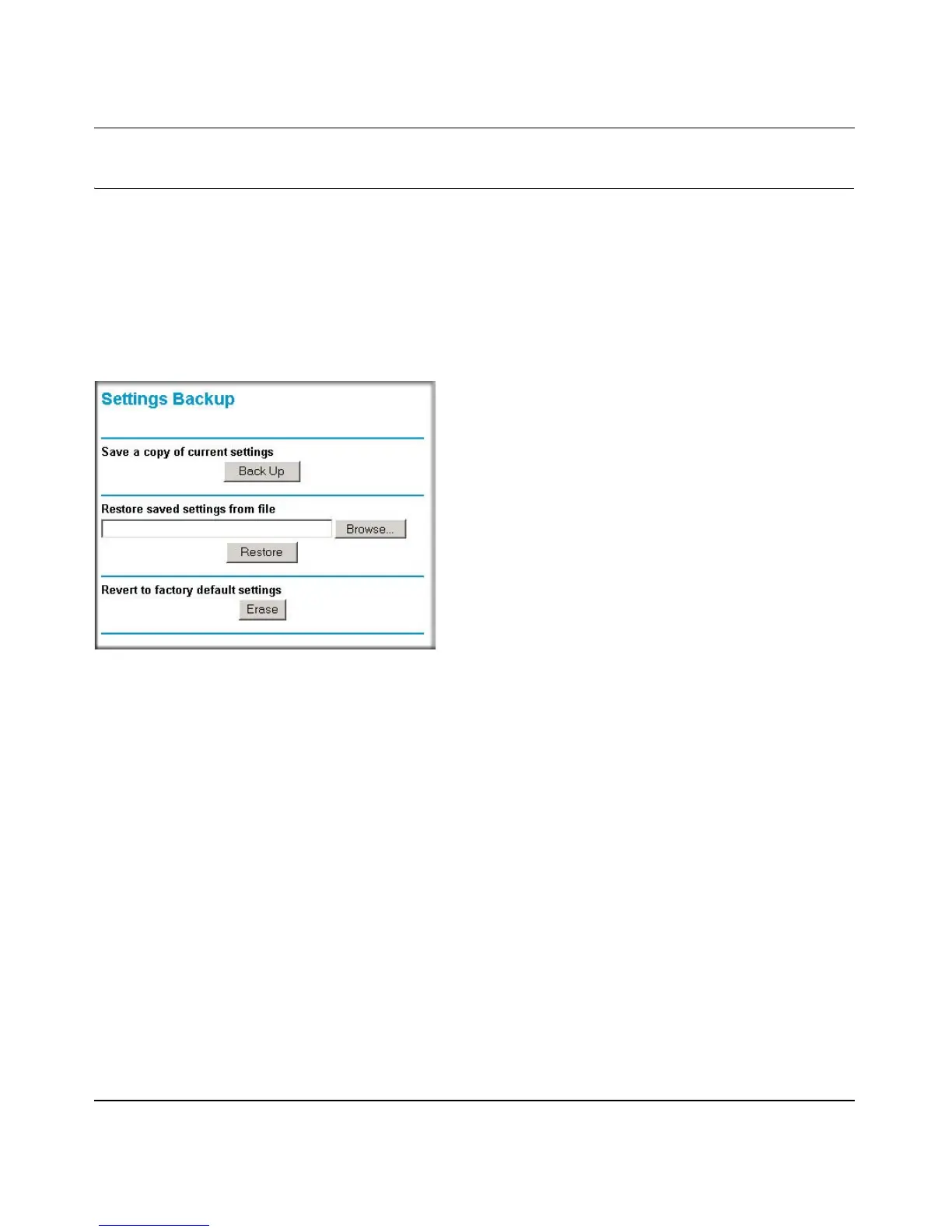

Figure 7-6: Settings Backup menu
You can use the Settings Backup menu to back up your configuration in a file, restore from that
file, or erase the configuration settings.
Backing Up the Configuration
To save your settings, select the Backup tab. Click the Backup button. Your browser will extract
the configuration file from the firewall and prompts you for a location on your PC to store the file.
You can give the file a meaningful name at this time, such as sanjose.cfg.
Restoring the Configuration
To restore your settings from a saved configuration file, enter the full path to the file on your PC or
click the Browse button to browse to the file. When you have located it, click the Restore button
to send the file to the firewall. The firewall will then reboot automatically.

NETGEAR FVS318 - ProSafe VPN Firewall Router Specifications

General

Model	FVS318
Category	Firewall
WAN Ports	1
LAN Ports	8
VPN Pass-through	Yes
VPN Tunnels	8
SPI Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
VPN Protocol	IPSec
Compliant Standards	IEEE 802.3, IEEE 802.3u
RAM	8 MB
Flash Memory	4 MB
Power Supply	External power adapter
Network / Transport Protocol	TCP/IP, UDP
Encryption Algorithm	3DES
Features	NAT support, URL filtering, DHCP server, DoS attack prevention
Status Indicators	Port status, power
