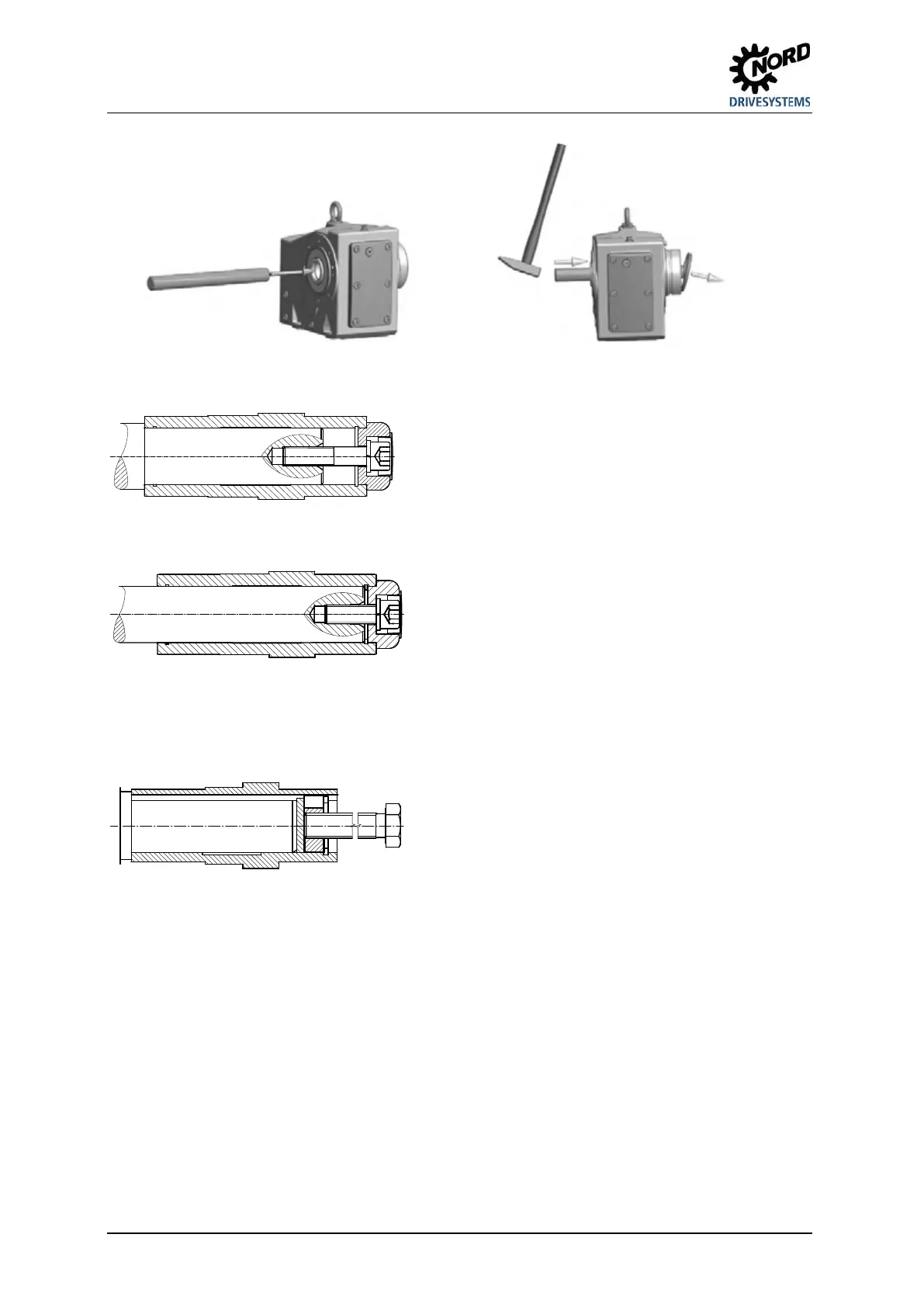

Figure 8: Removing the factory-fitted closing cap
Figure 9: Gear unit mounted to shaft with a shoulder using the fastening element
Figure 10: Gear unit mounted to shaft without a shoulder using the fastening element
A gear unit can be dismantled from a shaft with a shoulder using the following device, for example.
Figure 11: Dismantling using dismantling device
When assembling push-on gears with torque supports, the support must not be distorted. Tension-free
mounting is aided by the rubber buffer (Option G or VG).
