6 Appendix
B 1000 en-2518 43
6 Appendix
Pos: 66 /Anlei tunge n/Ge triebe /6. An hang/B aufor men un d Wartu ng [_Tit el] @ 3\mod_1370592561316_388.docx @ 76423 @ 2 @ 1
6.1 Versions and maintenance
Pos: 67 /A nl eitu nge n/G etr iebe /6. An hang /Ba ufor me n un d W artu ng_T eil 1 [T e xt_B1 000] @ 3\mod_1369311740911_388.docx @ 71851 @ 55 @ 1

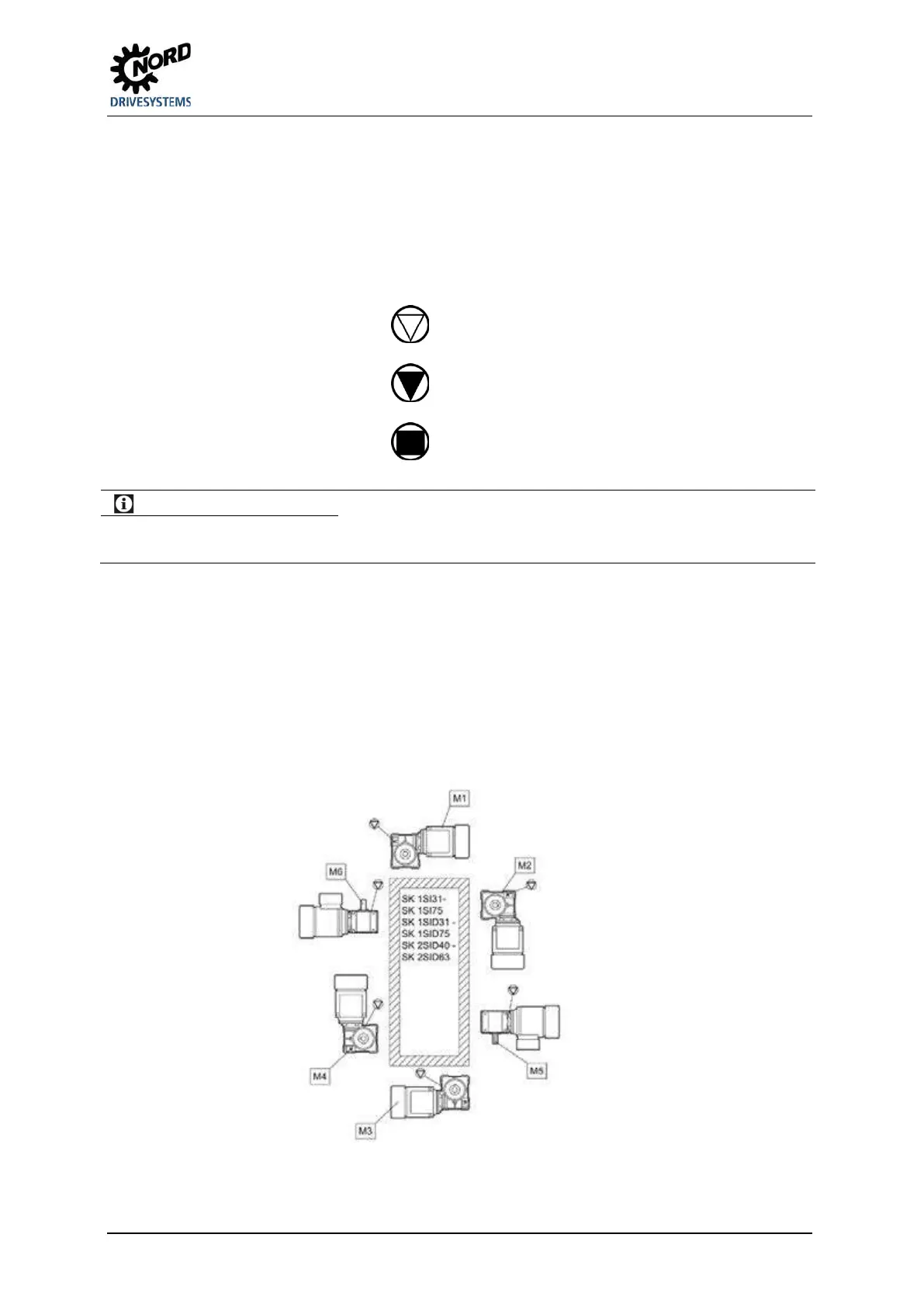

Explanation of symbols for the following version illustrations:
Venting
Oil level
Oil drain
Information
Gear unit - Lubrication
SK 320, SK 172, SK 272, SK 372 as well as SK 273 and SK 373, SK 01282 NB, SK 0282 NB, SK 1382 NB and
UNIVERSAL / MINIBLOC gear units are lubricated for life. These gear units do not have an oil filler screw.
UNIVERSAL / MINIBLOC worm gear units
NORD UNIVERSAL / MINIBLOC worm gear units are suitable for all installation positions. They have
an oil filler which is independent of the configuration.
As an option, types SI and SMI can be equipped with a vent screw. Gear units with vents must be
installed in the stated position.
Types SI, SMI, S, SM and SU as 2-stage gear unit types and types SI, SMI as worm gear units for
direct motor mounting have an oil filler which depends on the configuration and must be installed in
the stated position.
155
