13 DISMANTLING AND ASSEMBLY
OF SPECIAL UNITS
PAGE
13.11R
text no.
R 13105-7/8
issued: 14.10.2019
Revision: 23
copy to:

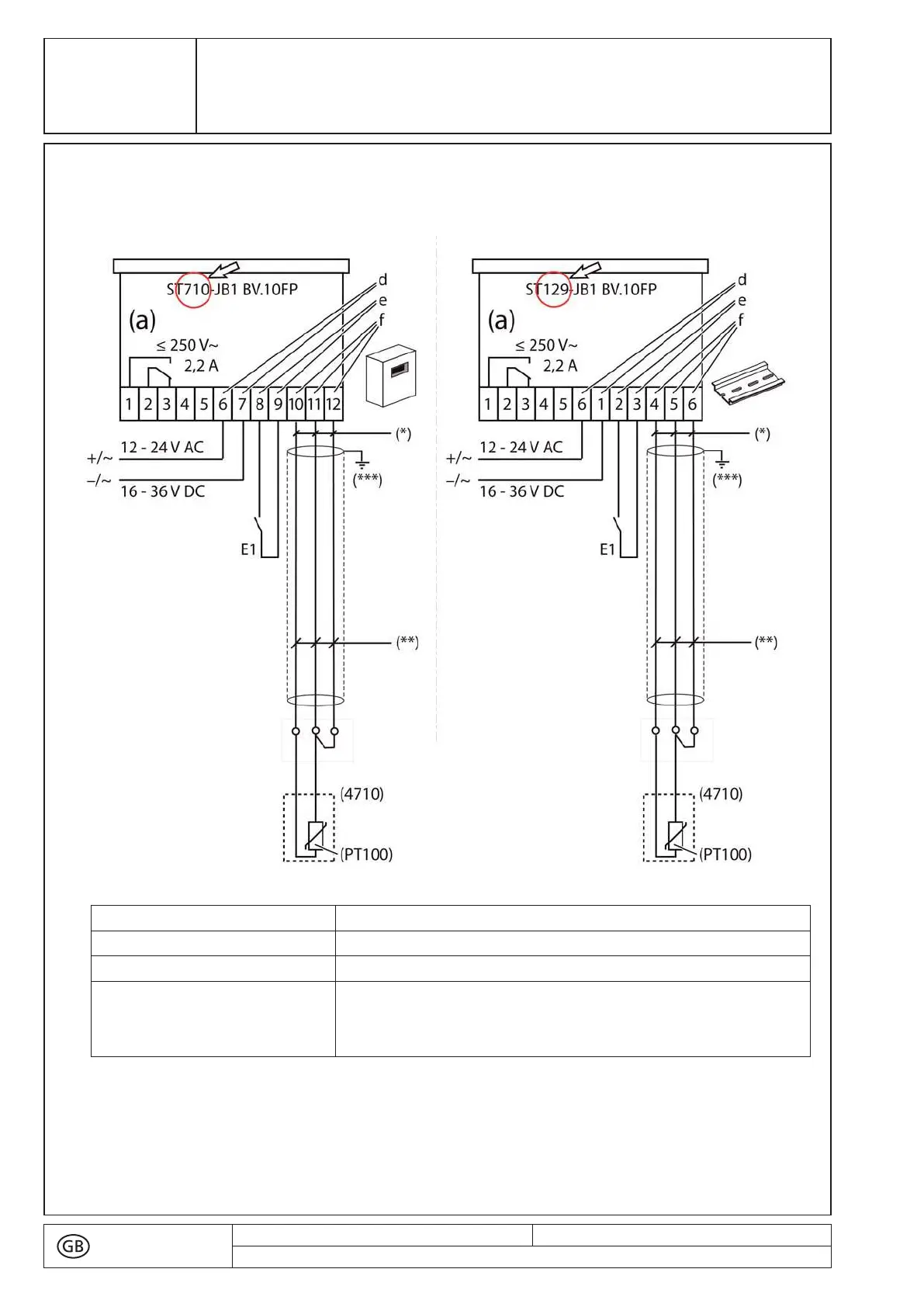

With 3-wire connecting (for cable lengths from 4 to 100 m)
a:
temperature controller
4710:
snap elbow
d:
power supply
PT100:
temperature sensor
e:
switching input (E1)
f:
sensor circuit
*) install separated from power lines
**) ≥ 1,5 mm
2
, maximum length 100 m
***) shielded
