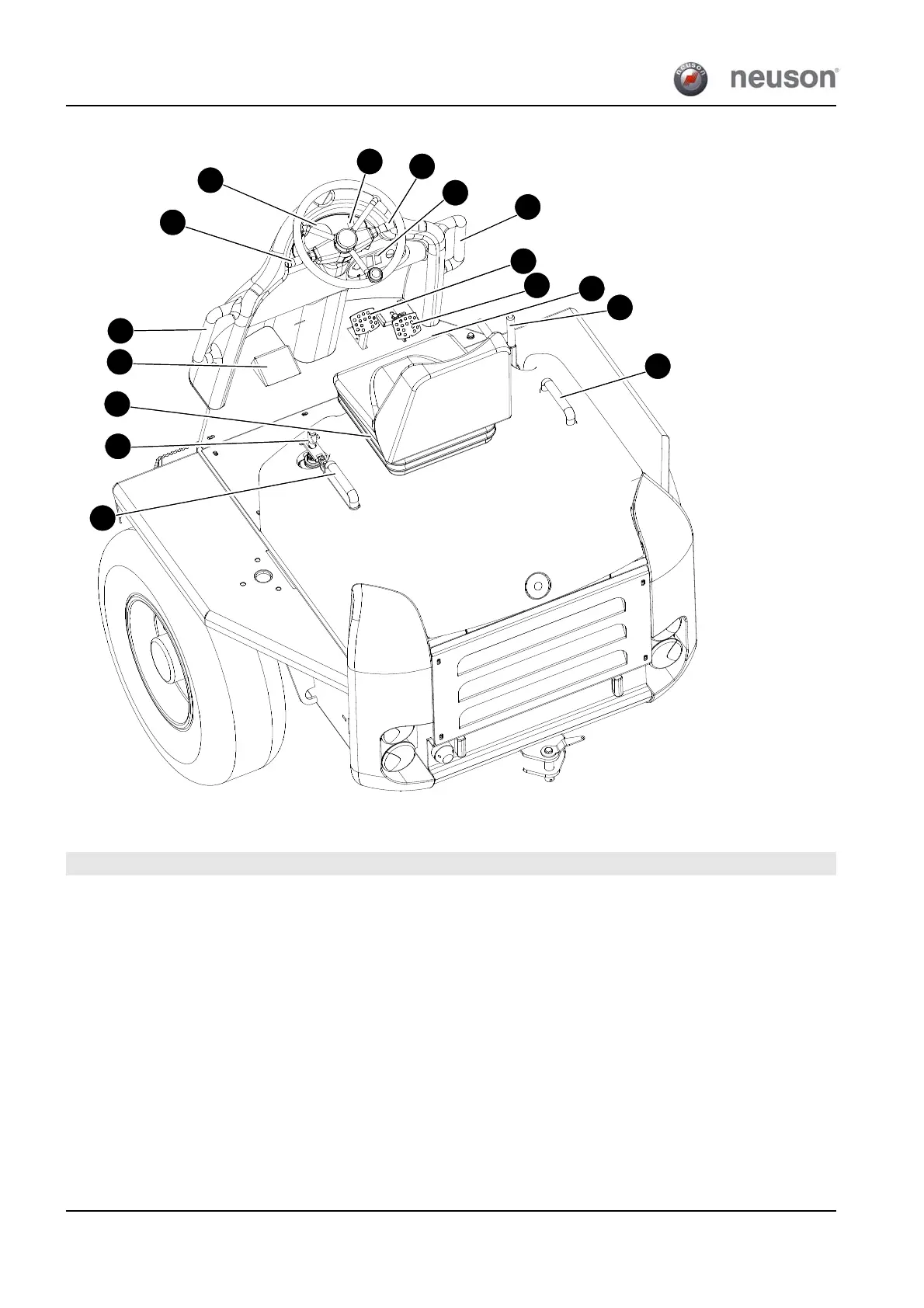

3.3 Control stand overview
27
29
33
34
28
30
31
32
26
37
38
38
36
35
38
38
Rollbar not included in this figure for a
clearer graphic representation.
Pos.
Description
26 Accelerator pedal
27 Service brake
28 Parking brake
29 Lever – backrest adjustment
30 Forwards-reverse control
31 Turn indicator lever – horn
32 Round display element
33 Lever for horizontal seat adjustment
34 Skip control lever
35 Light switch
36 Low speed switch (turtle)
37 Footrest
38 Handle
