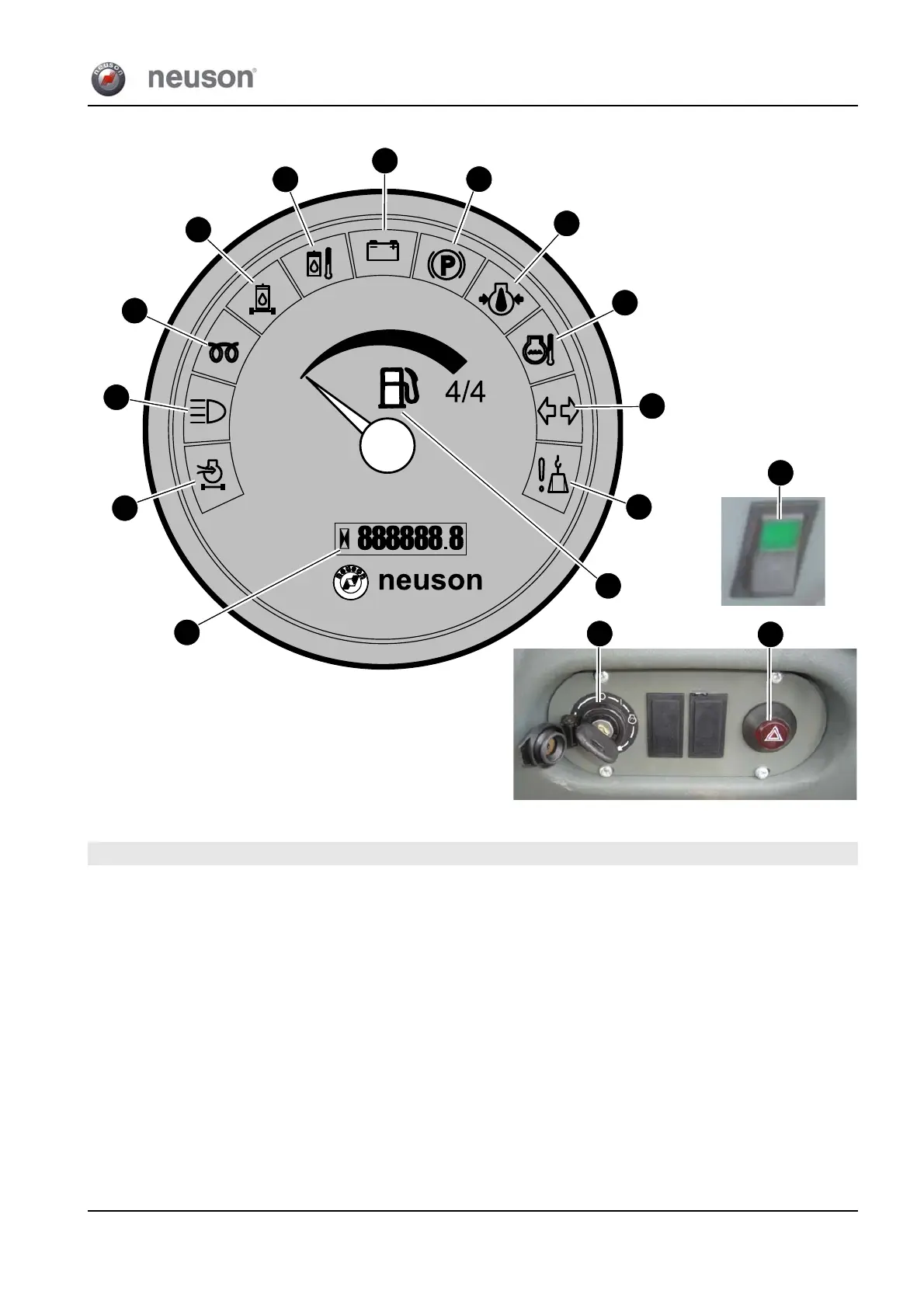

3.4 Instrument panel overview
46
48
49
50
42
43
44
51
52
45
47
53
41
54
39
40
Pos.
Description
39 Hazard warning switch
40 Preheating start switch
41 Hour meter
42 Not assigned
43 High beam telltale (blue)
44 Preheating telltale (yellow)
45 Telltale (red) – hydraulic oil filter
46 Not assigned
47 Telltale (red) – alternator charge function
48 Parking brake telltale (red)
49 Telltale (red) – engine oil pressure
50 Telltale (red) – coolant temperature
51 Turn indicator telltale (green)
52 Not assigned
53 Fuel level indicator
54 Low speed switch (turtle)
