Specifications
Relays
The relays are located in the relay box under the the floor panel of the control stand
6.10 Tyres
6.11 Noise levels
Measurement of sound power level according to EC Directive 2000/14 EC.
Noise level at the driver's ear measured according to EC Directives 84/532/EEC,
89/514/EEC and 95/27/EEC.
Measurements carried out on asphalted surface.

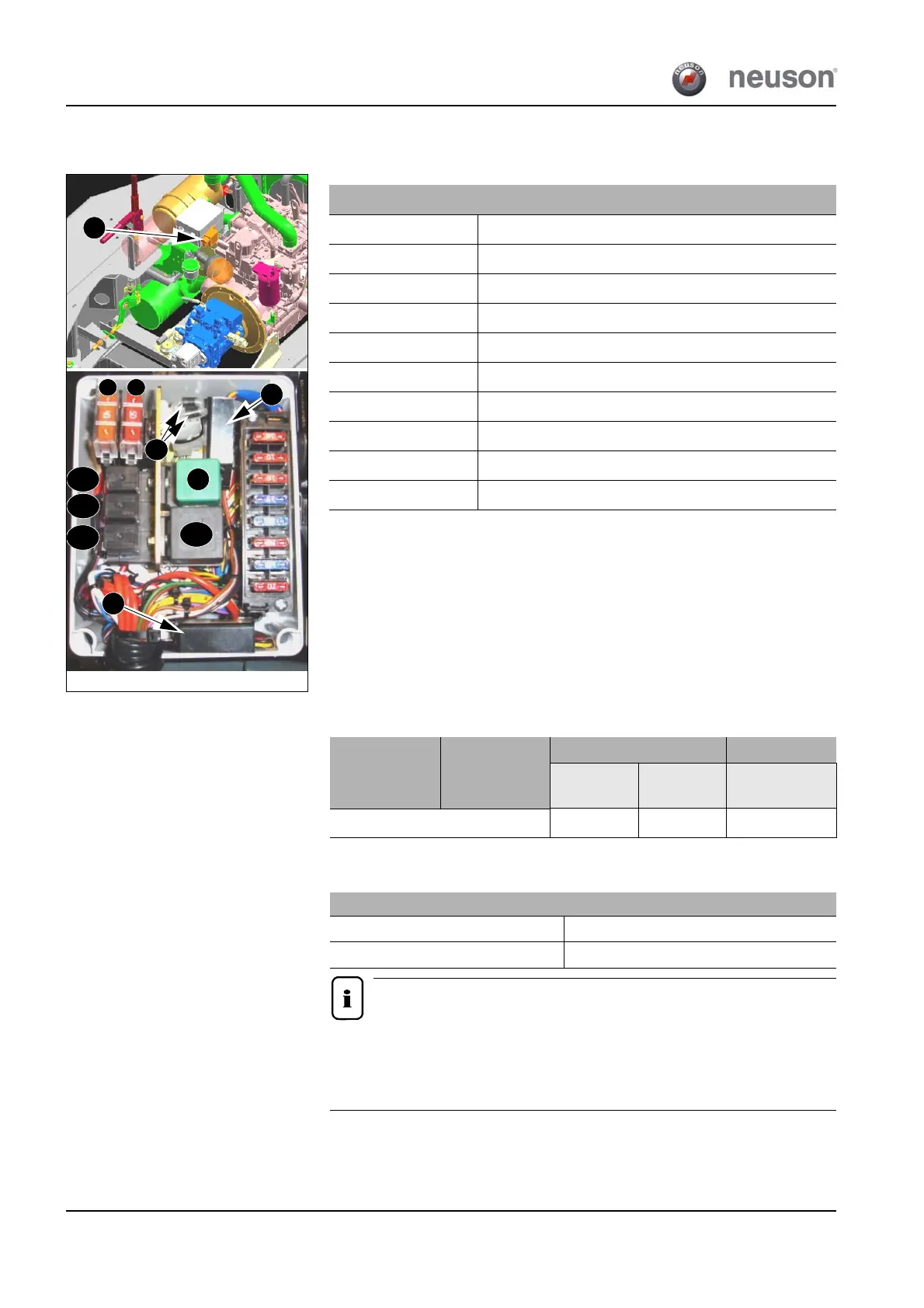

Fig. 44: Relays
K9
K 10
F2F1
V2
K6
K 34
K 33
K 32
K8
K7
Switching relay no. Protected circuit
F1, F2 – Main fuses
K 6 – Preheating time lag relay
K7 – Start high current relay
K 8 – Cutoff solenoid time lag relay
K 9 – Cutoff solenoid switching relay
K 10 – Turn indicator relay
K32 – Start interlock relay
K33 – Low beam relay
K34 – High beam relay
V2 – Diodes
Type Tyre size
Tyre pressure
Front Rear
Load-bearing
capacity
3001 11.5/80 x 15.3
4 bar 4 bar PR 10
Sound power level
3001
Sound power level (L
WA
)
101 dB (A)
Sound pressure level (L
PA
)
85 dB (A)
