Maintenance
Swivel skip maintenance prop
Mount the red maintenance prop before you carry out maintenance work with
the skip raised.
Mount the maintenance prop as follows:
☞ Raise the skip
☞ Remove safety pin B from pin C
☞ Lower the skip until maintenance prop A rests on swivelling console D
Mount the maintenance prop back onto the skip, in the reverse order, if it is no longer
needed!

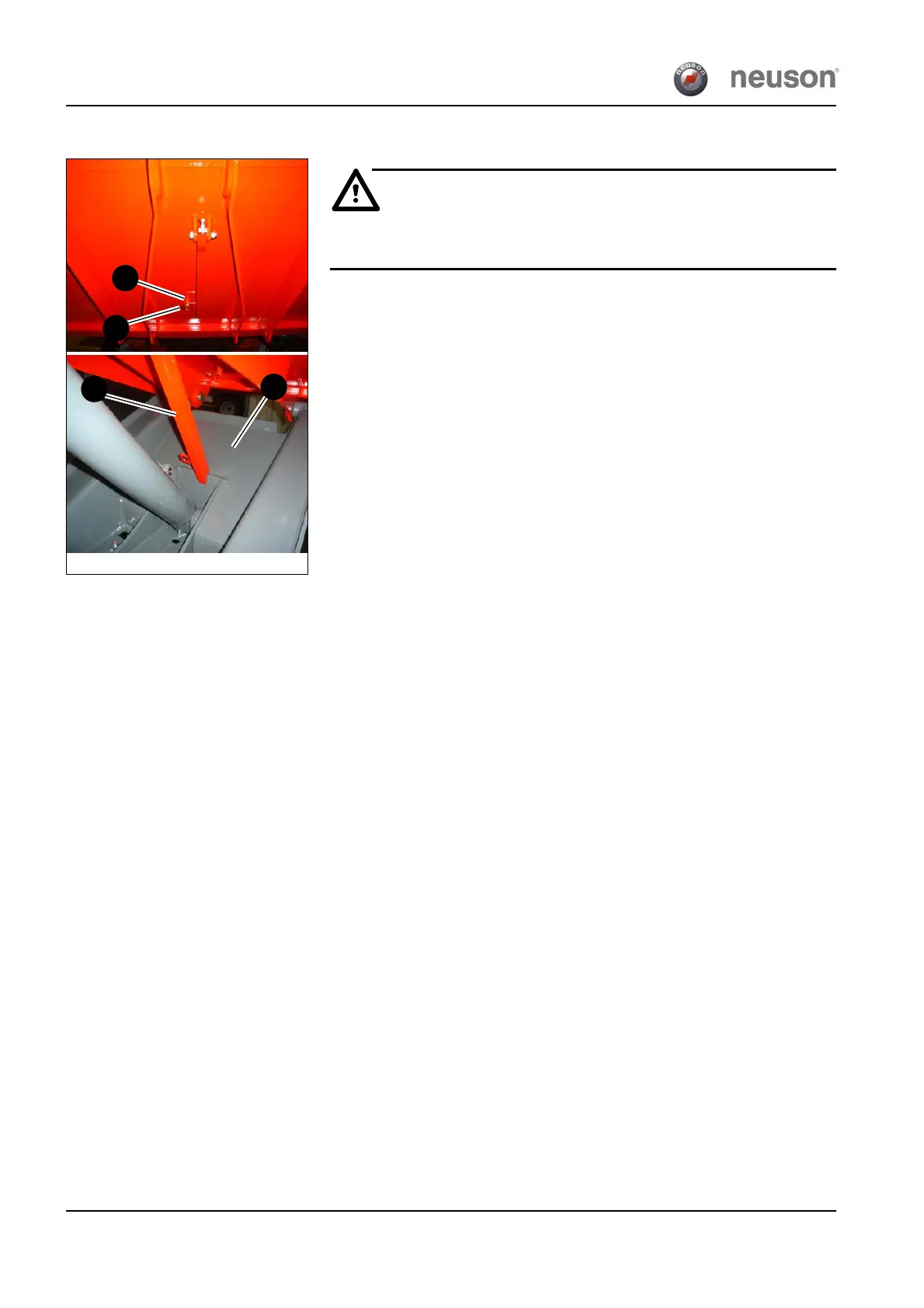

Fig. 22: Swivel skip maintenance prop
D
B
C
A
