Neuson 3001 - Engine Cover

BA 3001 En – Edition 2.0 * 345001b330.fm 3-21
Operation
Unfastening the seat belt:
☞ Unfasten seat belt A as follows:
• Hold the seat belt
• Press red button D on buckle C
➥Latch B is released from buckle C by spring pressure
• Slowly return the seat belt to the retractor
Engine cover
Opening:
☞ Stop the machine
☞ Let the engine cool down
☞ Press buckle A of the engine cover downwards and pull shackle C to the front
☞ Pull the engine cover upwards with handles B until the red safety prop S locks into
place
Closing:
☞ Press safety prop S to the rear
☞ Press down the engine cover
☞ Press buckle A forwards and hitch shackle C into the hook at the same time
☞ Press lock A to the rear
Locking and unlocking:
The engine cover can be locked with an external lock in eyelet D
Important!
Do not lock the engine cover during machine operation!
The emergency switch is located underneath the engine cover!

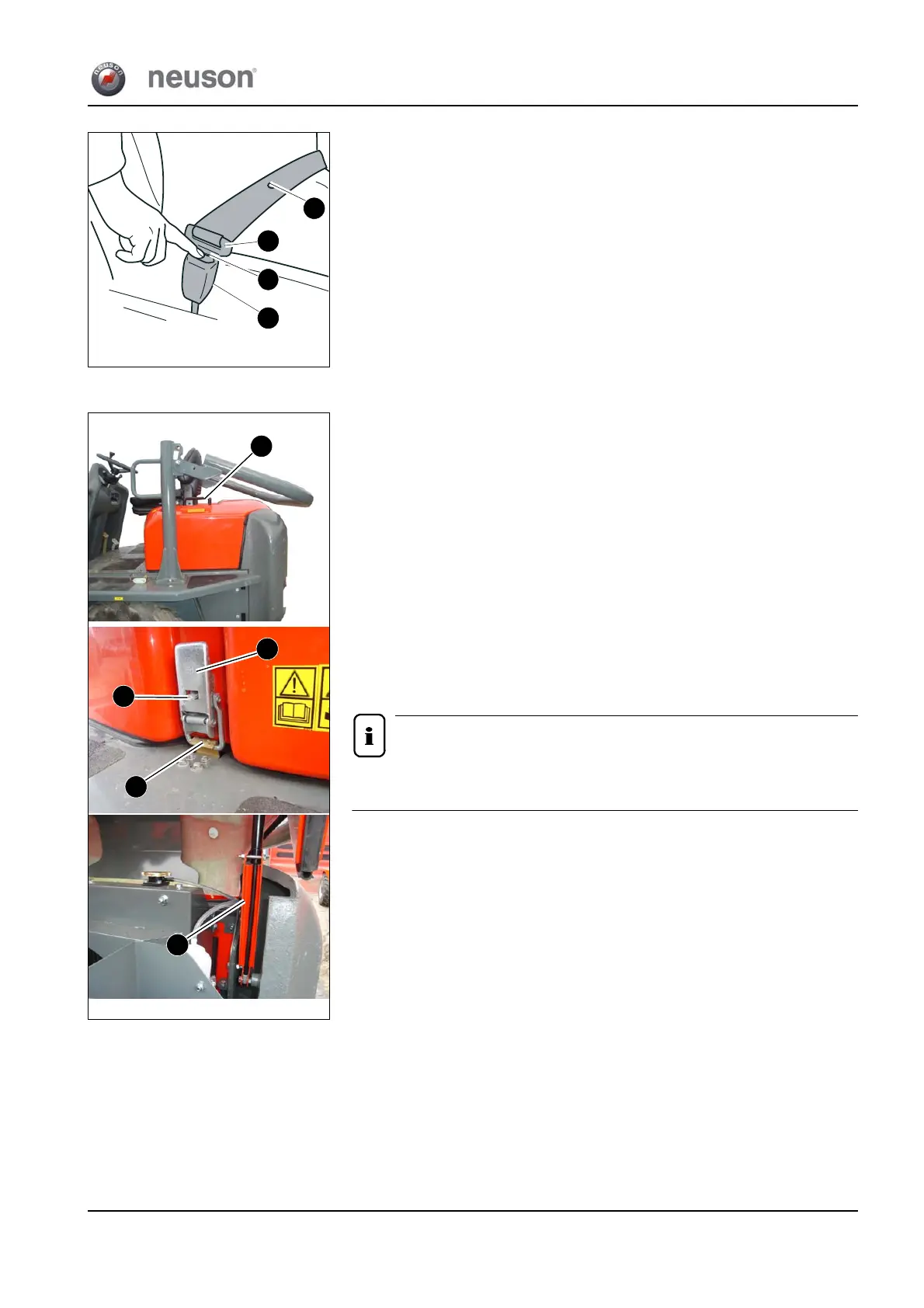

Fig. 38: Unfastening the seat belt
A
C
B
D
Fig. 39: Engine cover lock
A
D
C
B
S
