BA 3001 En – Edition 2.0 * 345001b330.fm 3-15
Operation

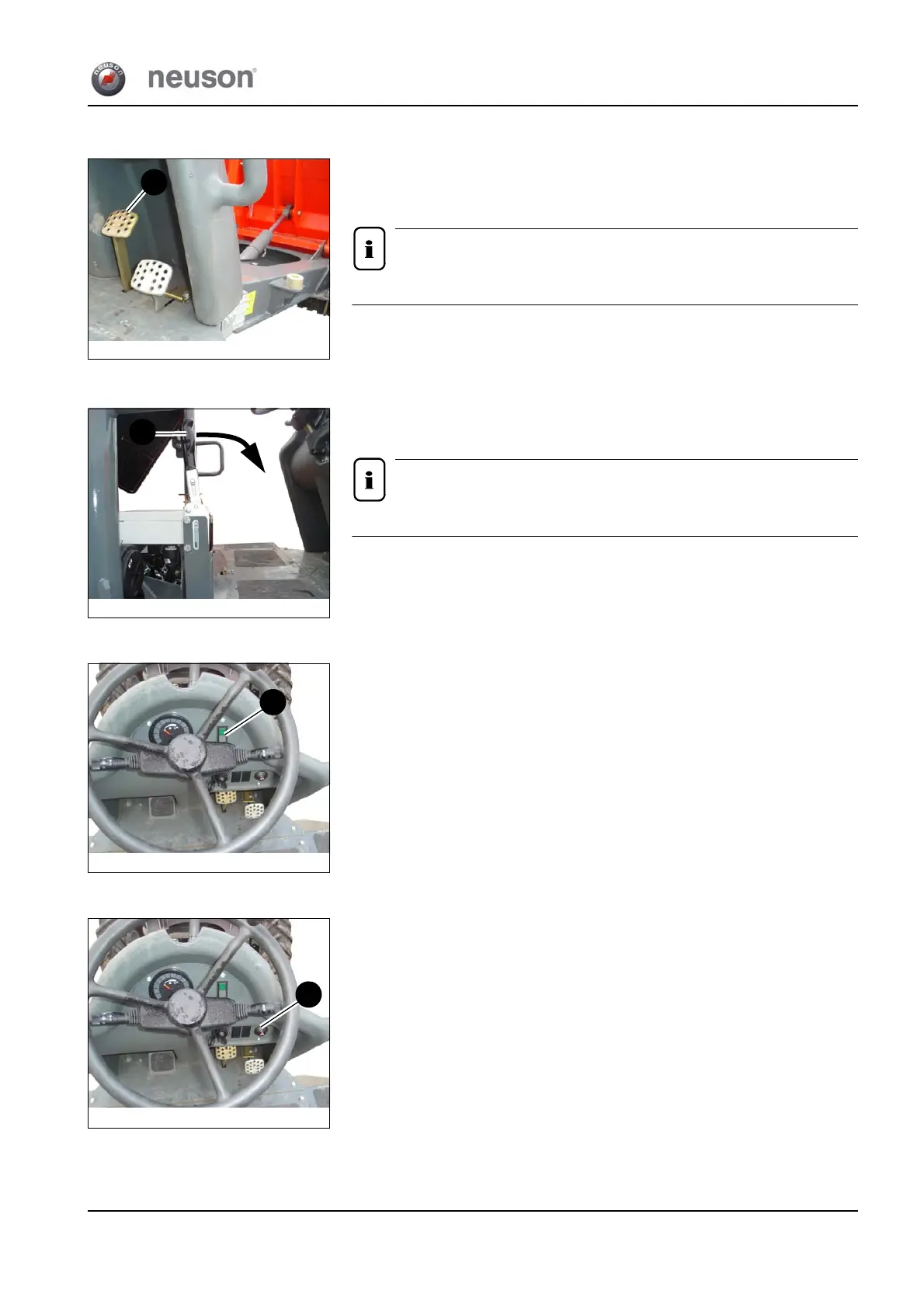

Hydraulic brake
Hydrostatic drive.
Hydraulic service brake 27 with fully enclosed wet multdisc brakes in the front axle,
self-adjusting, braking effect on all four wheels.
Use service brake 27 on slopes to slow down the machine as required.
Mechanical brake
Parking brake with mechanical braking effect on the front axle.
Press parking brake 28 forwards to release it.
Hitting parking brake 28 with your hand to release it can damage the lever!
Pull up the lever to apply parking brake 28.
3.7 Low/high speed
Use switch 54 to switch over between low and high speed.
The green telltale (turtle) in the switch comes on if low speed is enabled.
The green telltale in the switch goes out if high speed is enabled.
3.8 Hazard warning system
Pressing switch 39 switches the hazard warning system on and off.
Fig. 28: Low/high speed
54
Fig. 29: Hazard warning system
39
