BA 3001 En – Edition 2.0 * 345001b330.fm 3-27
Operation
3.17 Centre pivot prop
Put the red centre-pivot prop in place before loading the machine.
The centre pivot prop connects the front and rear chassis to prevent steering movements
(via the articulated joint) when crane handling the dumper.
Procedure to follow:
☞ Remove the spring plug from pin B
☞ Turn centre pivot prop A towards the rear chassis
☞ Secure centre pivot prop A with the spring plug and pin B
Before putting the machine into operation again, mount the centre pivot prop back
onto the front chassis again by means of pin B.
3.18 Locking the control levers
Lock the control lever for the skip during road travel!
☞ This avoids unintentional actuation of the skip.
Lock as follows:
☞ Remove split pin A from bracket B
☞ Fold bracket B to the front
☞ Insert split pin A in bracket B
Unlock in the reverse order!

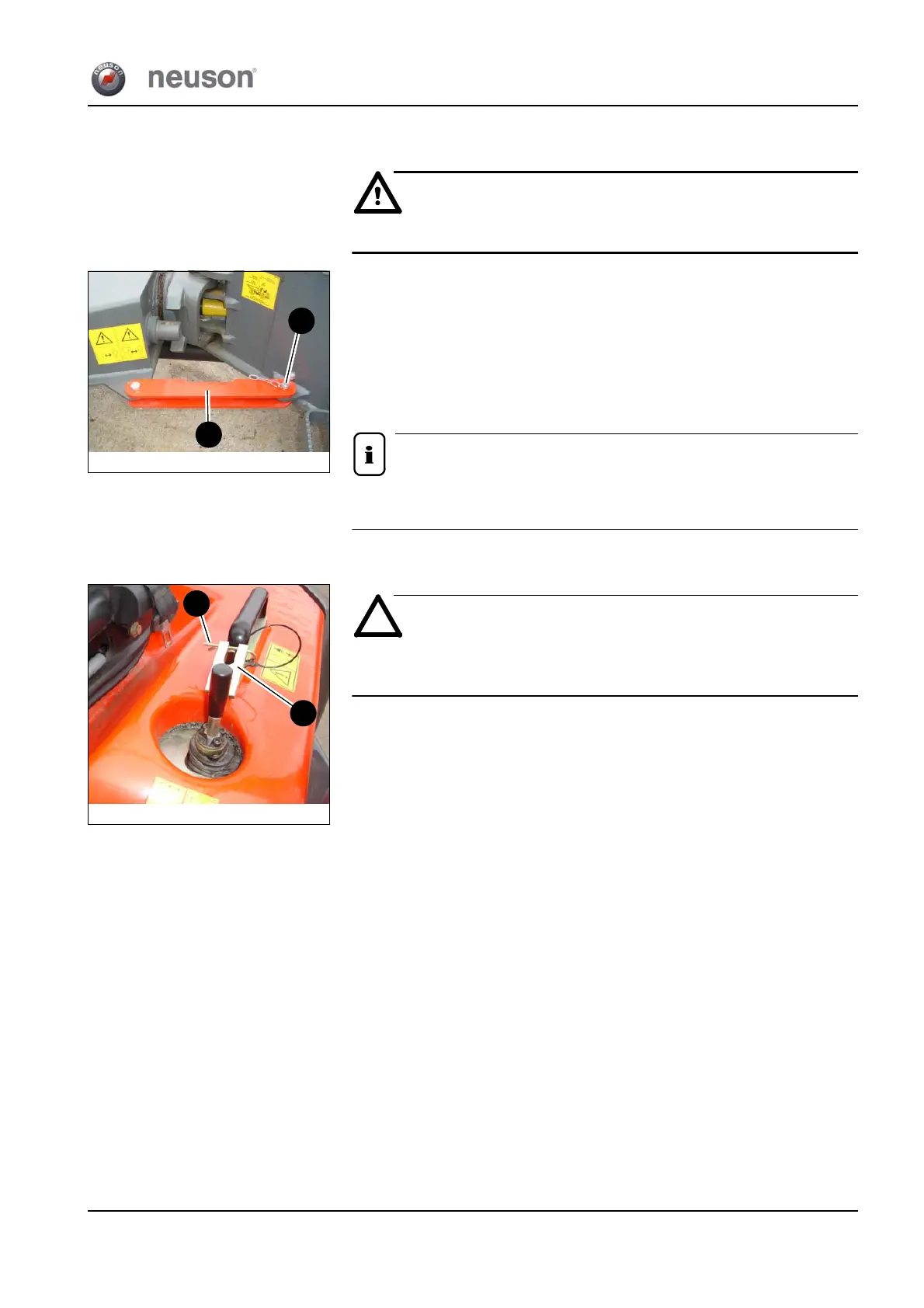

Fig. 42: Centre pivot prop
A
B
Fig. 43: Locking the control levers
A
B
