6.9 Electric system
Fuse box
Electric system
Alternator 12 V 40 A
Starter 12 V 1.4 kW
Battery 12 V 88 Ah

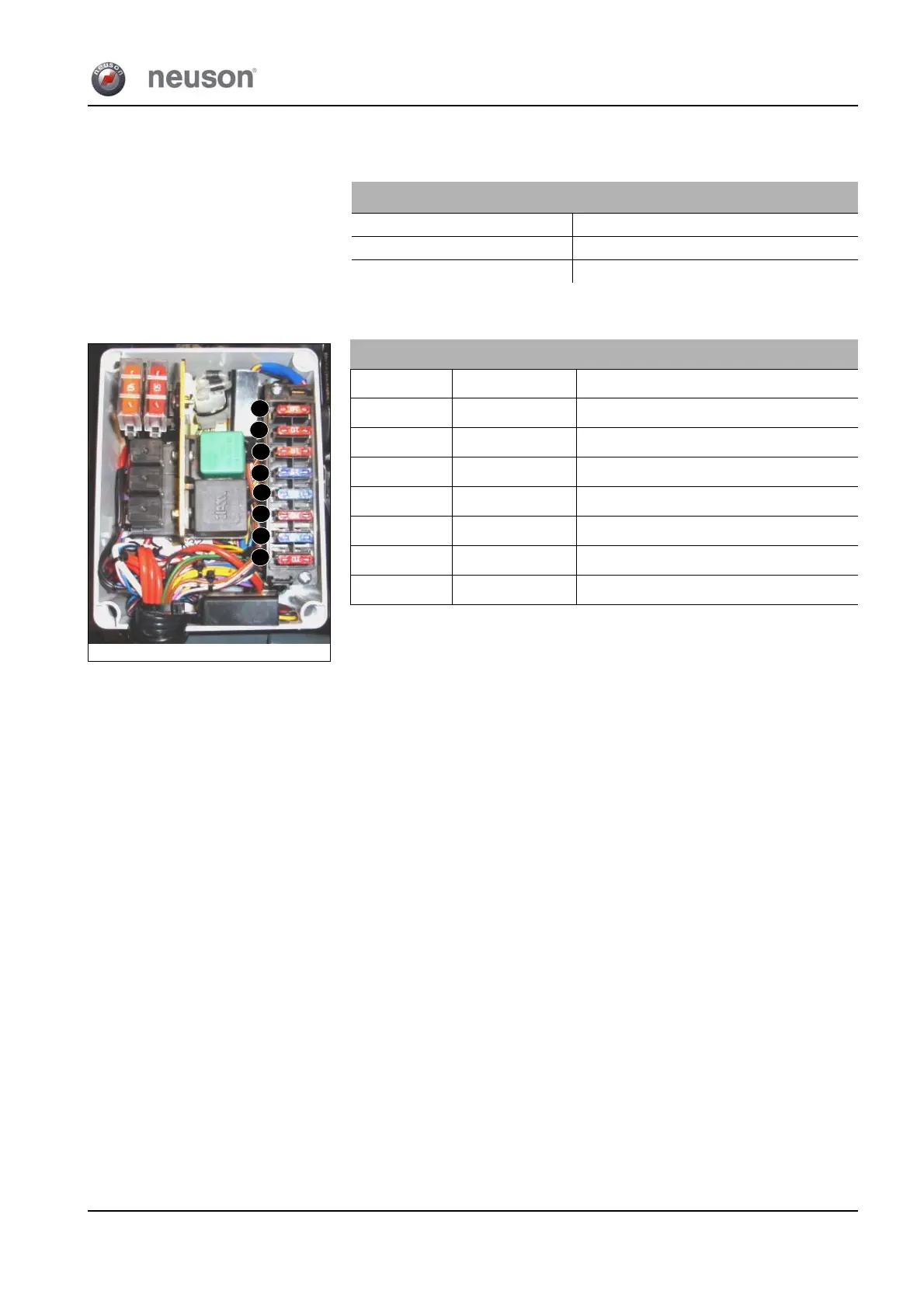

Fig. 43: Fuse box
F3
F4
F5
F6
F7
F8
F9
F10
Fuse number Rated current (A) Protected circuit
F 3 10 A – Cutoff solenoid, cutoff solenoid time lag relay
F 4 15 A – Drive solenoid valves
F 5 10 A – Horn, brake lights
F 6 15 A – Turn indicators
F 7 15 A – High beam
F 8 10 A – Low beam
F 9 10 A – Position light
F 10 10 A – Hazard warning system
