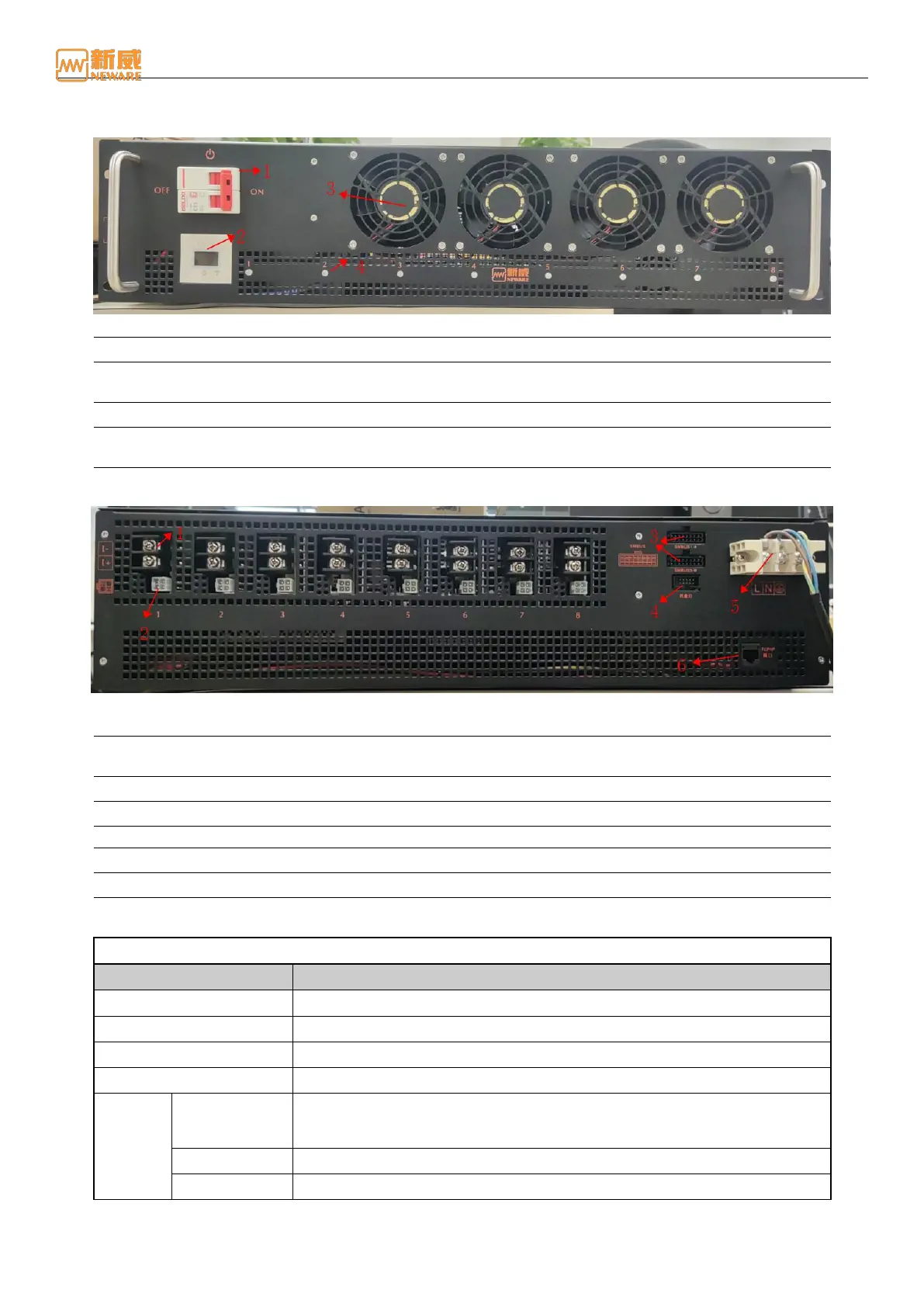

CE-5008-20V30A is been used as an example to describe the basic device information. The following figure shows the front
panel:
Figure 2-3 CT-5008-20V30A Front view
1 Power switch
Equipment starter/closer
2 Device Number
display screen
Displays the device channel number
3 Radiator fan
Heat dissipation for equipment
4 Channel indicator
The green light indicate charging, the red light indicate discharging, and the yellow
light indicate rest (you can even customize the color according to your needs).
CT-5008-20V30A back figure:
Figure 2-4 CT-5008-20V30A back appearance figure
1 High current
socket
Current line terminal I+ I-
2 Voltage terminal
VH Socket, V+ V-
3 SMBUS port
Battery communication port connection
4 Tray light port
Port of the tray channel light connection
5 Power supply
220V or 110V power supply
6 Net port TCP/IP
Connect with PC through network cable
CT-5008-20V30A specification (Form 5):
Specification
Items
Parameters
Input power source
AC:220V +10% / -20% / 50Hz
Input power
6400W(3 inverter)
Resolution
AD: 16bit DA: 16bit
Input resistance
≥1MΩ
Voltage
Output
range/channel
Charge: 2.5V~20V
Discharge:2.5V~20V
Accuracy
± 0.02% of range(full range)
Stability
0.025%
