Chapter 2 High Accuracy Tester
This chapter is introduced the standard BTS9 battery test equipment.
2.1. BTS9000
The channel of the BTS9000 mid-machine comes with the test channels, which can be used simultaneously to implement
the mid/lower-machine functions, which are mainly used for high-precision battery testing. The sampling frequency can
reach 1000Hz. The minimum test range is in μA level. The equipment can support 40 channels and offline operation.
support cycle life test, over-charge/over-discharge test of GSM pulse test, DC internal resistance DCIR test, HPPC test, etc.
Battery sorting, and consistency evaluation are supported.
BTS9000 series models as Form2 below:
Form 2 BTS9000 model features
2 channel high accuracy tester
4 channel high accuracy tester, supports pulse mode
8 channel high accuracy tester
40 channel high accuracy tester, supports pulse mode
The following content use the BTS9004 as an example to describe the basic information about the device. The following
figure shows the front panel:

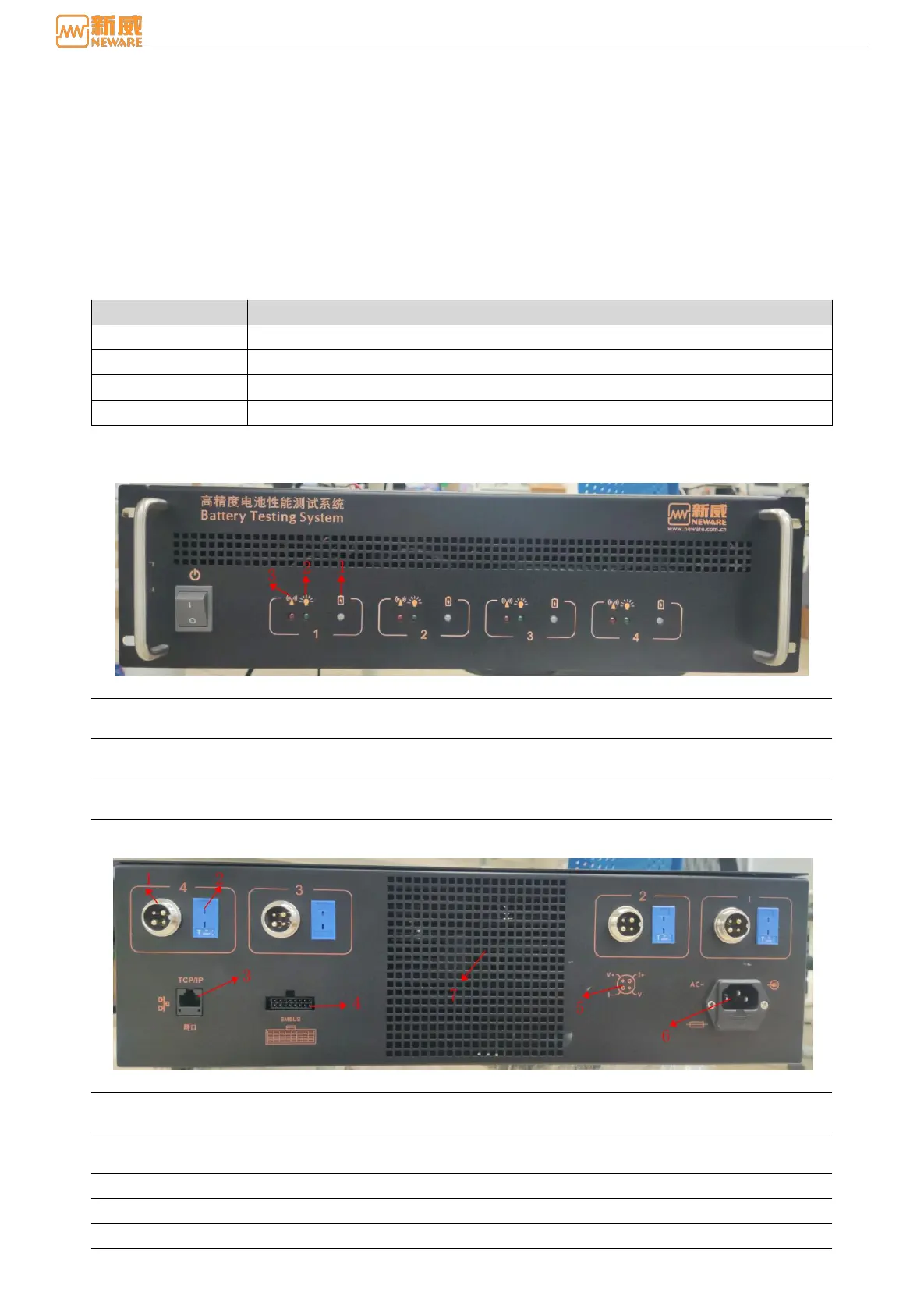

Figure 2-1 BTS9004 front panel
1 Channel status
indicator
The green light means charge, the red light means discharge, and the yellow light
means rest (you can customize the color according to the your needs).
2 Channel connection
indicator light
If the channel is connected, the indicator will flash once.
If the red light blinks, the network is normal connected, if the red light is off, the
network is disconnected.
Figure 2-2 shows the rear panel of the BTS9004
Figure 2-2 BTS9004 back appearance
Able to connect different battery clamps
Connect the thermocouple for measuring temperature, T type thermocouple, K type
thermocouple, and so on according to your needs.
Connect to PC through network cable
Socket for battery communication.
Description of the channels’ sequential connection
