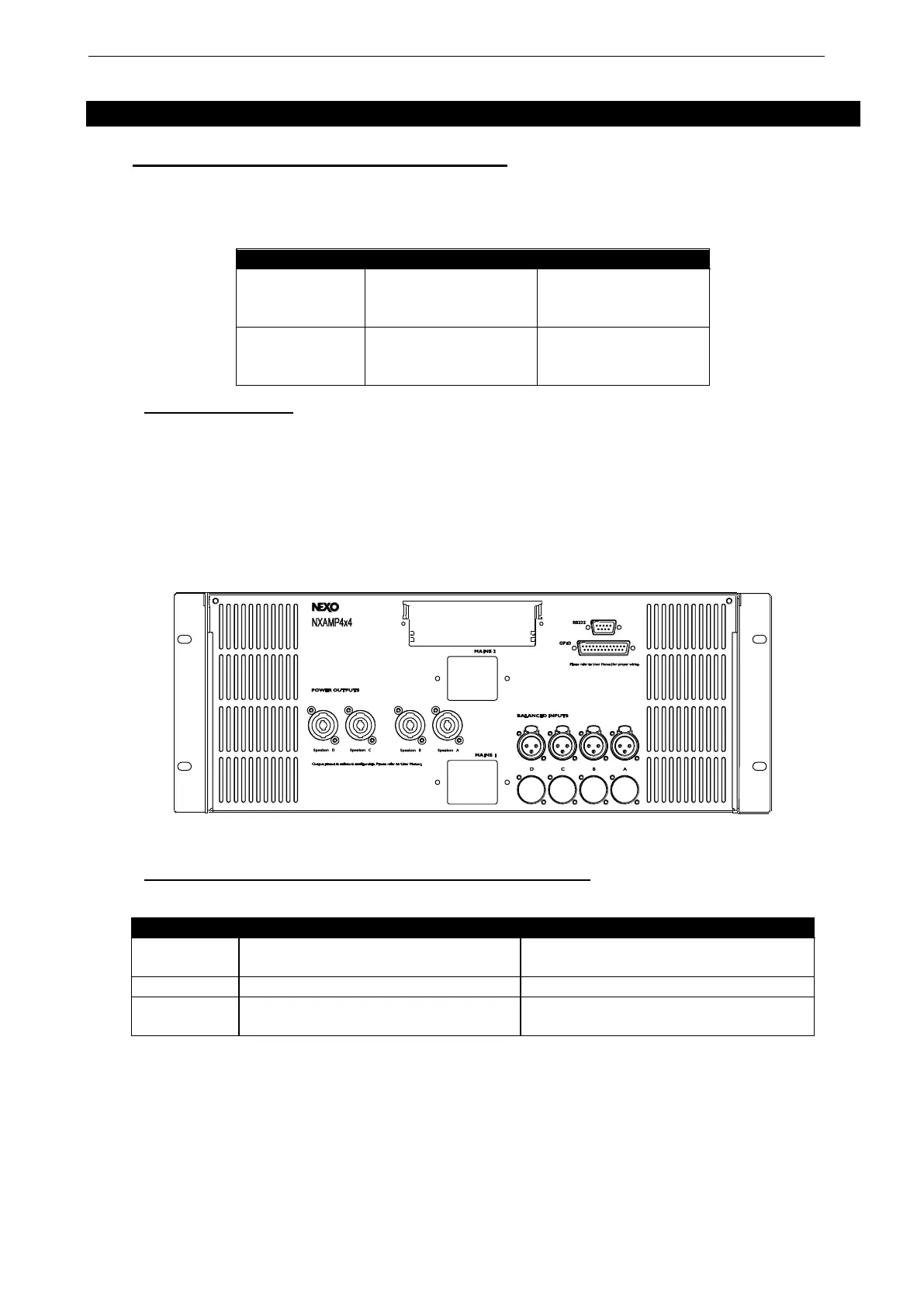

AMPLIFIER SELECTION FOR USE WITH GEO S12 & LS18 Page 15/106
3 AMPLIFIER SELECTION FOR USE WITH GEO S12 & LS18
3.1 GEO S12, LS18 and NXAMP TDControllers
NEXO Powered TDControllers NXAMP 4X1 & 4X4 are integrated solutions for Control and amplification
for all NEXO speaker ranges.
NXAMP4x1 and NXAMP4x4 power capability is listed in the table below:
Mode
4 Channels
Bridge Stereo
NXAMP4x1
4 x 600 Watts / 8 Ohms
4 x 900 Watts / 4 Ohms
4 x 1300 Watts / 2 Ohms
2 x 1800 Watts / 8 Ohms
2 x 2600 Watts / 4 Ohms
NXAMP4x4
4 x 1900 Watts / 8 Ohms
4 x 3300 Watts / 4 Ohms
4 x 4000 Watts / 2 Ohms
2 x 6600 Watts / 8 Ohms
2 x 8000 Watts / 4 Ohms
3.1.1 NXAMP connectors
NXAMP4x1 and NXAMP4x4 rear panels feature:
4 analog inputs / outputs (links) on XLR3 connectors;
4 digital inputs / outputs on RJ45 connectors with optional NX-ES104 card;
4 speaker level outputs on NL4FC connectors.
Figure below shows connectors implementation on the rear panel.
3.1.2 GEO S12, LS18 and NXAMP recommended configurations
Passive Mode
Active Mode
3 x GEO S12
1 channel of NXAMP4x1 in Bridge Stereo Mode
1 channel of NXAMP4x4 in 4 channels mode
2 channels of NXAMP4x1 in Bridge Stereo Mode
2 channels of NXAMP4x4 in 4 channels mode
4 x GEO S12
1 channel of NXAMP4x4 in 4 channels mode
2 channels of NXAMP4x4 in 4 channels mode
2 x LS18
1 channel of NXAMP4x1 in Bridge Stereo Mode
1 channel of NXAMP4x4 in 4 channels mode
