GEO S12 HARDWARE SETUP PROCEDURE Page 57/106
8.4.7 Two or more GEO S12 flown vertically
Required items
N Pair of Rigging Plates (GPT-XBOW) for N cabinets;
1 lifting ring (VNT-XHBRK) every two GEO S12;
4xN Quick release pins for N cabinets;
Properly rated slings, shackles, hoists… (not provided)
IMPORTANT
Lifting ring VNT-XHBRK and truss hook VNT-TCBRK are rated for a maximum of 2 GEO
S12s;
Ensure that suspension points are rated accordingly.
Procedure

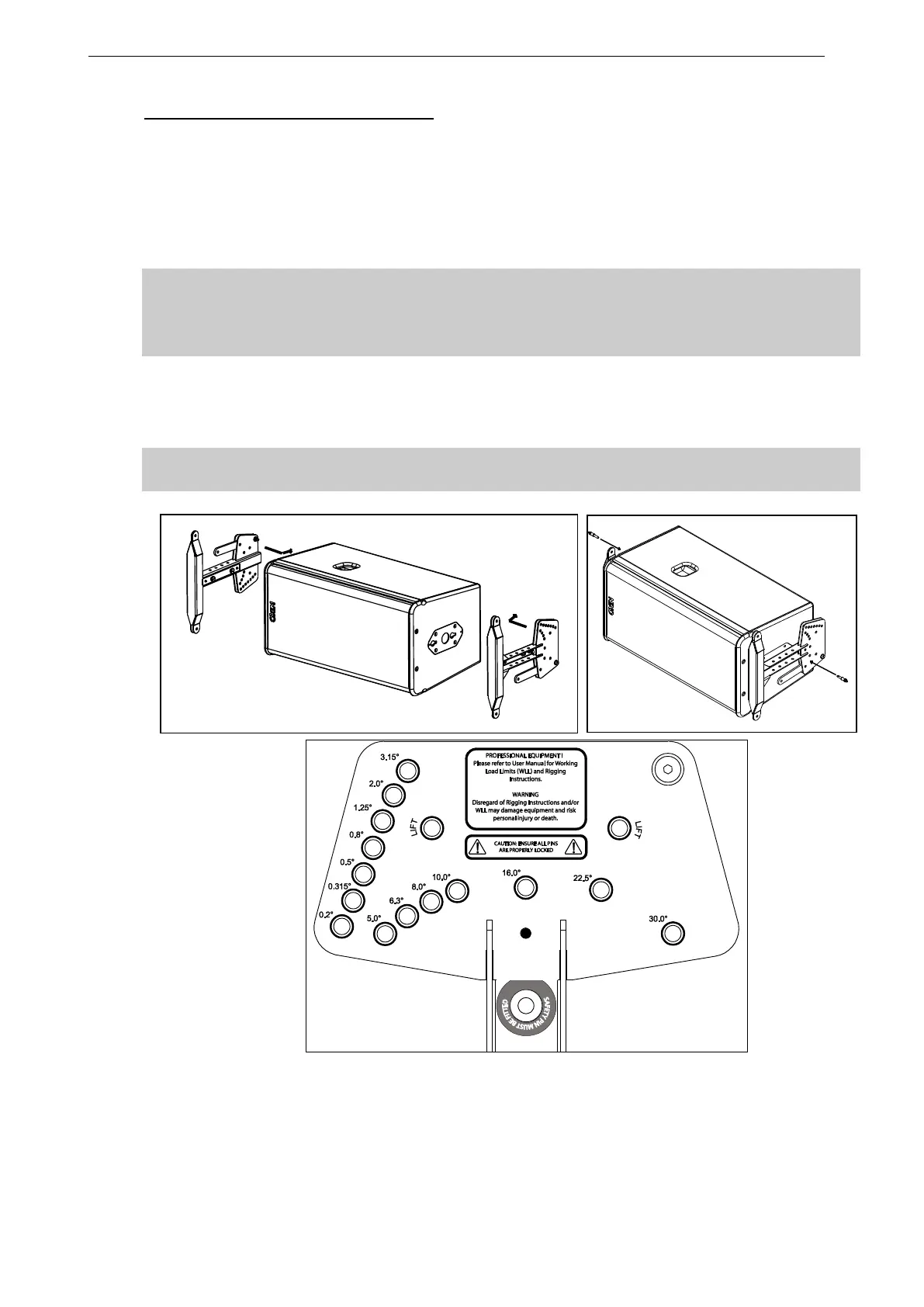

Insert GPT-XBOW into connecting plates of both sides of the cabinet;
Lock safety pins into GEO S12s connecting plate;
IMPORTANT
Ensure that safety pins are properly locked into GEO S12s connecting panels.
