Page 46/106 GEO S12 HARDWARE SETUP PROCEDURE

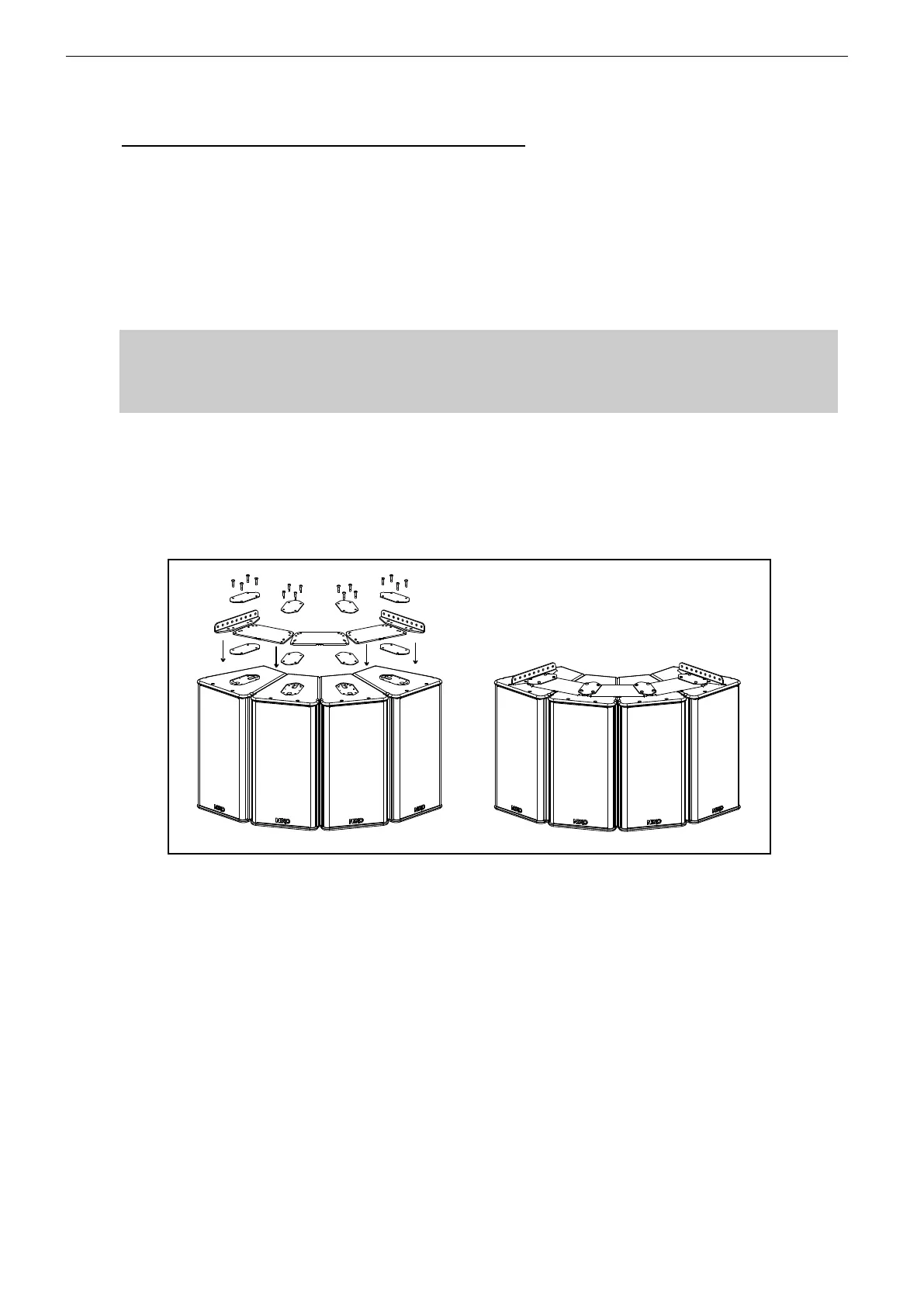

8.3.8 GEO S12 horizontal array cable mounted on a ceiling
Required items
2 x VNI-LBRK (allows cable suspension for horizontal arrays, holes for cable suspension
are 10mm diameter);
(N-1) x GPI-ANPL for a N x GEO S12 array (ANPL1 ranges from 0.2° to 3.15°, ANPL2
ranges from 5° to 10°, ANPL3 ranges from 16° to 30°);
4 slings and 4 shackles (not provided).
IMPORTANT
Ensure that the ceiling is strong enough to hold 4 times GEO S12 cluster weight and that
the cables suspension system required fixing the cluster under the ceiling is properly
dimensioned.
Procedure
Proceed as in above section, VNI-LBRK being positioned on the outer cabinets instead of
VNI-ABRK.
4 slings and 4 shackle (not provided) are required to secure the cluster under the ceiling;
