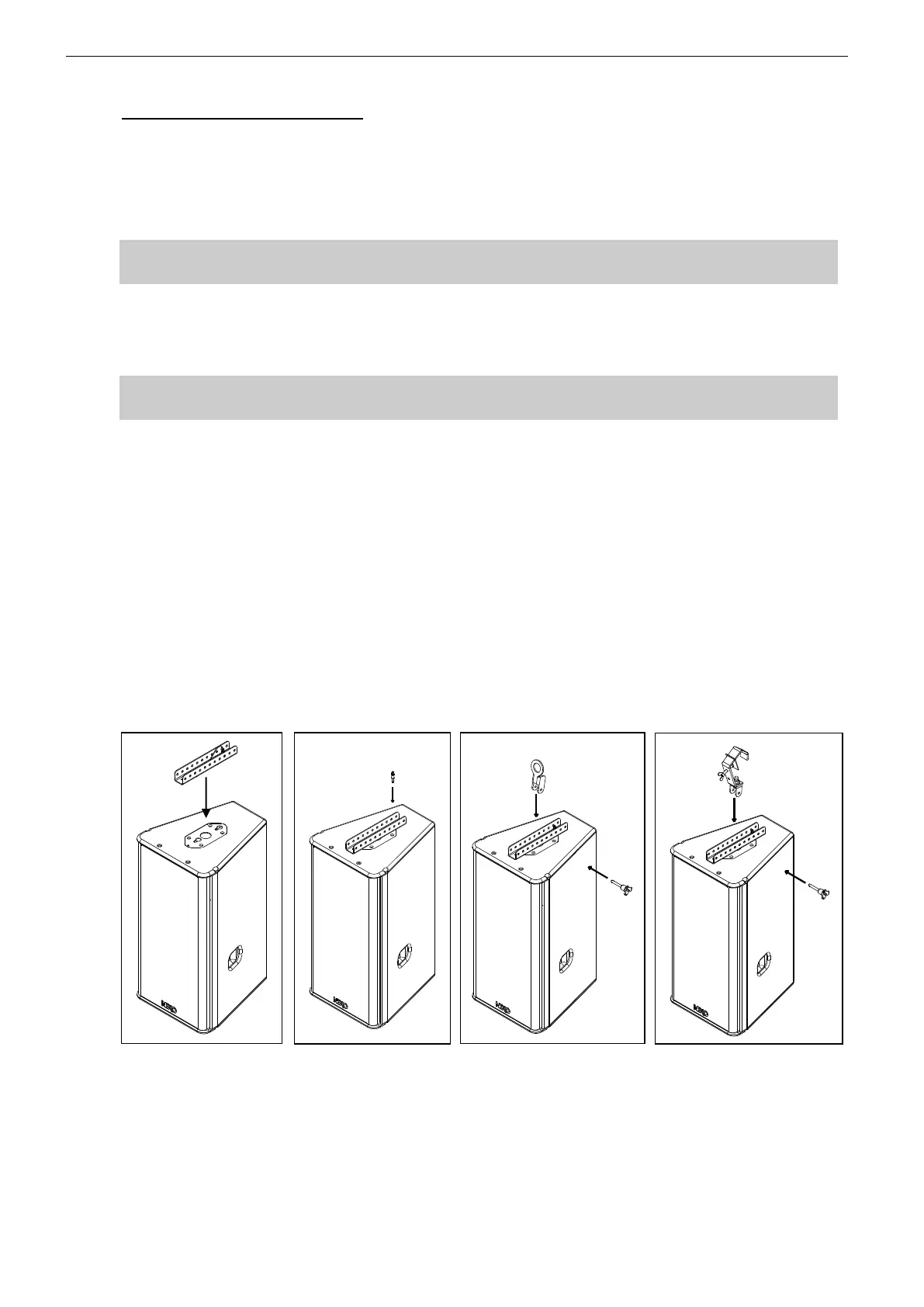

8.4.3 Single GEO S12 flown vertically
Required items
 1 x Flying Bar for single vertical GEO S12 (VNT-TTC)
 1 x Lifting Ring (VNT-XHBRK)
 Or 1 x Truss hook (VNT-TCBRK)
IMPORTANT
Ensure that truss suspension point is strong enough to hold GEO S12 weight.
Procedure
 Slide flying bar VNT-TTC into GEO S12 connecting plate oblong holes;
 Lock safety pin into GEO S12 connecting plate;
IMPORTANT
Ensure that safety pin is properly locked into GEO S12 connecting panel.
 Cable suspension:
 Connect lifting ring VNT-XHBRK to flying bar by inserting 8x45 quick release pin in
required holes for proper vertical aiming;
 Ensure lifting ring is properly locked to flying bar;
 Connect assembly to suspension point with sling and shackle (not provided).
 Truss suspension
 Connect truss hook VNT-TCBRK to flying bar by inserting 8x45 quick release pin in
required holes for proper vertical aiming;
 Ensure truss hook is properly locked to flying bar;
 Lift and position assembly, lock hook on truss suspension point and secure with hook
cable.
