8.3.3 Single GEO S12 cable mounted on a wall or a ceiling (vertical or horizontal)
Required items
 1 or 2 x VNI-LBRK (allows cable suspension, holes for cable suspension are 10mm
diameter);
 2 or 4 slings and corresponding shackles (not provided)
IMPORTANT
Ensure that the ceiling is strong enough to hold 4 times GEO S12 weight and that the
cable suspension system required to install the cabinet under the ceiling is properly
dimensioned.

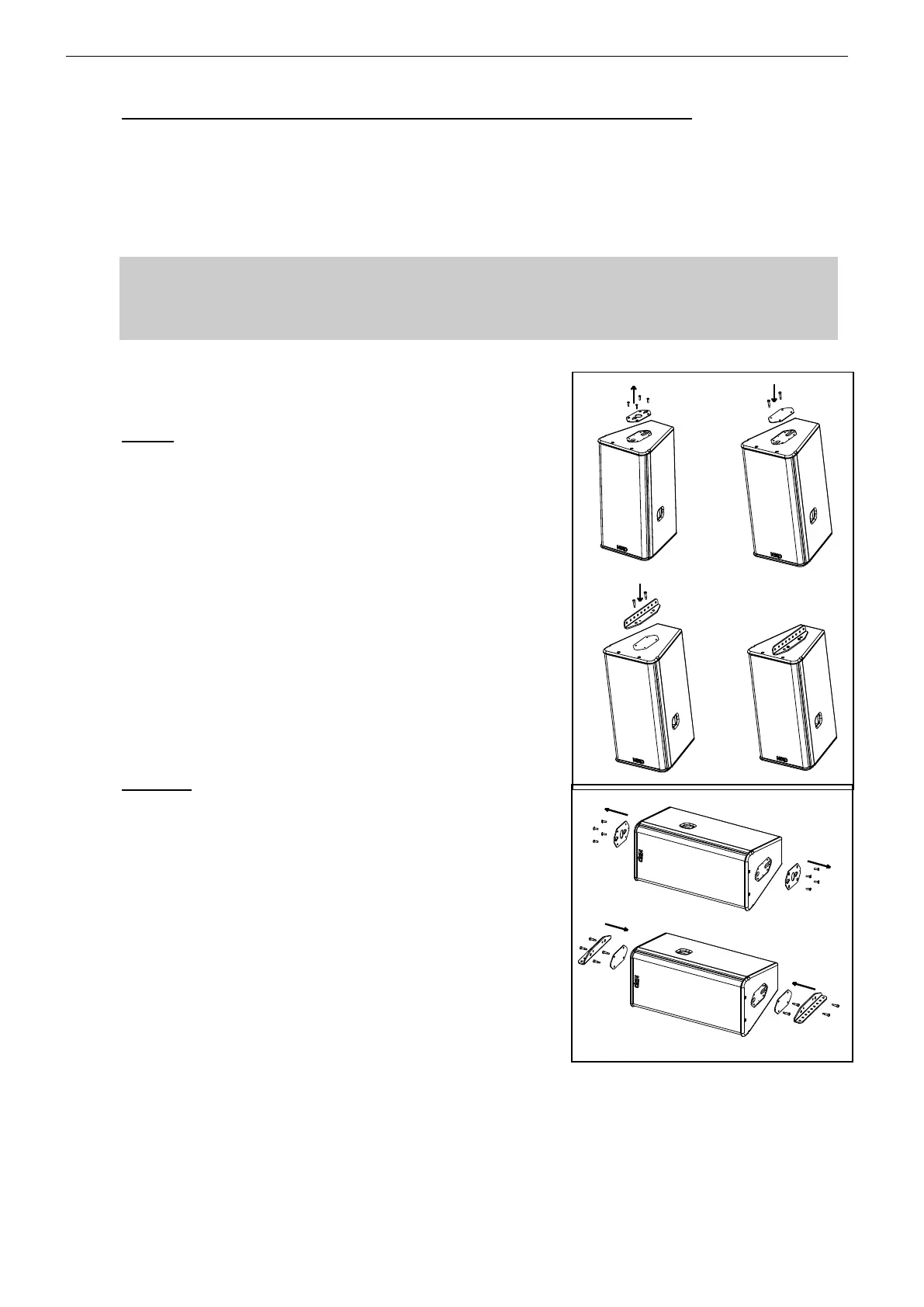

Procedure
Vertical
 Remove the four TORX screws holding
connector plate on upper side of GEO S12;
 Remove the connector plate from Geo S12;
 Apply Loctite 243 or equivalent to the 4
shoulder screws from VNI-LBRK;
 Position external plate from VNI-LBRK kit and
secure it using the 2 of the 4 shoulder screws;
 Position “L” bracket from VNI-LBRK kit, and
secure it to the cabinet using the 2 remaining
shoulder screws;
 Slings and shackles (not provided) are
required to secure the cluster under the
ceiling;
Horizontal
 Remove the four TORX screws holding
connector plates on both side of GEO S12;
 Remove the connector plates from Geo S12;
 Apply Loctite 243 or equivalent to the 4
shoulder screws from VNI-LBRK;
 Position external plates from VNI-LBRK kits
and secure them using the shoulder screws;
 Position “L” brackets from VNI-LBRK kits, and
secure them to the cabinet using the 4
remaining shoulder screws;
 Slings and shackles (not provided) are
required to secure the cluster under the
ceiling;
