Page 52/106 GEO S12 HARDWARE SETUP PROCEDURE
8.4.5 Two GEO S12 on wind-up stand
Required items
1 x U” Bracket for two GEO S12 (GPT-PSBRK)
1 x Wind Up stand diameter 35mm (Eurotruss ES160 or equivalent);
IMPORTANT (WIND UP STAND)
- Wind Up stand must be rated for assembly weight (80kg rated load min);
- Wind Up stand must always be installed on a horizontal surface;
- Stand height and footprint must be defined to prevent assembly from collapsing;

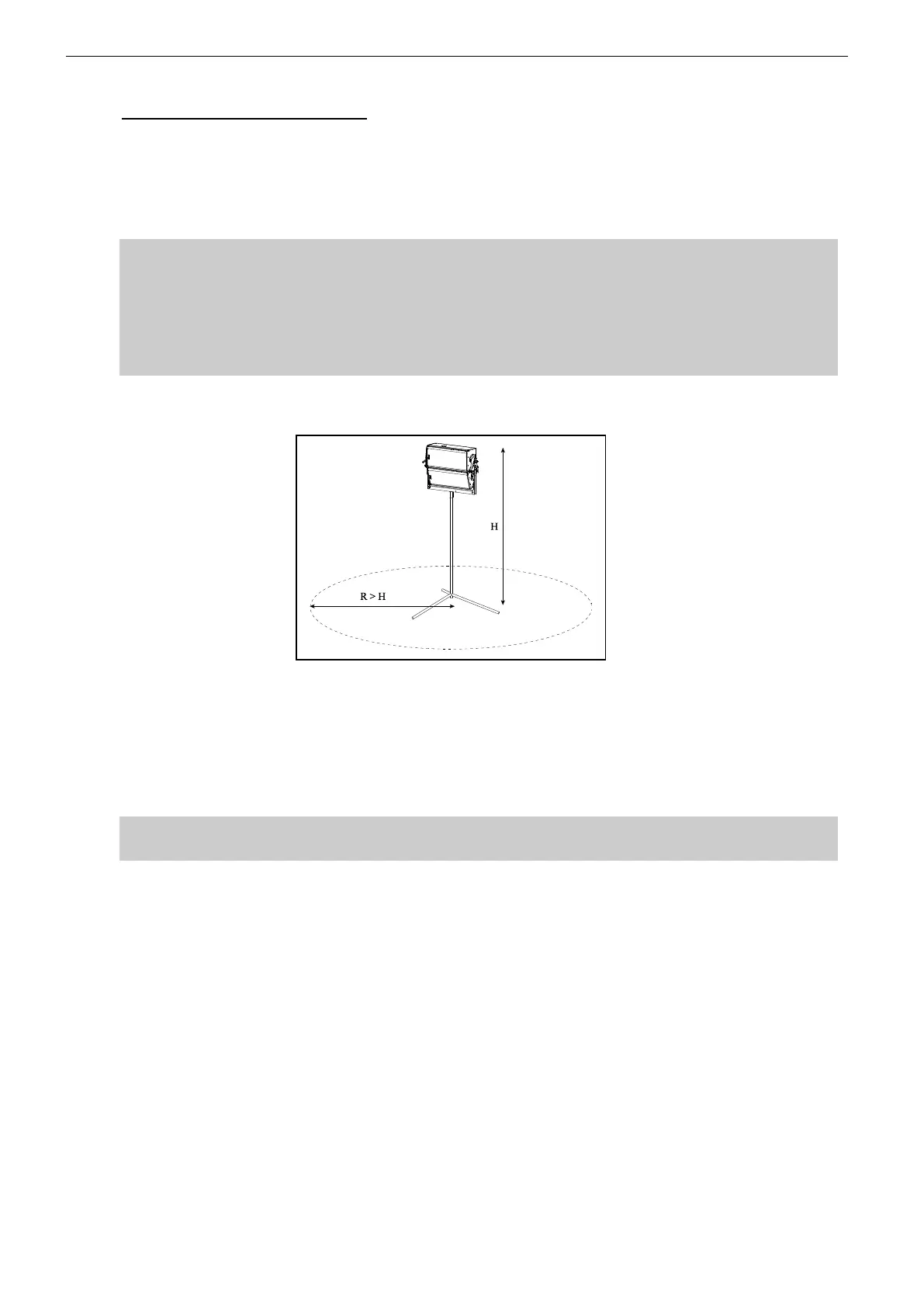

- Ensure that public is not allowed within a safety area which radius is equal or higher
than assembly height.
Procedure
Set the 2 GEO S12 next to each other front grid to the floor
Slide GPT-PSBRK side plates into GEO S12s connecting plate oblong holes;
Lock safety pins into GEO S12s connecting plate;
IMPORTANT
Ensure that safety pins are properly locked into GEO S12s connecting panels.
Adjust inter-cabinet angle and lock to required angle value with 8x20quick release pins;
Position “U” bracket over these side plates; align centre holes;
Insert adjustment handles, adjust vertical angle and tight the handles to prevent GEO
S12s from rotating around “U” bracket;
Lift assembly on Wind Up stand
